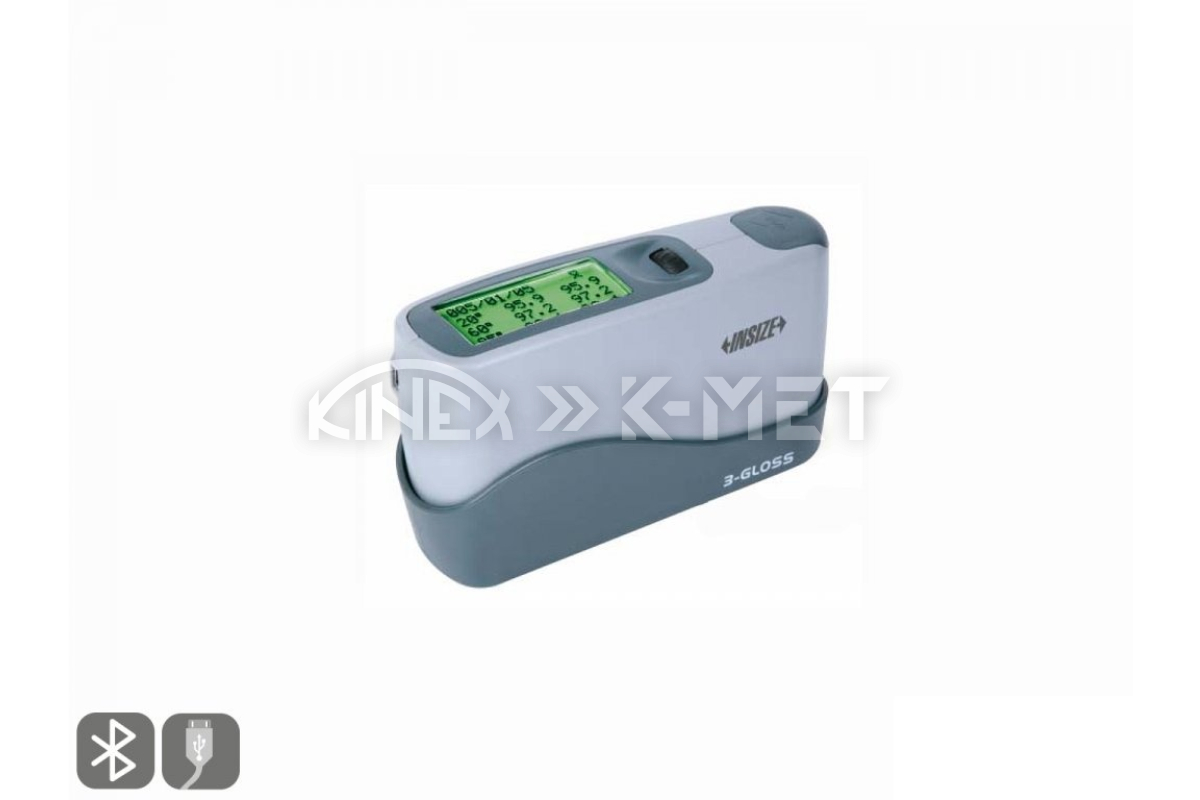

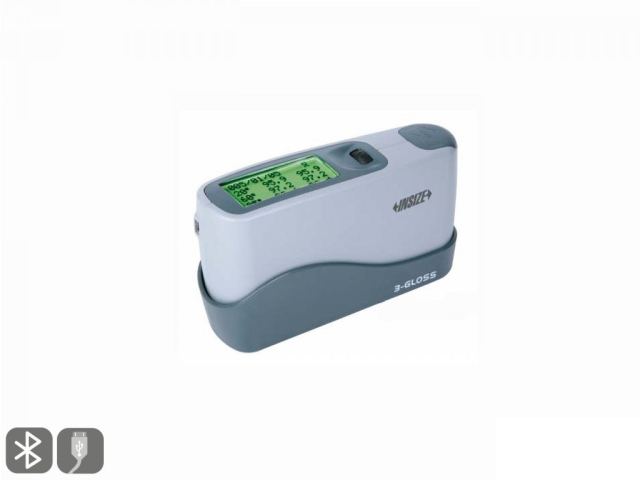

20°/60°/85° Gloss Meter ISQ-DG8 INSIZE (ISQ-DG8)
- Brand: INSIZE
- Product Code: INISQ-DG8
- EAN: 6928640377013
- Weight: 1,56 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 1,904.00 EUR
Inc. Tax: 2,341.92 EUR

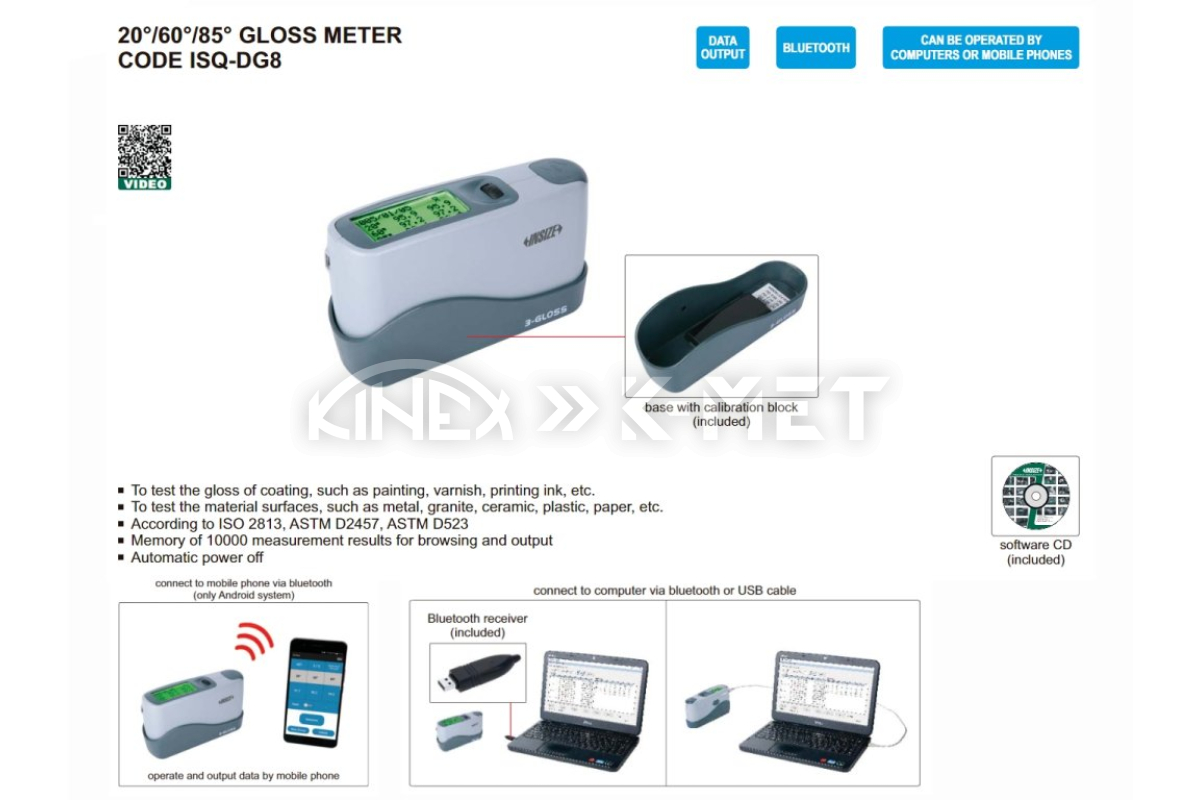

The ISQ-DG8 INSIZE gloss meter is designed for precise measurement of surface gloss. It has a memory for 10,000 measurements and measures at angles of 20°, 60°, and 85°, with data output via USB and Bluetooth.
- Measurement conforms to ISO 2813, ASTM D2457, ASTM D523 standards
- For testing the gloss of coatings such as paints, varnishes, printing inks, etc.
- For testing the surfaces of materials such as metal, granite, ceramics, plastic, paper, etc.
- Memory for 10,000 measurement results for viewing and output
- Automatic shutdown

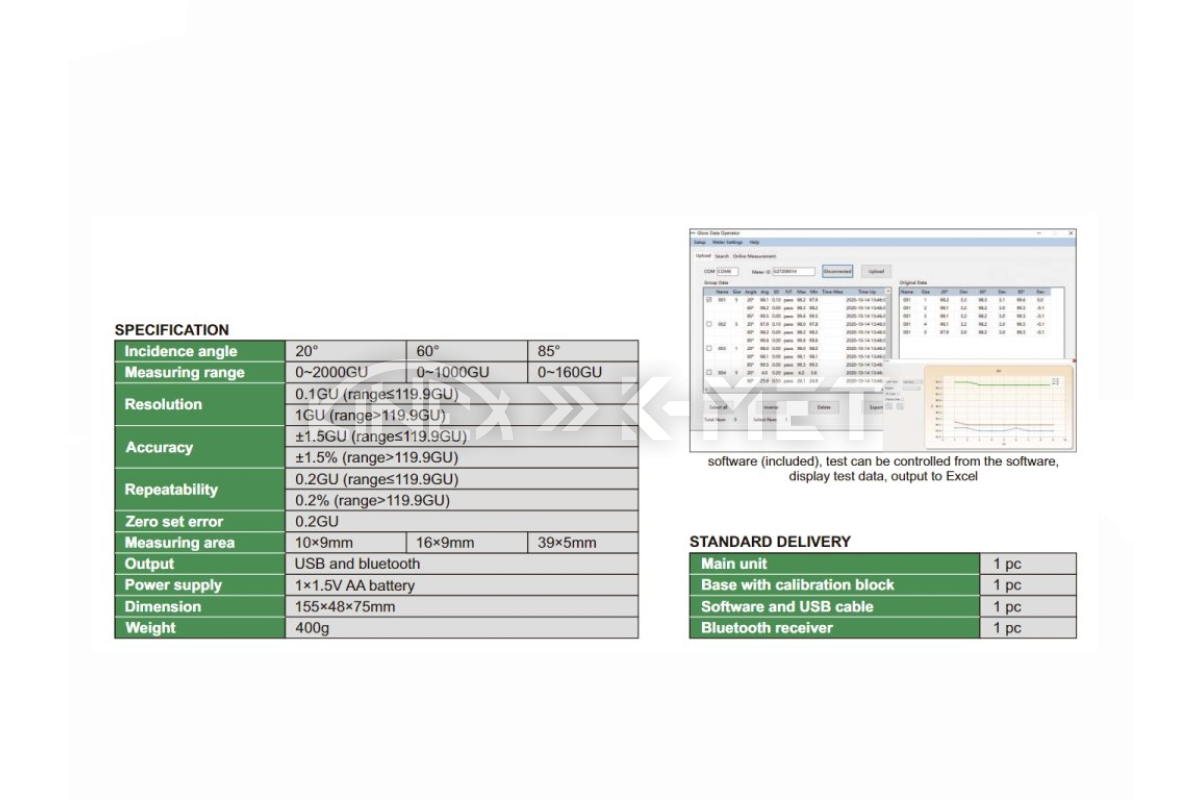

Technical Specification
Measuring Angle and Measuring Range
- 20°
- 0~2000 GU
- 60°
- 0~1000 GU
- 85°
- 0~160 Gu
Resolution
- 0.1 GU (range up to 119.9 GU inclusive)
- 1 GU (range above 119.9 GU)
Accuracy
- ± 1.5 GU (range up to 119.9 GU inclusive)
- ± 1.5 % (range above 119.9 GU)
Repeatability
- 0.2 GU (range up to 119.9 GU inclusive)
- 0.2 % (range above 119.9 GU)
Deviation in Reference Value Setting
- 0.2 GU
Measuring Area
- 20°
- 10×9 mm
- 60°
- 16×9 mm
- 85°
- 39×5 mm
Data Output
- USB
- Bluetooth
Power Supply
- 1×1.5V AA battery
Dimensions
- 155×48×75 mm
Weight
- 400 g
Package Contents
- Calibration base
- Software and USB cable
- Bluetooth receiver
