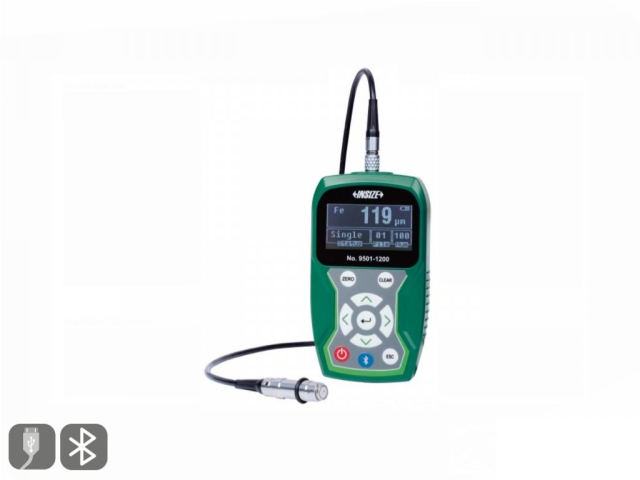

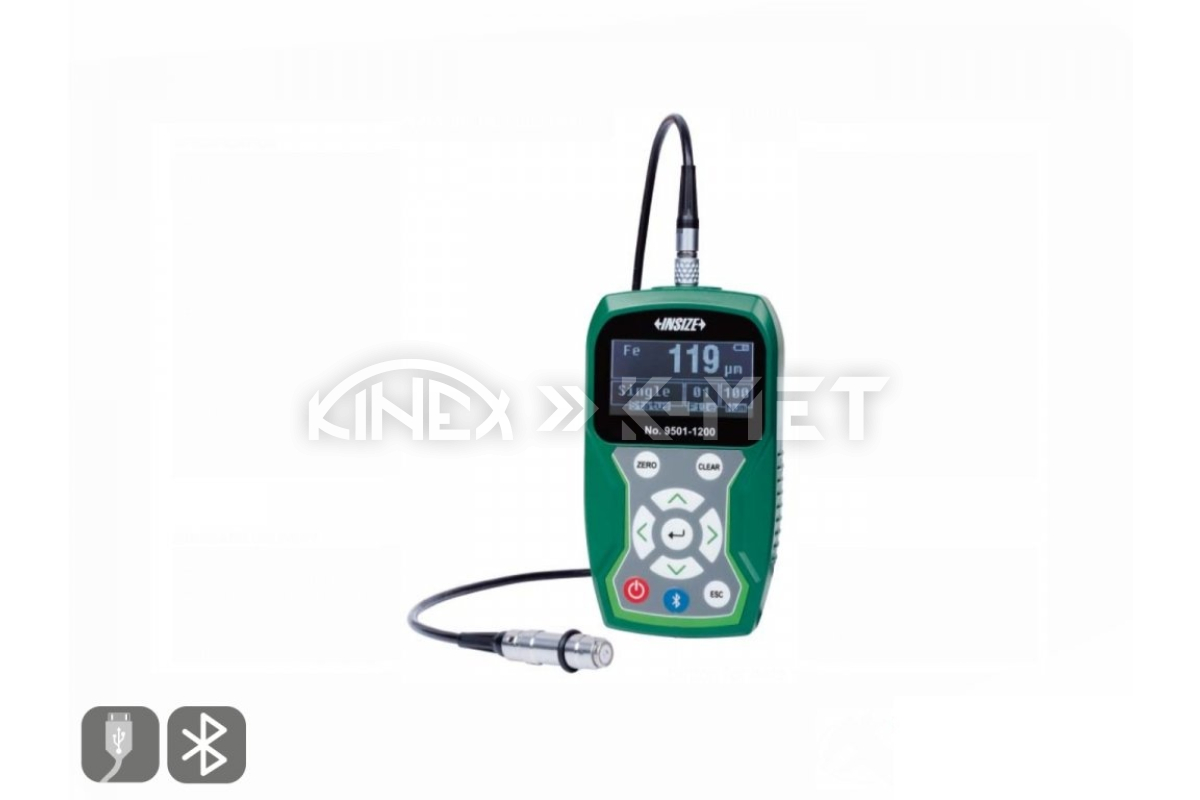

9501-1200 Coating Thickness Gauge INSIZE (9501-1200)

New design of the proven model with extended functions (larger memory, possibility to connect BT printer).

• Magnetic FE inductive probe measures the thickness of non-magnetic coatings on magnetic substrates
• Tolerance measurement
• Data output via USB possible
• Connection to printer via Bluetooth
• Automatic shutdown
• Option to purchase additional probes for other measurement types

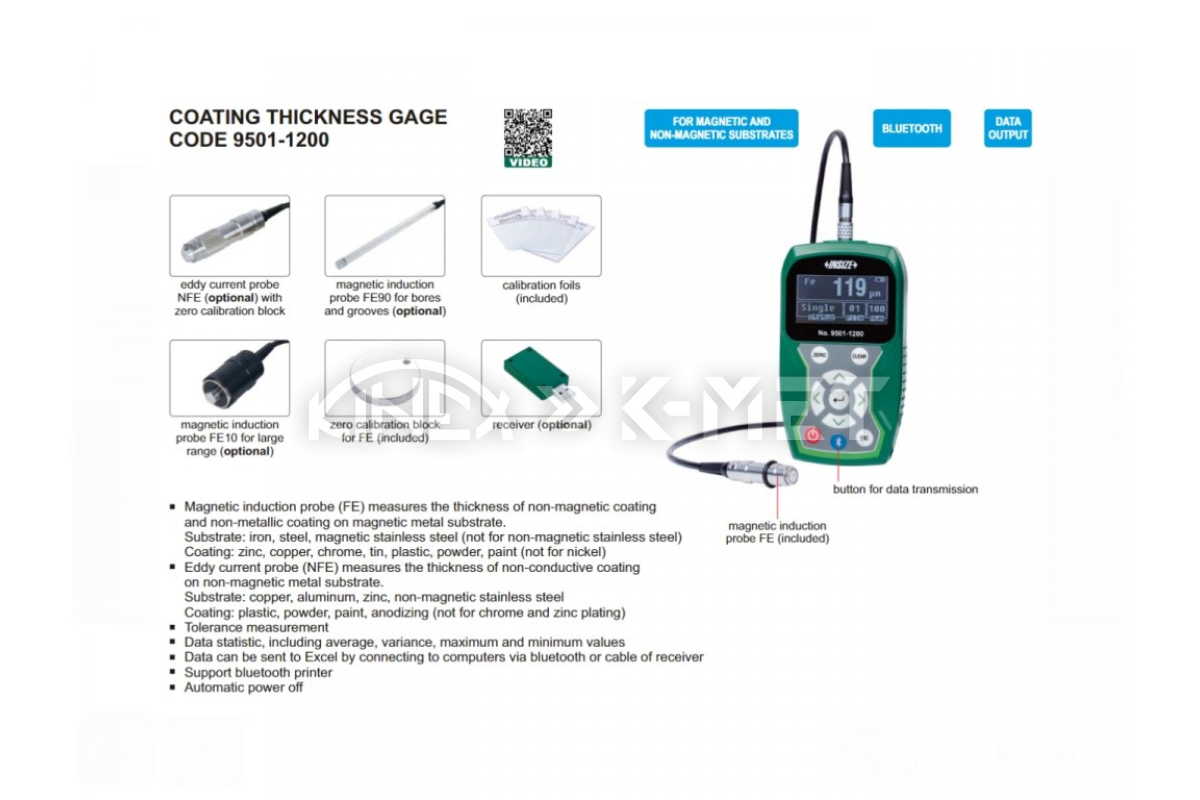

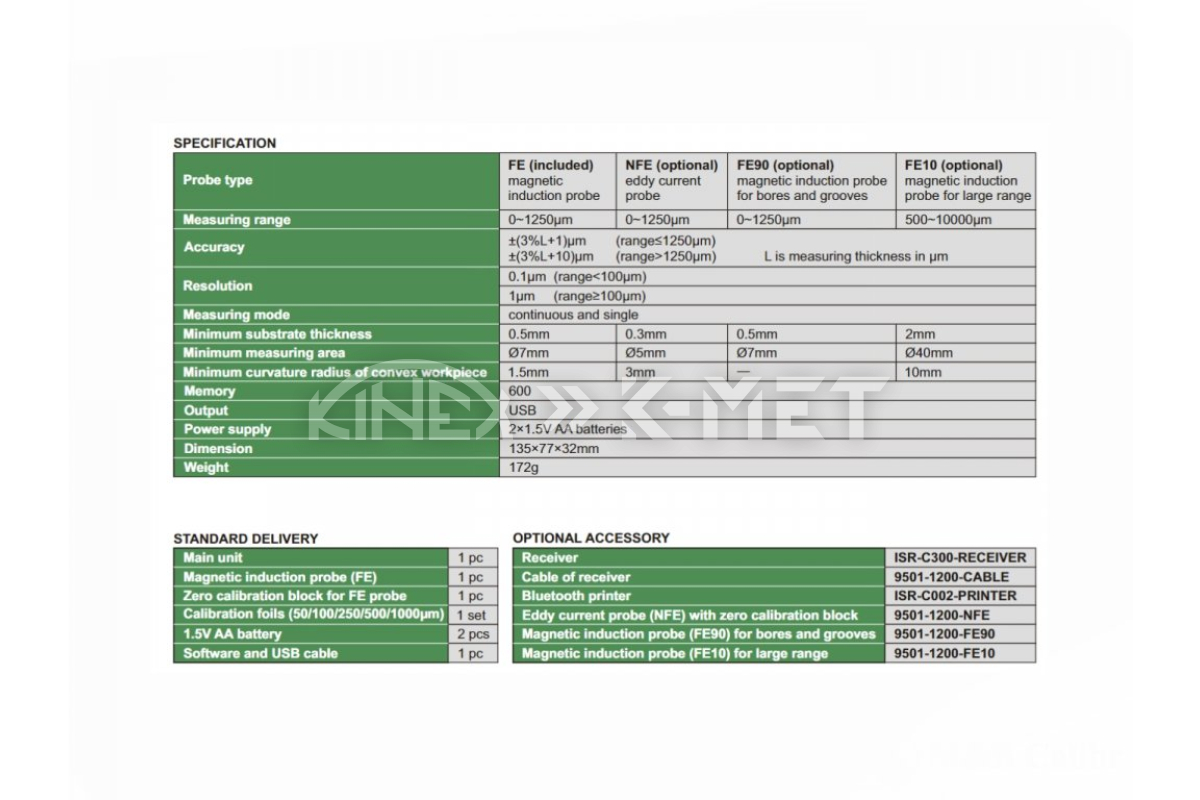

Technical specification

Types of supported surfaces

• Zinc, copper, chromium, tin, plastic, powder coating, paint in general (excluding nickel)

Types of supported substrates

• Iron, steel, magnetic stainless steel (not non-magnetic stainless steel)

Probe type

• FE
• Magnetic
• Inductive

Other connectable probes NFE, FE90, FE10 see accessories

Measuring range

• 0-1250μm
• 0-1250 μm (with NFE probe)
• 0-1250 μm (with FE90 probe)
• 500-10000 μm (with FE10 probe)

Accuracy

• ±(3%L+1) µm (L is the measured thickness in µm)

Resolution

• 0.1 µm for (range < 100 µm)
• 1 µm for (range≥100 µm)

Measurement mode

• Single
• Continuous

Minimum substrate thickness

• 0.5 mm
• 0.3 mm (with NFE probe)
• 0.5 mm (with FE90 probe)
• 2 mm (with FE10 probe)

Minimum measuring area

• ø7 mm
• ø5 mm (with NFE probe)
• ø7 mm (with FE90 probe)
• ø40 mm (with FE10 probe)

Minimum radius of curvature of the convex measured part

• 1.5 mm
• 3 mm (with NFE probe)
• 10 mm (with FE10 probe)

Memory

• 600 records

Data output

• USB
• Bluetooth (to printer)

Power supply

• 2x AA batteries

Package contents

• INSIZE Coating Thickness Gauge
• Magnetic inductive probe (FE)
• Zero standard for FE probe
• Calibration foils (50, 100, 250, 500, 1000 μm)
• 1.5V AA batteries (2 pcs)
• Software and PC cable

Optional accessories

• Receiver (ISR-C300-RECIEVER)
• Data transfer cable (9501-1200-CABLE)
• Bluetooth printer (ISR-C002-PRINTER)
• (NFE) probe for eddy current measurement with zero standard (9501-1200-NFE)
• Magnetic inductive probe (FE90) for holes and grooves (9501-1200-FE90)
• Magnetic inductive probe (FE10) for larger range (9501-1200-FE10)

(the video shows an older design of the device)
