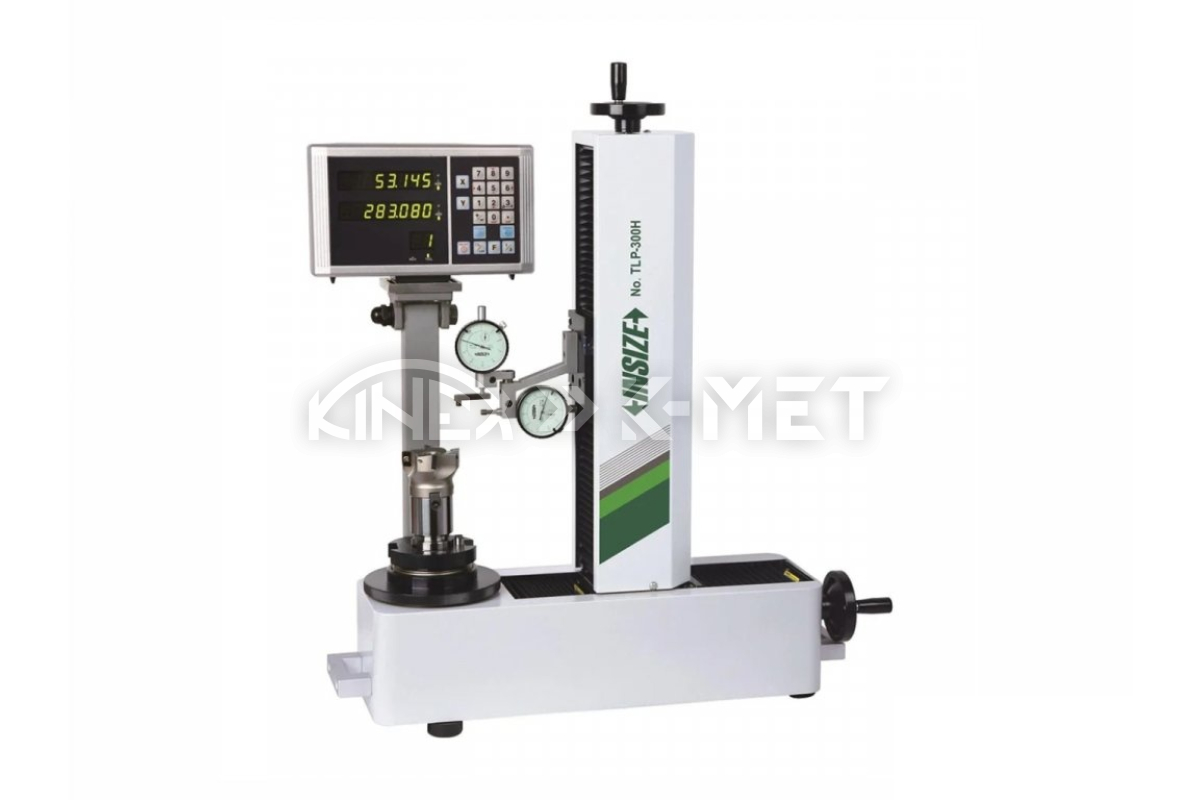

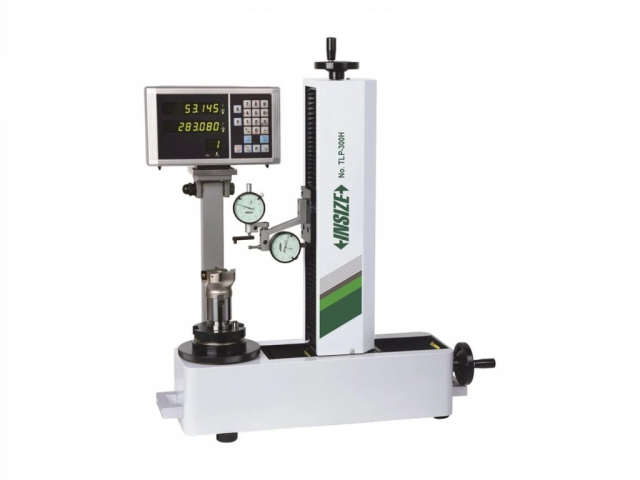

Alignment Scope TLP-300H INSIZE (TLP-300H)
- Brand: INSIZE
- Product Code: INTLP-300H
- EAN: 6928640376443
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 5,145.00 EUR
Inc. Tax: 6,328.35 EUR

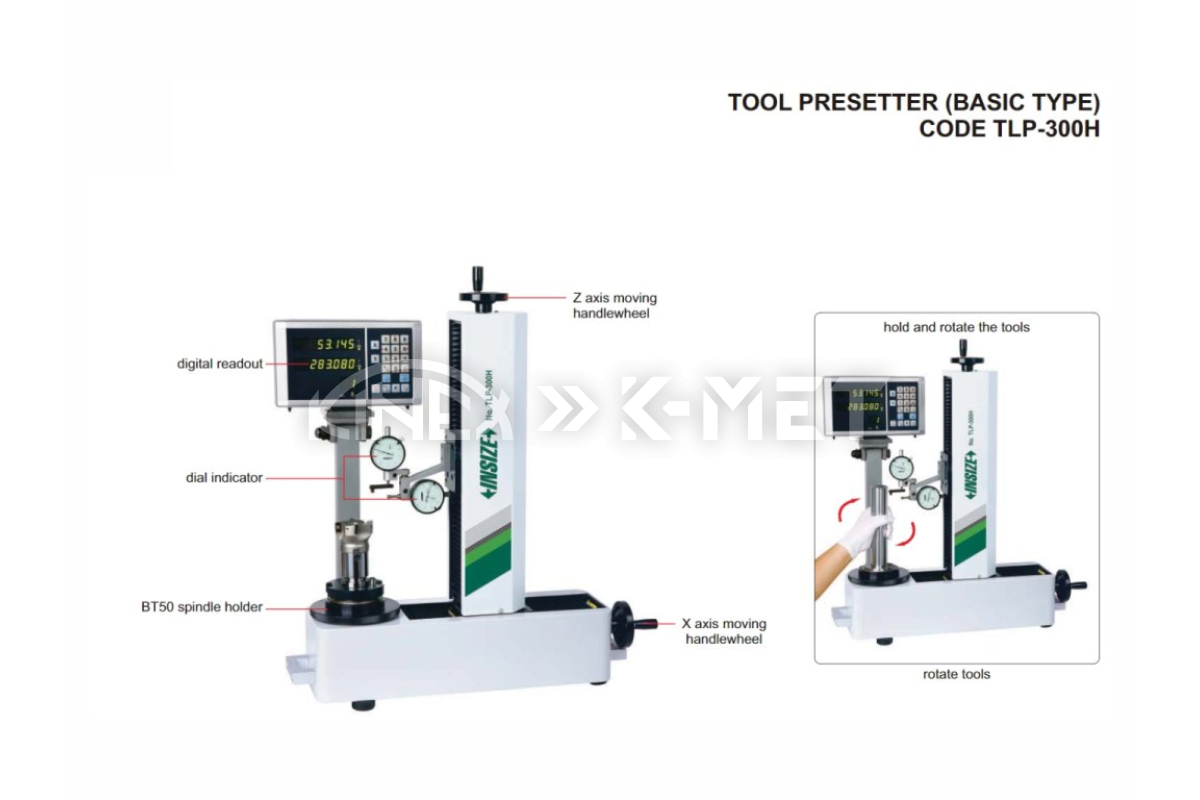

The TLP-300H alignment and inspection instrument from INSIZE with a Z-axis range of 60~300 mm for quick, easy, and accurate tool setting.
- Manual alignment tool for quick, easy, and accurate tool setting
- Linear scale with absolute graduation (no zeroing required)

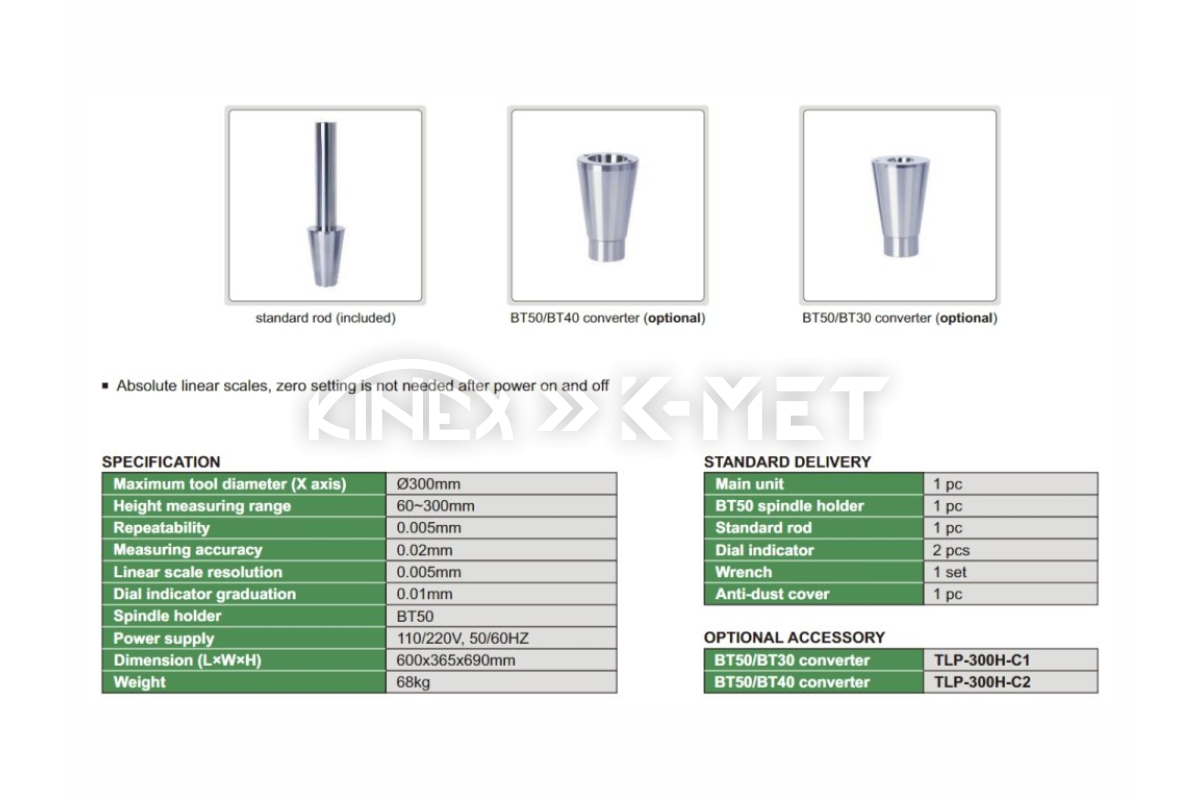

Technical Specification
Maximum tool diameter
- ⌀300 mm
Z-axis measuring range
- 60~300 mm
Repeatability
- 0.005 mm
Measuring accuracy
- 0.02 mm
Linear scale resolution
- 0.005 mm
Dial indicator scale division
- 0.01 mm
Spindle holder
- BT50
Power supply
- 110/220 V, 50/60 Hz
Dimensions (LxWxH)
- 600x365x690 mm
Weight
- 68 kg
Package contents
- Alignment Scope TLP-300H INSIZE
- Spindle holder BT50
- Standard spindle
- Dial indicator (2 pcs)
- Wrench
- Dust cover
Optional accessories
- BT50/BT30 converterTLP-300H-C1
- BT50/BT40 converterTLP-300H-C2
