Bore Gauge with Dial Indicator 18-160/10/0.01 mm INSIZE (2824-S3)
- Brand: INSIZE
- Product Code: IN2824-S3
- EAN: 6928640309977
- Weight: 2,69 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 225.00 EUR
Inc. Tax: 276.75 EUR

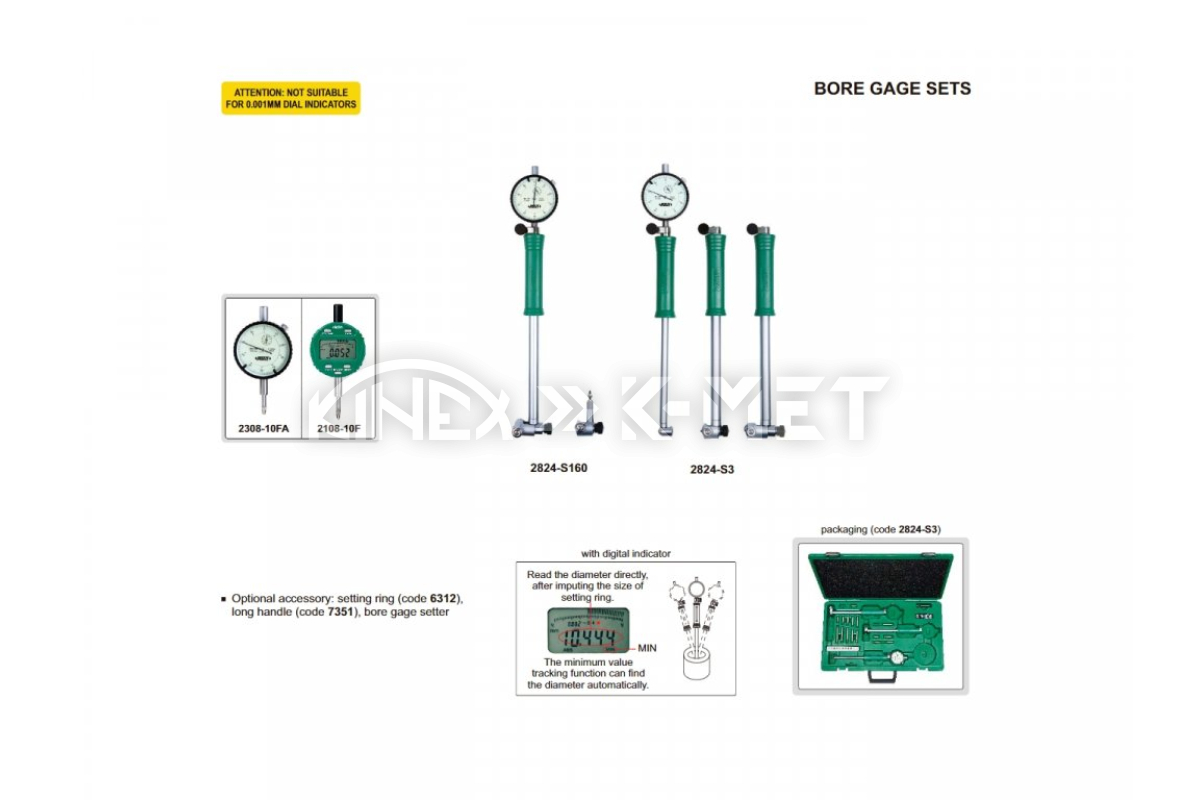

Bore gauge subito with a range of 18-160 mm from INSIZE with a dial indicator with a range of 10 mm and a scale division of 0.01 mm from INSIZE.
- Detachable dial indicator
- Not intended for dial indicators with a scale division of 0.001 mm

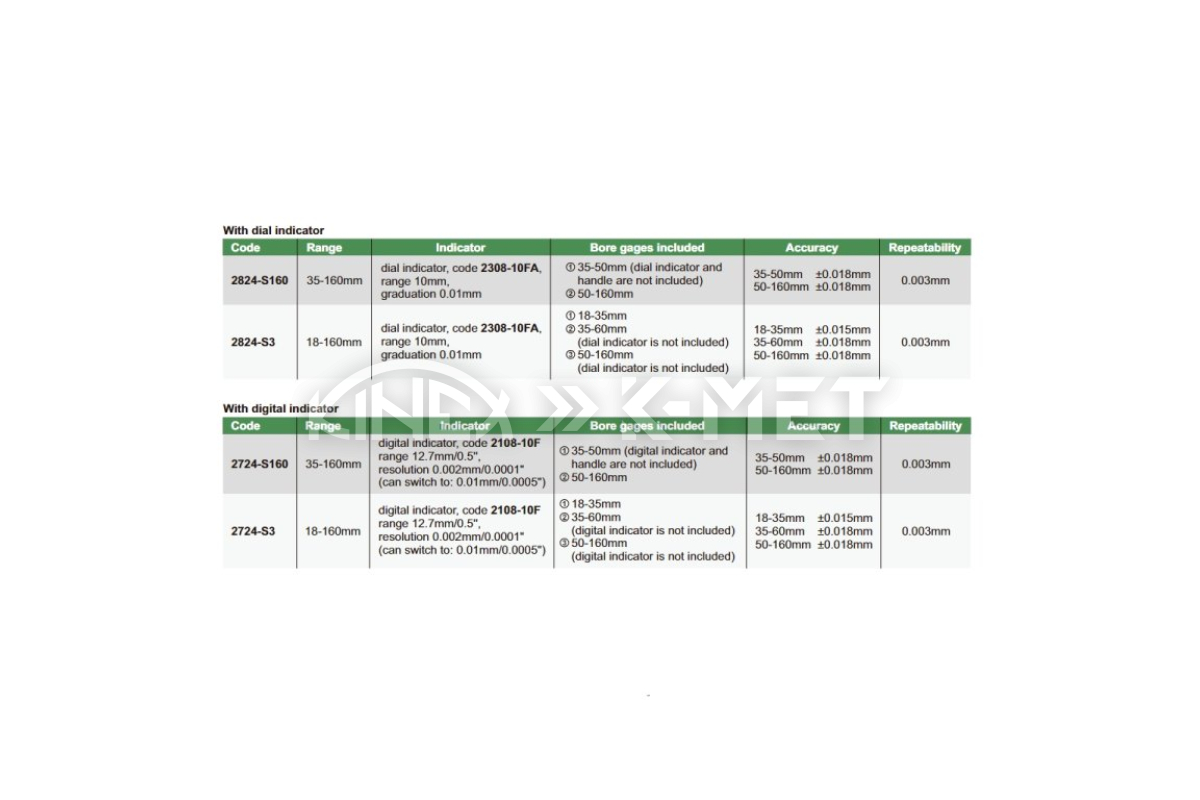

Technical specification

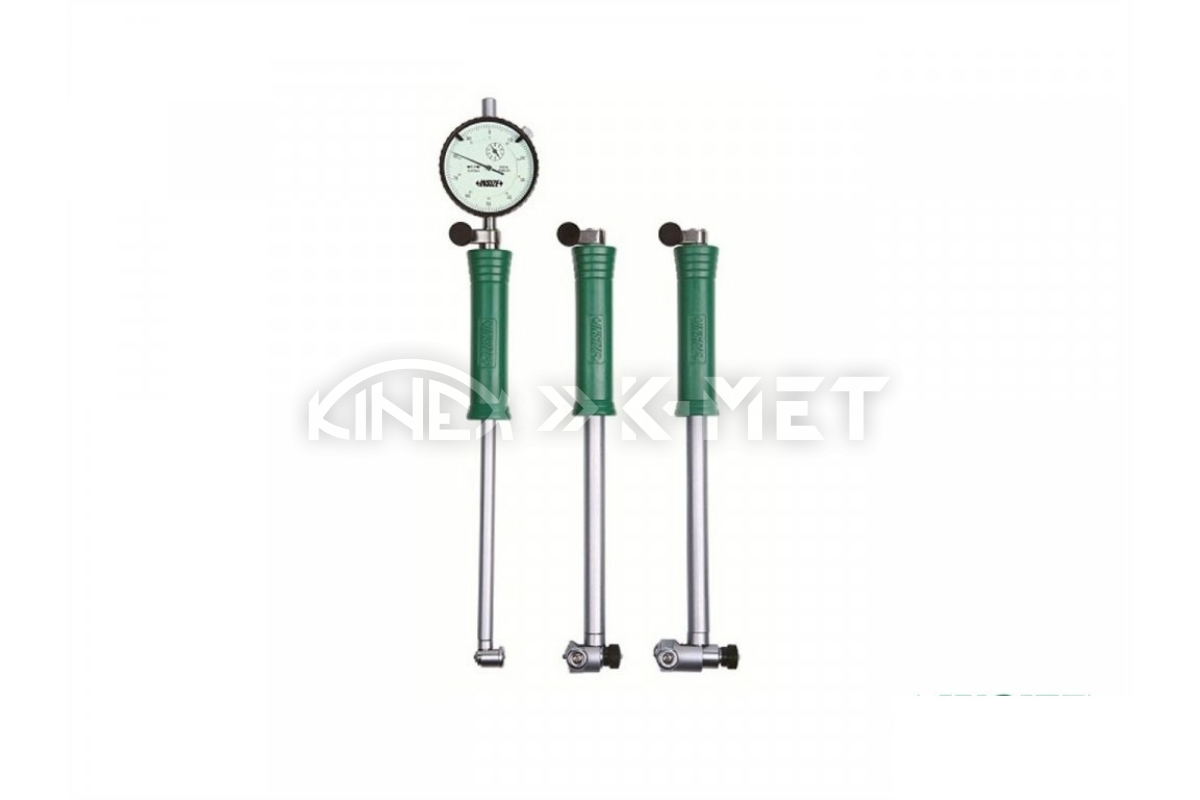

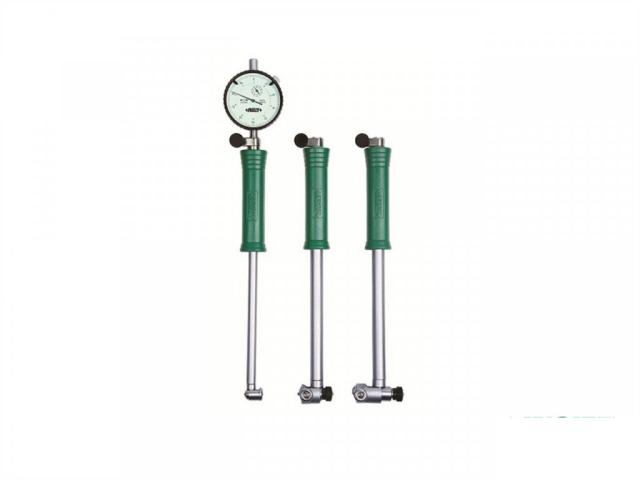

Bore gauge (package includes three measuring rods)
Range
- 18-160 mm (accuracy ±0.015 mm, repeatability 0.003 mm)
- 35-60 mm (accuracy ±0.018 mm, repeatability 0.003 mm)
- 50-160 mm (accuracy ±0.018 mm, repeatability 0.003 mm)
Dial indicator2308-10FA
- With O-ring
- With locking mechanism
- Ruby bearings
- Tolerance indicators
Range
- 0-10 mm
Scale division
- 0.01 mm
Accuracy
- 17 µm
Reversibility error (hysteresis)
- 3 µm
Measuring range / rev.
- 1 mm
Scale
- 0-100
Back side
- Flat
Optional accessories
- Setting rings6312
- Extension rods / attachments7351
Other variants
| IN2724-S3 | Bore Gauge with Digital Indicator 18-160 mm INSIZE (2724-S3) | On request | 334.00 EUR without Tax |
| IN2824-S160 | Bore Gauge with Dial Indicator 35-160/10/0.01 mm INSIZE (2824-S160) | On request | 163.00 EUR without Tax |
| IN2824-S3 | Bore Gauge with Dial Indicator 18-160/10/0.01 mm INSIZE (2824-S3) | On request | 225.00 EUR without Tax |
