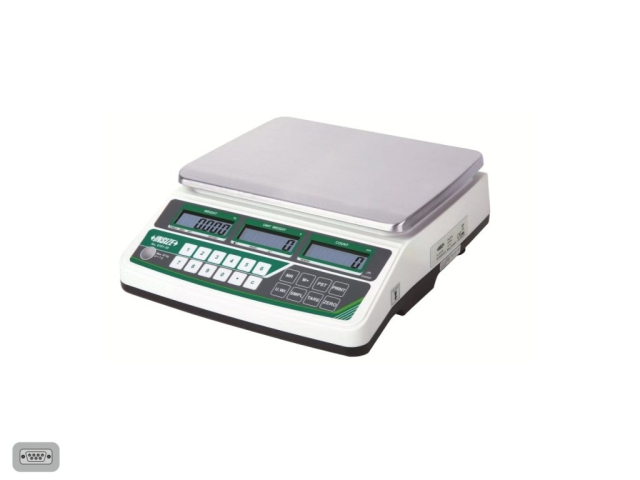

Counting scale 15 kg/0.5 g; data output INSIZE (8101-15D)

INSIZE counting scale with a weighing range of 10 g-15 kg, with an LCD display, zero setting, tare value deduction, counting, accumulation (summing). Automatic shutdown, overload alarm, and data output via RS232 interface.

• Scale with functions such as counting, accumulation, or check alarm.

• Counting allows the scale to count the number of pieces based on the weight of individual pieces.

• Accumulation allows the scale to store and sum weighings over time.

• Check alarm alerts the user when the scale reaches a certain count or weight.

• LCD display with backlight
• Overload alarm
• Automatic shutdown
• Possibility to deduct tare value (e.g., empty container)

Technical specification

Maximum weighing capacity

• 15 kg

Minimum weighing capacity

• 10 g

Graduation

• 0.5 g

Accuracy (m is the load)

• m≤2.5 kg
  • ±2.5 g
• 2.5 kg
• ±5 g

Units

• kg
• g
• lb
• lb-oz

Data output

• RS232

Operating temperature

• -10-+40°C

Power supply

• Battery 6 V/3.2 Ah

AC adapter

• 12 V / 500 mA

Weighing surface dimensions

• 263×204 mm
