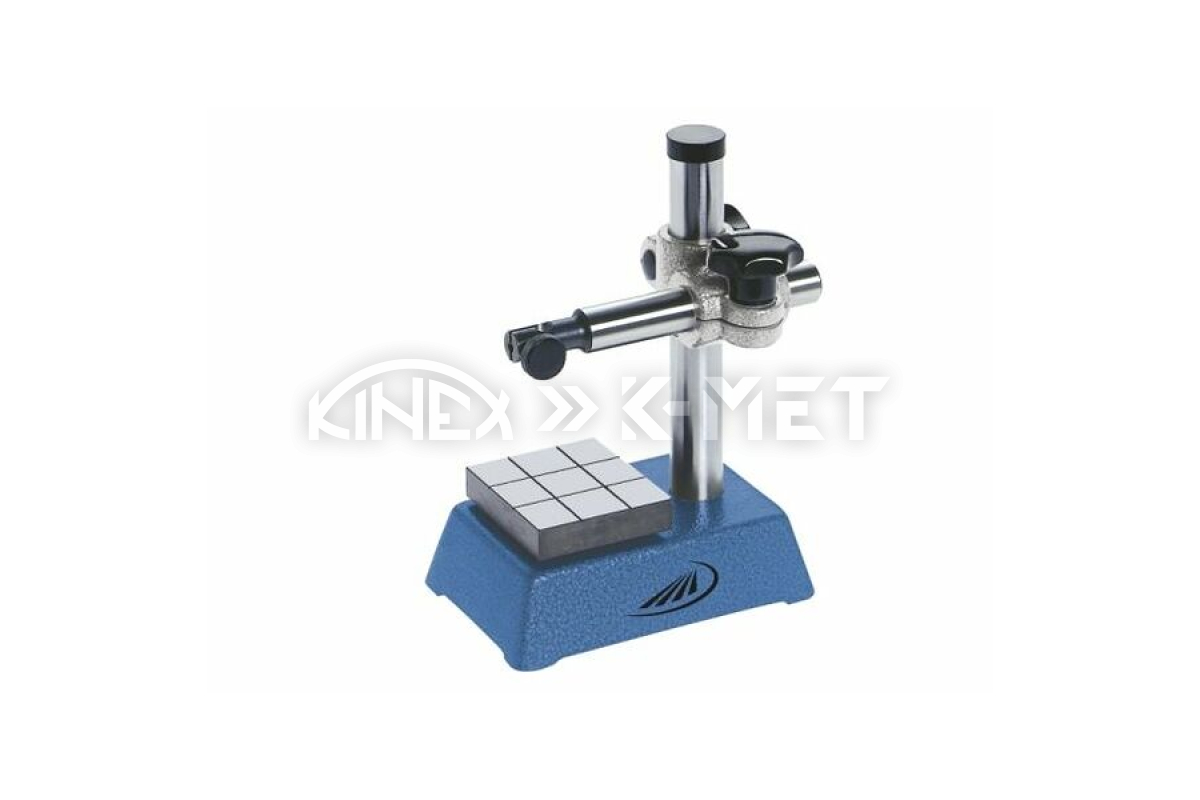

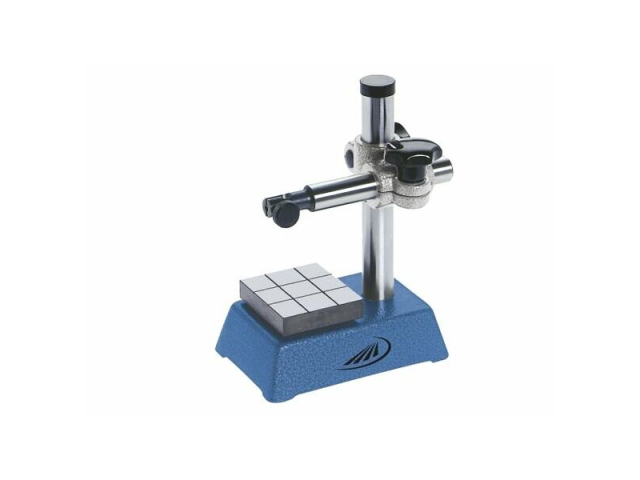

Dial gauge stand with adjustable cross arm, surface 60x68mm, max measuring height 100 mm HELIOS-PREISSER (0770201)

Dial gauge stand with adjustable cross arm, surface 60x68mm, max measuring height 100 mm HELIOS-PREISSER

Discover precision and reliability with the HELIOS-PREISSER measuring stand, designed for the most demanding workshop applications. This robust stand with an adjustable cross arm is an ideal solution for precise measurements with a dial gauge, ensuring maximum stability and repeatability of results.

Thanks to its well-thought-out design with a cast base and chrome-plated columns, it guarantees a long service life and resistance to wear. The hardened steel work surface, measuring 60x68 mm, is also equipped with special grooves for efficient dirt drainage, which keeps the measuring environment always clean and contributes to flawless measurements. The adjustable cross arm allows flexible positioning of the dial gauge, and a maximum measuring height of 100 mm covers a wide range of applications.

Key Features and Technical Parameters:

• Cast Base: For maximum stability and vibration minimization.
• Chrome-plated Columns: Ensure long service life and corrosion resistance.
• Work Surface: Made of hardened steel with grooves for dirt drainage, dimensions 60x68 mm.
• Mounting Hole: For dial gauges with a diameter of 8 mm.
• Adjustable Cross Arm: For flexible positioning.
• Maximum Measuring Height: 100 mm.
• Projection: 100 mm.
• Column Diameter: 22/18 mm.

This measuring stand is supplied individually packaged and is ready for immediate use, making it an indispensable helper in every professional workshop.

Additional Information:
