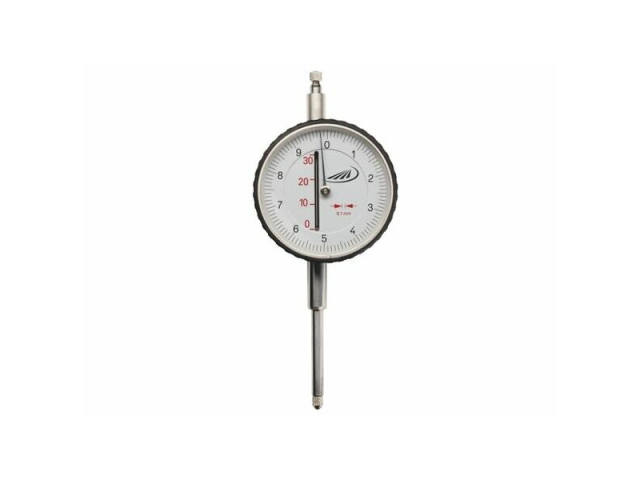

Dial indicator ø 58 mm, reading 0.10 mm, range 30 mm HELIOS-PREISSER (0700104)

Dial indicator ø 58 mm, reading 0.10 mm, range 30 mm

Discover precision and reliability with our Helios-Preisser dial indicator, designed for the most demanding measuring tasks. With a robust metal casing and a stainless steel measuring spindle, it guarantees long life and consistent performance. This model boasts a large measuring range of 30 mm and a fine reading of 0.10 mm, allowing for detailed and accurate measurements.

Ideal for workshops, laboratories, and inspection departments where accuracy is key. Thanks to the 58 mm outer ring diameter, the indicator is easy to read and intuitive. One revolution of the pointer corresponds to 10 mm, facilitating quick reading of larger displacements.

Technical Specifications and Key Features:

• Robust Construction: Metal casing and stainless steel measuring spindle for maximum durability and long lifespan.
• Large Measuring Range: 30 mm for a wide range of applications.
• High Accuracy: Scale value 0.1 mm and repeatability 15 µm for reliable results.
• Easy Reading: Outer ring Ø 58 mm and 1 pointer revolution = 10 mm for quick and clear interpretation.
• Flexible Use: Clamping shank Ø 8 mm h 6 and replaceable probe tip M 2.5 mm.
• Reliability: Analog measuring force 0.8 N.
• Quality: Supplied individually packaged and meets factory standard.
• Manufacturer: Helios-Preisser Vertrieb Mahr GmbH
