Digital Caliper 10-300/0.01 mm for Flange Groove Measurement INSIZE (1179-300)
- Brand: INSIZE
- Product Code: IN1179-300
- EAN: 6928640302565
- Weight: 0,86 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 298.00 EUR
Inc. Tax: 366.54 EUR

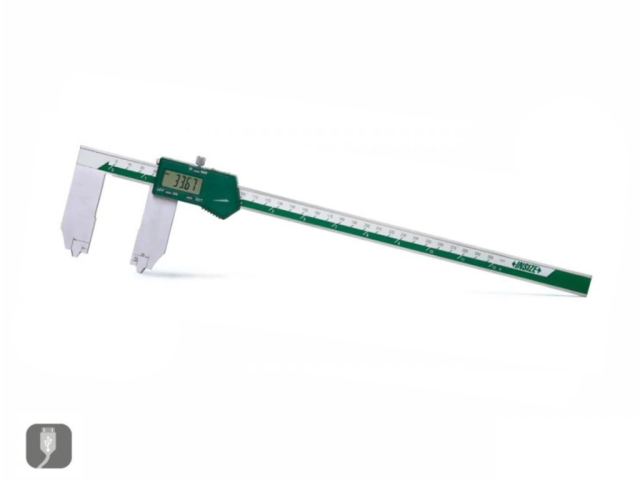

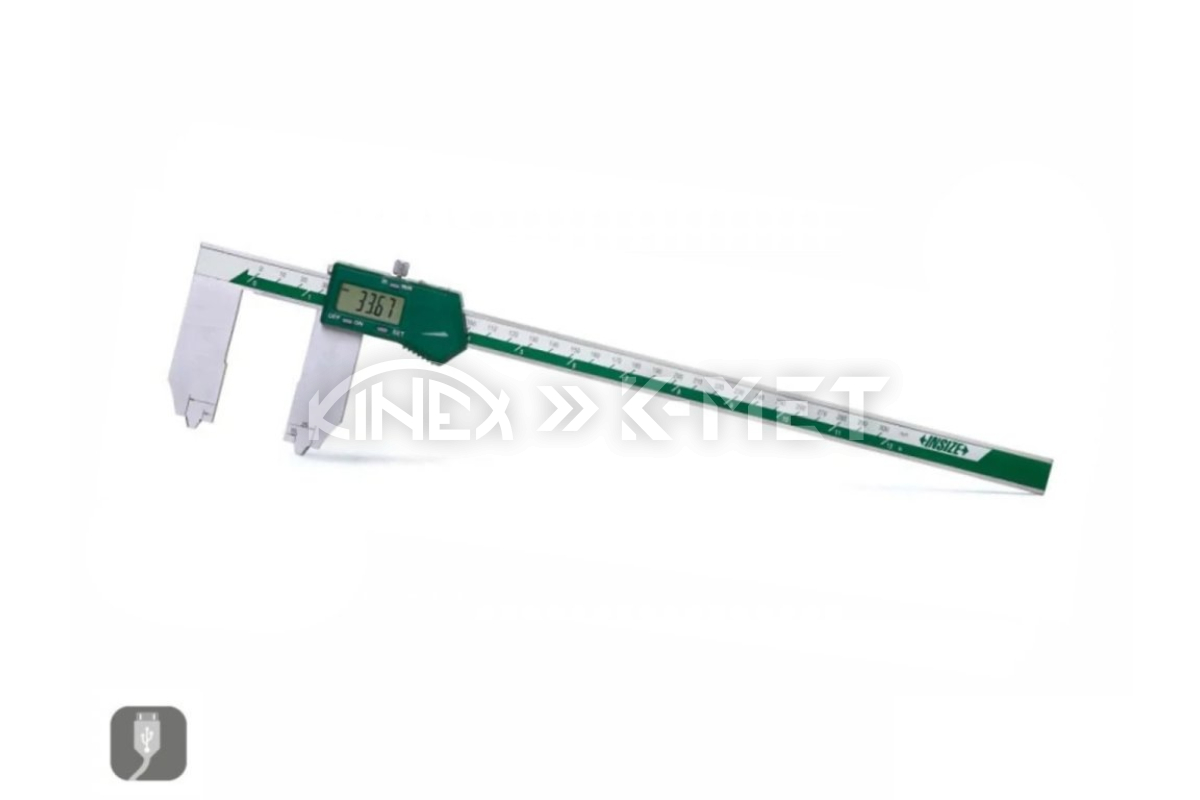

Digital caliper with a range of 10-300/0.01 mm from INSIZE. The marked lower jaws, 63.5 mm long, are designed for measuring RTJ flange grooves, with data output.
Technical specification
- Lower jaws are marked for easier orientation
- Data output for convenient measurement
Range
- For internal groove measurement
- 10-300 mm (0.4-12″)
- For external groove measurement
- 25-300 mm (1-12″)
Resolution
- 0.01 mm / 0.0005″
Measuring angle
- 23° on both sides
Jaws
- Lower jaws, 63.5 mm long, are marked and end with a 23° contact point
Measuring accuracy
- +- 0.06 mm
Buttons
- On/off
- Setting (SET)
- Zeroing (ZERO)
- Unit conversion (mm/inch)
- Data preset (+ -)
Power supply
- BatteryCR2032
Optional accessories
- Data output cable7315-21, or7302-21
*7/24
Other variants
| IN1179-1000 | Digital Caliper 15-1000/0.01 mm for Flange Groove Measurement INSIZE (1179-1000) | On request | 1,419.00 EUR without Tax |
| IN1179-300 | Digital Caliper 10-300/0.01 mm for Flange Groove Measurement INSIZE (1179-300) | On request | 298.00 EUR without Tax |
| IN1179-600 | Digital Caliper 10-600/0.01 mm for Flange Groove Measurement INSIZE (1179-600) | On request | 474.00 EUR without Tax |
