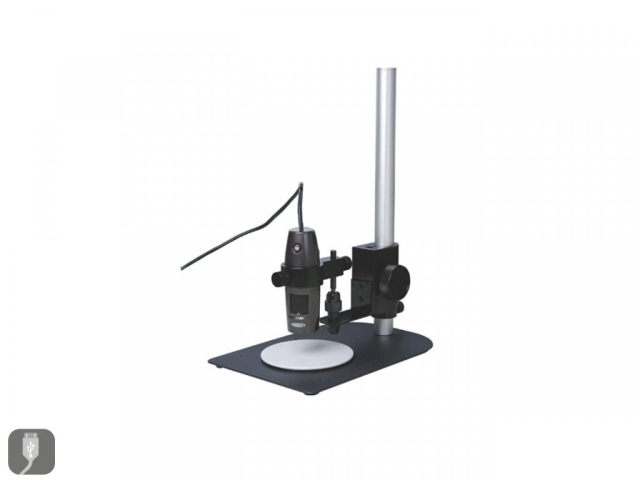

Digital measuring microscope 10~200×, standard stand INSIZE (ISM-PM200SA)

• Captures videos and images
• Includes calibration ruler (0.1 and 1 mm)
• With a support for easier focusing

• Includes software
• With standard stand

Technical specification

Magnification

• 10~200×

Stand

• Standard

Pixels

• 2 M

Resolution

• 1600×1200

Lighting

• Built-in adjustable LED

Source

• USB 2.0 cable (recommended voltage 5±0.1 V)

Magnification, focusing distance, field of view, and accuracy

Software

Language

• English, Japanese, Korean, German, Turkish, Portuguese, Chinese

Operating System

• Windows 7/8/XP/Vista

Measurement Tools

Measure the length of a straight line or the distance between two points

Measure the area of a rectangle

Measure the distance between two circles

Measure the distance between lines

Measure the angle with two lines

Measure the distance between a point and a line

Measure the radius, length, and angle of an arc

Add number in a circle

Measure the length of a continuous line

Measure the angle with three points

Measure the radius, circumference, and area of a circle

Add text

Edge Detection Function Tools

Automatically detects two parallel lines and calculates their distance

Automatically detects a circle and calculates its radius, circumference, and area

Automatically detects an arc and calculates its radius, angle, and length

Automatically detects two lines and calculates the angle between them

Automatically detects a line and calculates its length

Comparison Tools

• Create a line
• Create an angle
• Create a circle with a certain tolerance

Data Export

• To CAD
• To Excel

Optional Accessories

• Filters

  • Green (ISM-PM-GREEN)
  • Yellow (ISM-PM-YELLOW)
  • Blue (ISM-PM-BLUE)
