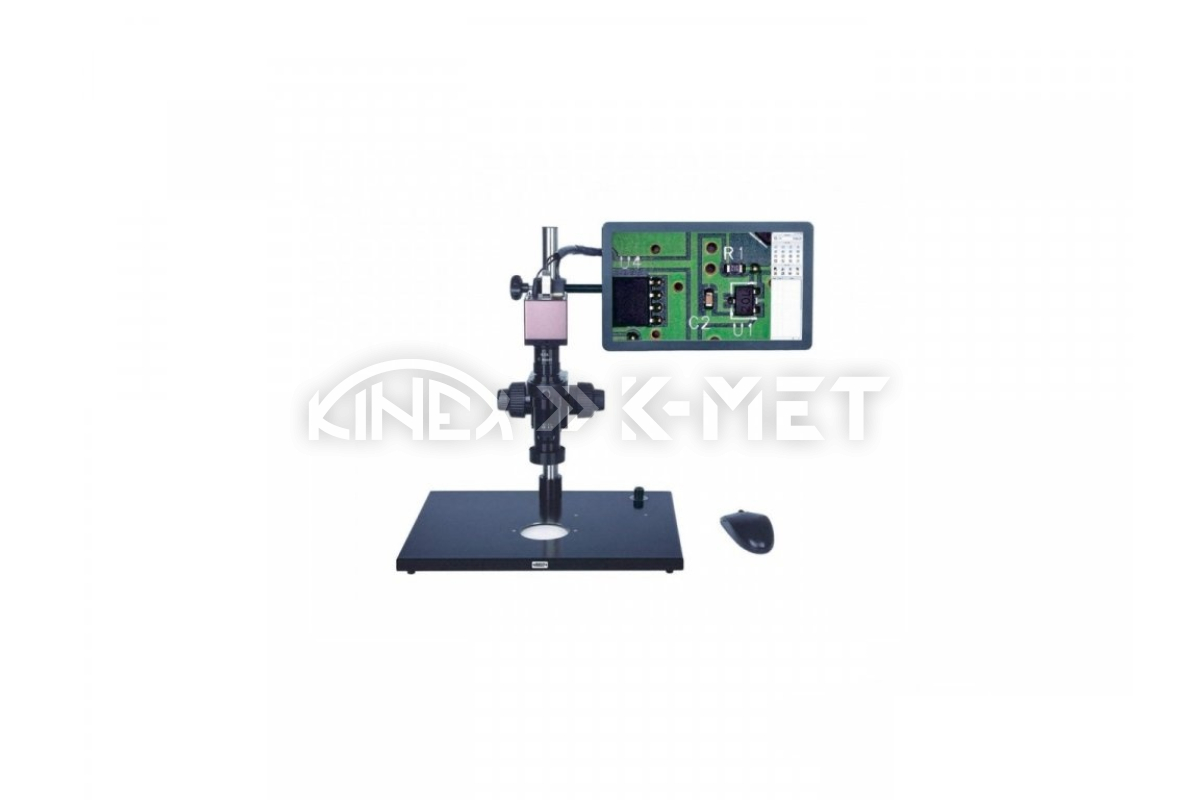

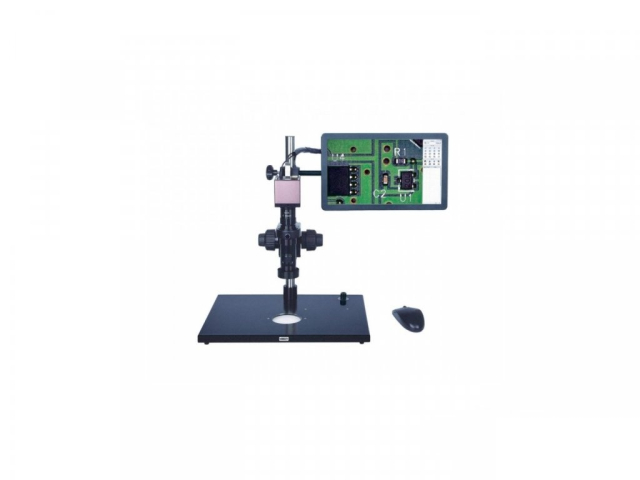

Digital Measuring Microscope with Display and Contour Illumination ISM-DL301 INSIZE (ISM-DL301)
- Brand: INSIZE
- Product Code: INISM-DL301
- EAN: 6928640396922
- Weight: 10,85 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 2,226.00 EUR
Inc. Tax: 2,737.98 EUR
The ISM-DL301 digital measuring microscope from INSIZE features 15~100X magnification, a display, contour illumination, edge detection, 1080P resolution, and measurement capabilities using its own software, eliminating the need for PC connection. Measured values can be saved to Excel.
- 1080P image, 13.3" LCD display
- Built-in software, no PC required, controlled by mouse (included)
- Captured images can be saved to USB
- Data can be sent to Excel
- Automatic white balance
- Automatic exposure
- Adjustable brightness, contrast, and gain
- With contour illumination

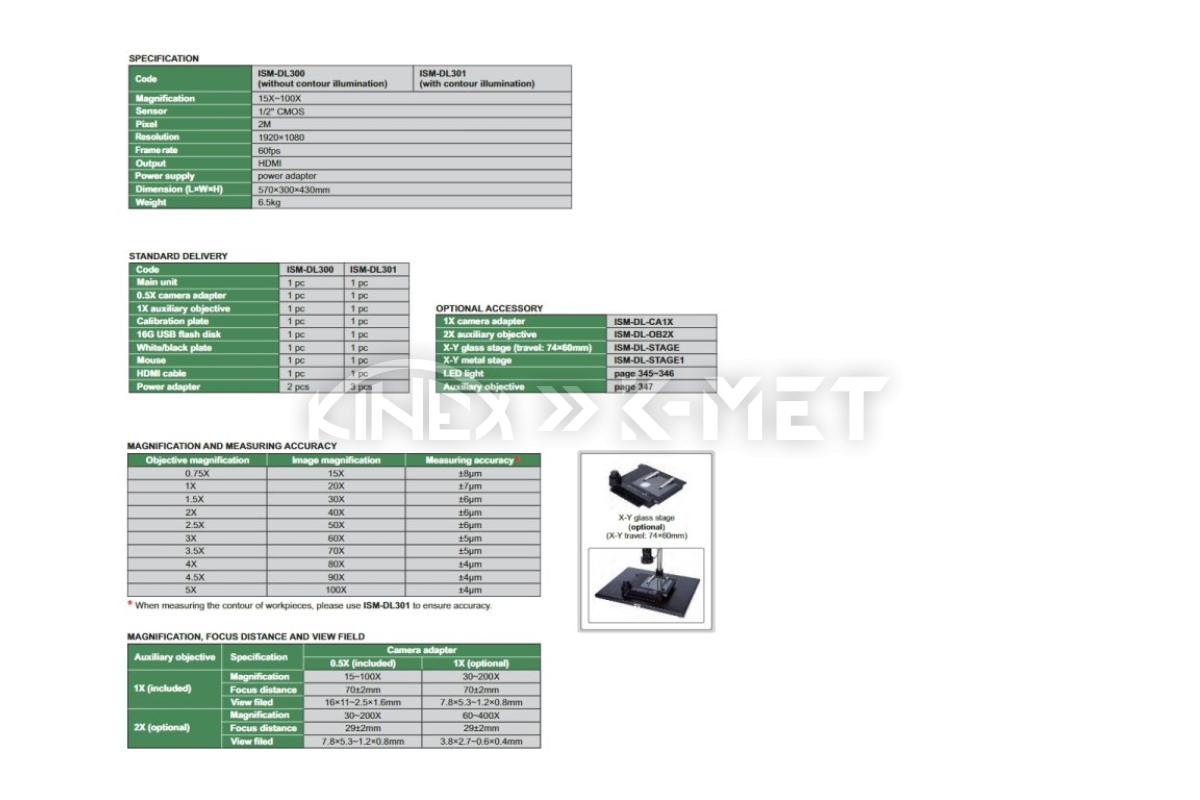

Technical Specification
Magnification
- 15X~100X
Sensor
- 1/2" CMOS
Pixel Count
- 2M
Resolution
- 1920x1080
Frame Rate
- 60 fps
Output
- HDMI
Weight
- 6.5 kg
Magnification and Measurement Accuracy
| Objective Magnification | Image Magnification | Measurement Accuracy |
| 0.75X | 15X | +- 8 µm |
| 1X | 20X | +- 7 µm |
| 1.5X | 30X | +- 6 µm |
| 2X | 40X | +- 6 µm |
| 2.5X | 50X | +- 6 µm |
| 3X | 60X | +- 5 µm |
| 3.5X | 70X | +- 5 µm |
| 4X | 80X | +- 4 µm |
| 4.5X | 90X | +- 4 µm |
| 5X | 100X | +- 4 µm |
Magnification, Working Distance, and Field of View
| Auxiliary Objective | Specification | Camera Adapter | |
| 0.5X (Included) | 1X (Optional) | ||
| 1X (Included) | Magnification | 15~100X | 30~200X |
| Working Distance | 70+-2 mm | 70+-2 mm | |
| Field of View | 16x11~2.5x1.6 mm | 7.8x5.3~1.2x0.8 mm | |
| 2X (Optional) | Magnification | 30~200X | 60~400X |
| Working Distance | 29+-2 mm | 29+-2 mm | |
| Field of View | 7.8x5.3~1.2x0.8 mm | 3.8x2.7~0.6x0.4 mm | |
Software
Software with edge detection, calibration function, comparison, and crosshair
Language
- English, Korean, Chinese (Simplified and Traditional)
Output
- Excel

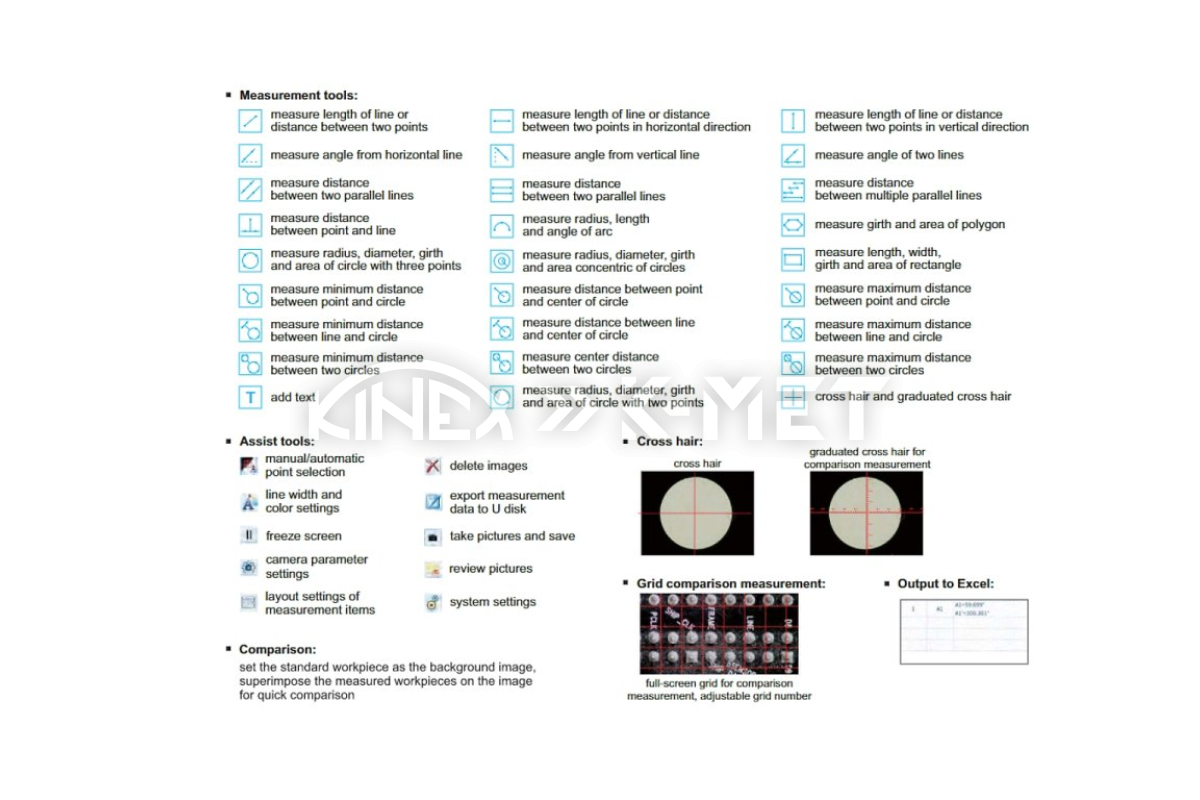

Measurement Functions
- Measures line length or distance between two points
- Measures distance between parallel lines
- Measures arc radius, length, and angle
- Measures distance between a point and a line
- Measures distance between a line and a circle center
- Measures rectangle length, width, perimeter, and area
- Measures minimum distance between a point and a circle
- Measures angle between two lines
- Measures radius, diameter, perimeter, and area of concentric circles
- Measures perimeter and area of a polygon
- Measures diameter, radius, perimeter, and area of a three-point circle
- Measures distance between the centers of two circles
- Option to add text
- Option to display crosshair

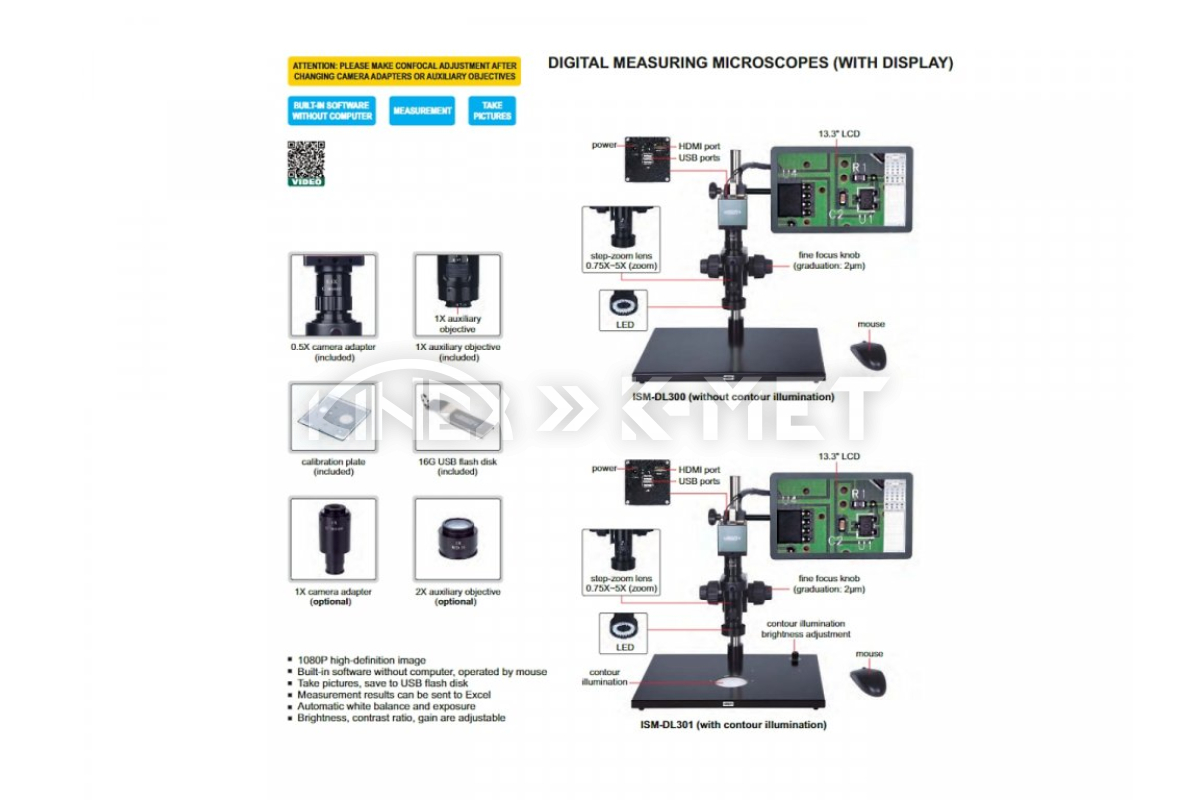

Package Contents
- ISM-DL301 Digital Measuring Microscope with Display INSIZE
- 0.5X Camera Adapter
- 1X Auxiliary Objective
- Standard
- 16 GB USB Flash Drive
- White / Black Stage Plate
- Mouse
- HDMI Cable
- Power Adapter (3x)
Optional Accessories
- 1X Camera Adapter (ISM-DL-CA1X)
- 2X Auxiliary Objective (ISM-DL-OB2X)
- X-Y Glass Stage Travel 74x60 mm (ISM-DL-STAGE)
- X-Y Metal Stage (ISM-DL-STAGE1)
- LED Illumination + Controller (ISM-LED-9245R, ISM-LED-100L4+ISM-LED-CTRL)
- Auxiliary Objectives (ISM-DL-OB03X, OB05X, OB075X, OB1X, OB1D5X, OB2X)
