Digital micrometer caliper with non-rotating spindle 150-6150 mm INSIZE (3635-6150)
- Brand: INSIZE
- Product Code: IN3635-6150
- EAN: 6928640372766
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 6,311.00 EUR
Inc. Tax: 7,762.53 EUR

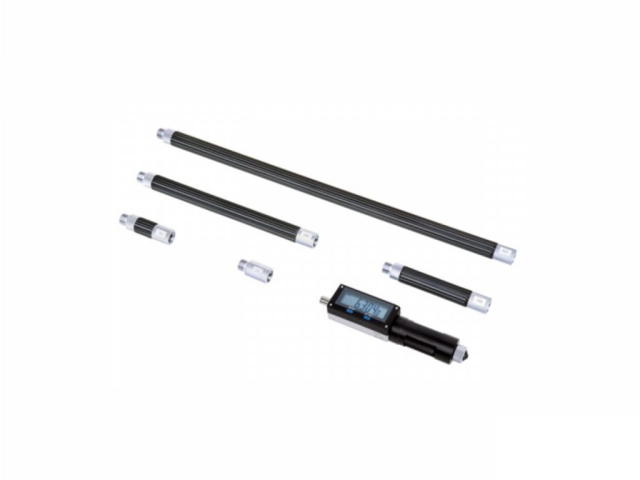

Digital micrometer caliper from INSIZE with a measuring range of 150-6150 mm. With a non-rotating spindle and a micrometer head of 150-180 mm. Data output.
Technical specification
- Digital micrometer caliper with non-rotating spindle
Measuring range
- 150-6150 mm
Micrometer head
- Size 150-180 mm
- Measuring force 5-10 N
- Accuracy 4 µm
Extension rods
- 25 mm with accuracy ± 1.25µm
- 50 mm with accuracy ± 1.25 µm
- 100 mm with accuracy ± 2 µm
- 200 mm with accuracy ± 3.5 µm (2x)
- 400 mm with accuracy ± 4.5 µm
- 1000 mm with accuracy ± 7.5 µm (5x)
Buttons and functions
- Unit conversion (mm/inch)
- Power on/off
- Value tracking (max./min.)
- Automatic power off
Data output
- Data output cable (not included)
