Digital spirit level 30° with touch color LCD INSIZE (ISE-2DT)
- Brand: INSIZE
- Product Code: INISE-2DT
- EAN: 6928640324840
- Weight: 0,87 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 536.00 EUR
Inc. Tax: 659.28 EUR

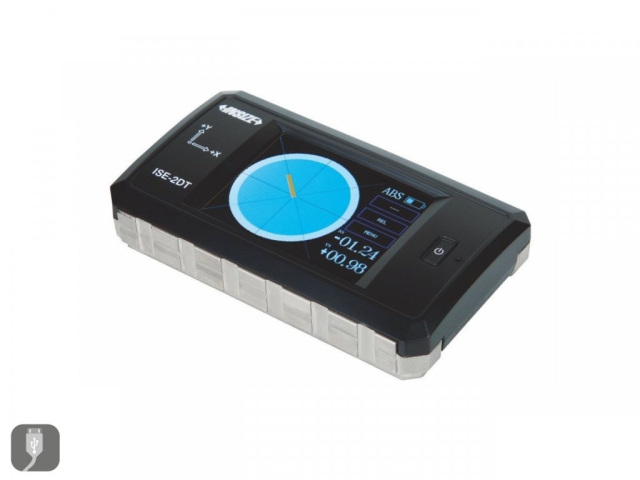

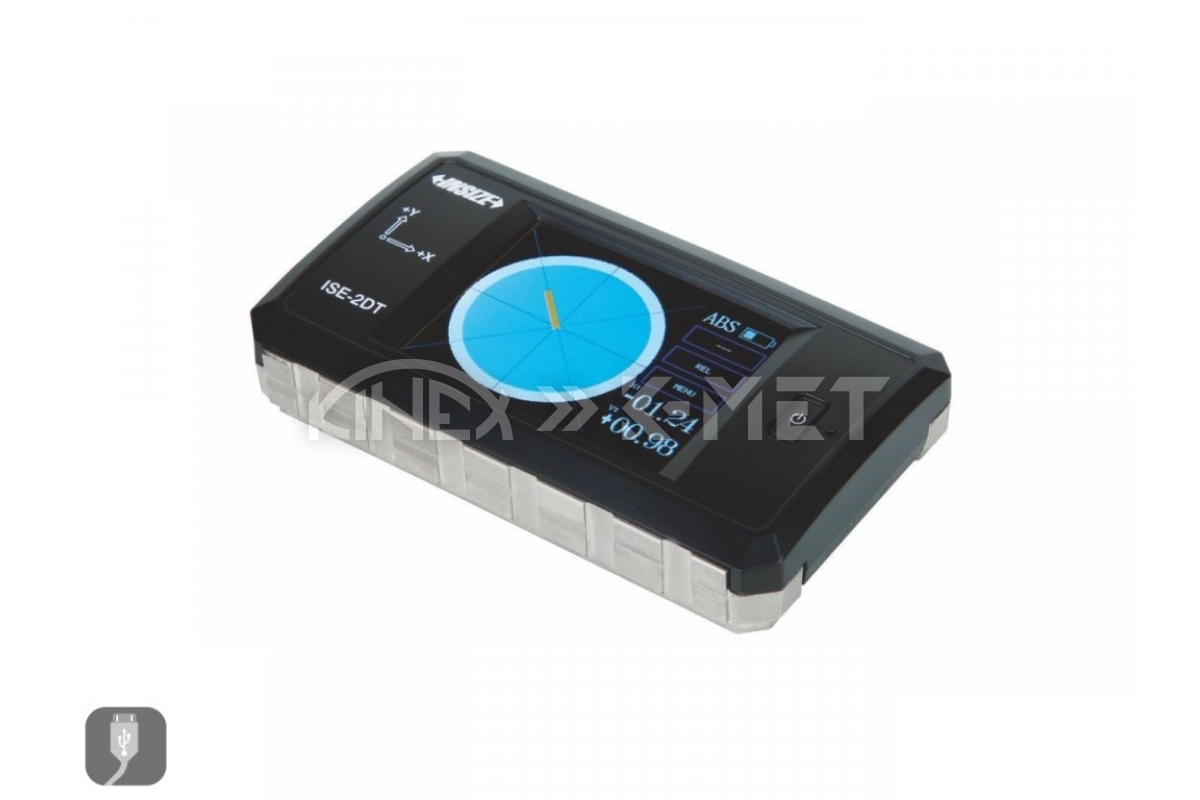

2D digital spirit level from INSIZE with a touch color LCD display, tolerance setting in three colors for easy reading, and data output.
- Touch color LCD display showing the slope as a line or bubble
- After entering the limit/tolerance value, different colors are displayed on the display
- Green - Measurement within the set tolerance
- Yellow - Slight exceeding of the set tolerance
- Red - Exceeding the set tolerance
- For horizontal and vertical measurement
- Possibility of measurement with the spirit level placed
- Absolute and relative measurement in X-Y axes
- Display of slope direction and angle
- LED light
- V-groove on the bottom
- Charging and data transfer slot in one (USB)
- 4 prepared threads for possible fixed mounting

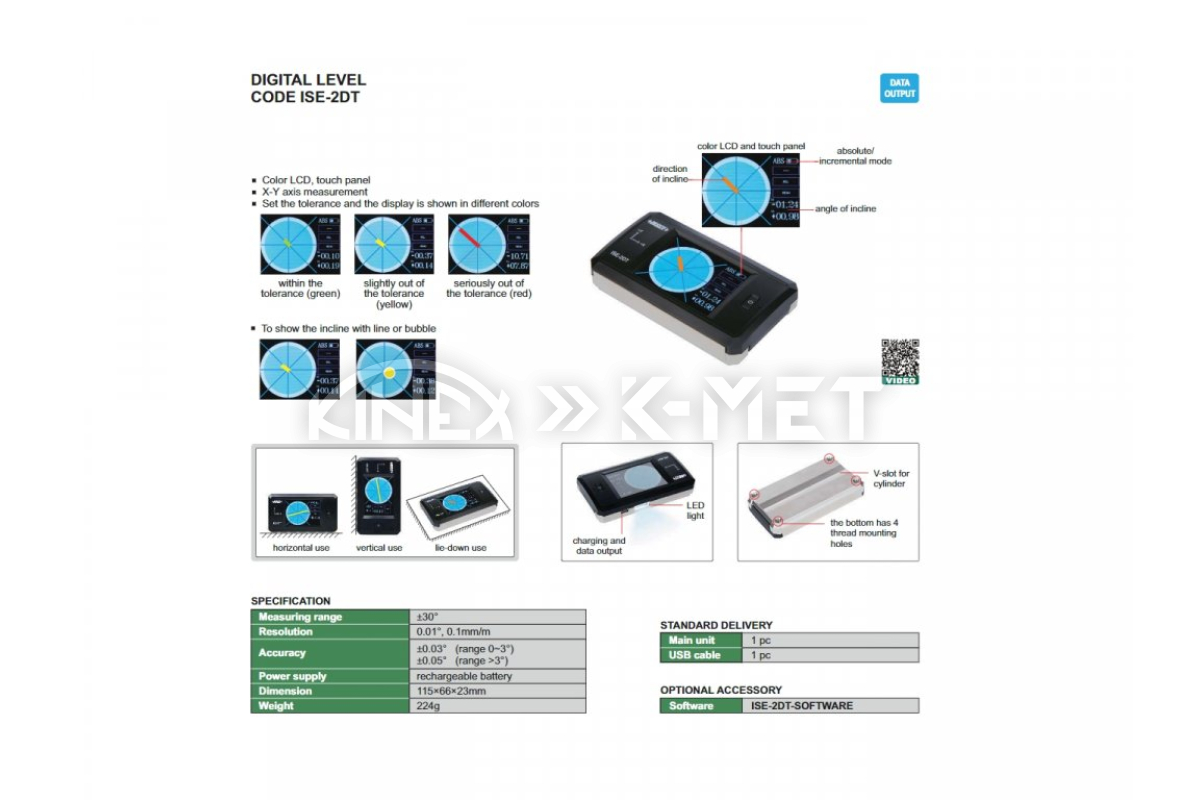

Technical specification
Measuring range
- +-30°
Resolution
- 0.01°
- 0.1 mm/m
Accuracy
- +-0.03° (in the range 0~3°)
- +-0.05° (in the range >3°)
Power supply
- Charging with the included USB cable
Dimensions
- 115x66x23 mm
Weight
- 224 g
Package contents
- Digital spirit level 30° with color LCD INSIZE
- USB cable
Optional accessories
- Data transfer software (including USB cable) ISE-2DT-SOFTWARE
