Flexible endoscope with illumination, camera 1.8 mm ISV-K1810 INSIZE (ISV-K1810)
- Brand: INSIZE
- Product Code: INISV-K1810
- EAN: 6940561973402
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 8,564.00 EUR
Inc. Tax: 10,533.72 EUR

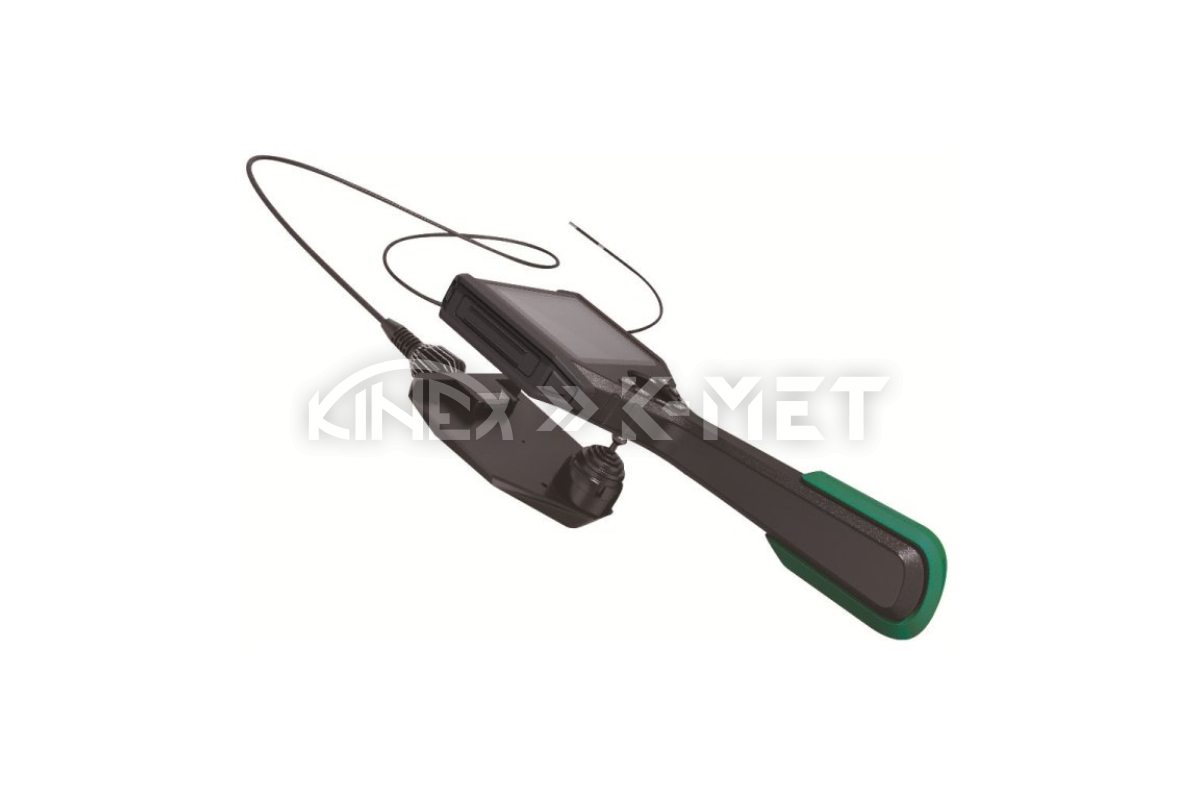

Digital flexible endoscope ISV-K1810 from INSIZE with 5" IPS HD display, camera with IP65 protection, size 1.8 mm, bendable in two directions. Depth of view 3-30 mm, HDMI and USB data output, possibility of photos and videos.
- IP65 protection
- Braided flexible tungsten cable, length 1 m

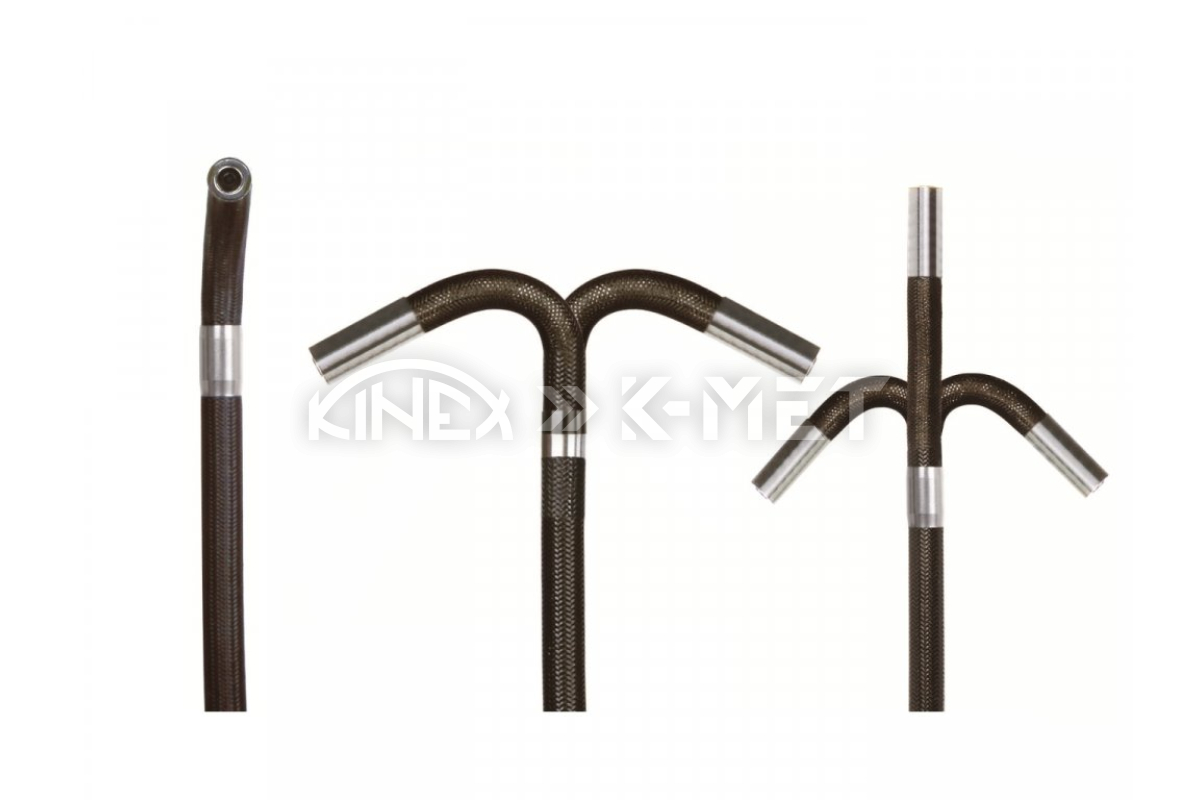

- Camera can be bent in two directions
- Durable sapphire glass on the eyepiece
- 5" IPS display
- Data output - HDMI, USB
- Image zoom up to 4X
- Records videos, takes pictures
- Usable up to 90% relative humidity
- Can be powered from the mains or via adapter

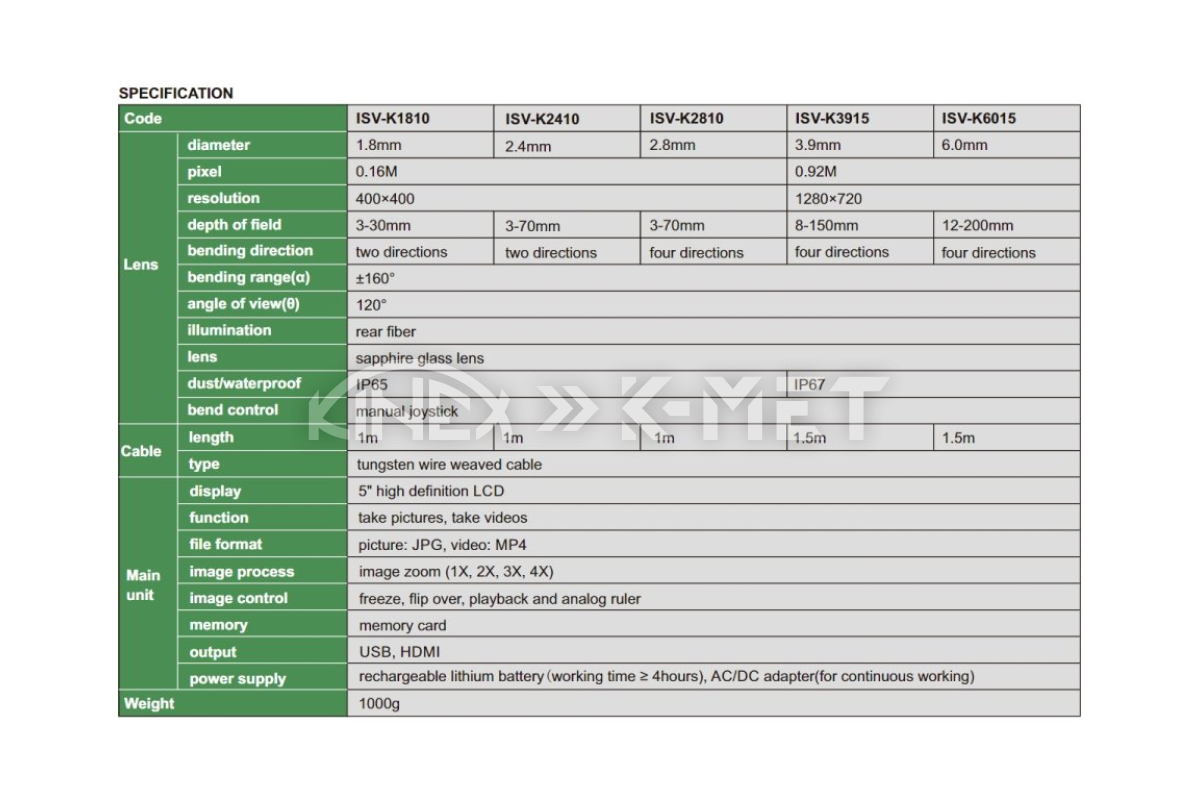

Technical specification
Eyepiece
Diameter
- 1.8 mm
Pixel count
- 0.16 M
Resolution
- 400×400
Depth of view
- 3-30 mm
Bending capability
- In two directions
Bending range
- Up to ±160°
Field of view
- 120°
Illumination
- Fiber
Material
- Sapphire glass
Protection class
- IP65
Bending control
- Manual
Cable
Length
- 1 m
Material
- Tungsten
Type
- Braided
- Flexible
Main unit
Display
- 5" HD LCD
Functions
- Snapshots (.JPG)
- Videos (.MP4)
Zoom
- 1X
- 2X
- 3X
- 4X
Image control
- Freeze
- Flip
- Playback
- Ruler
Memory
- Memory card
Data output
- HDMI
- USB
Power supply
- AC/DC adapter
- Rechargeable battery ≥4 hours operation
Environment
Main unit
- -10~50°C
Operating temperature
- -20~70°C
Storage temperature
- -20~60°C
Relative humidity
- max. 90% relative humidity

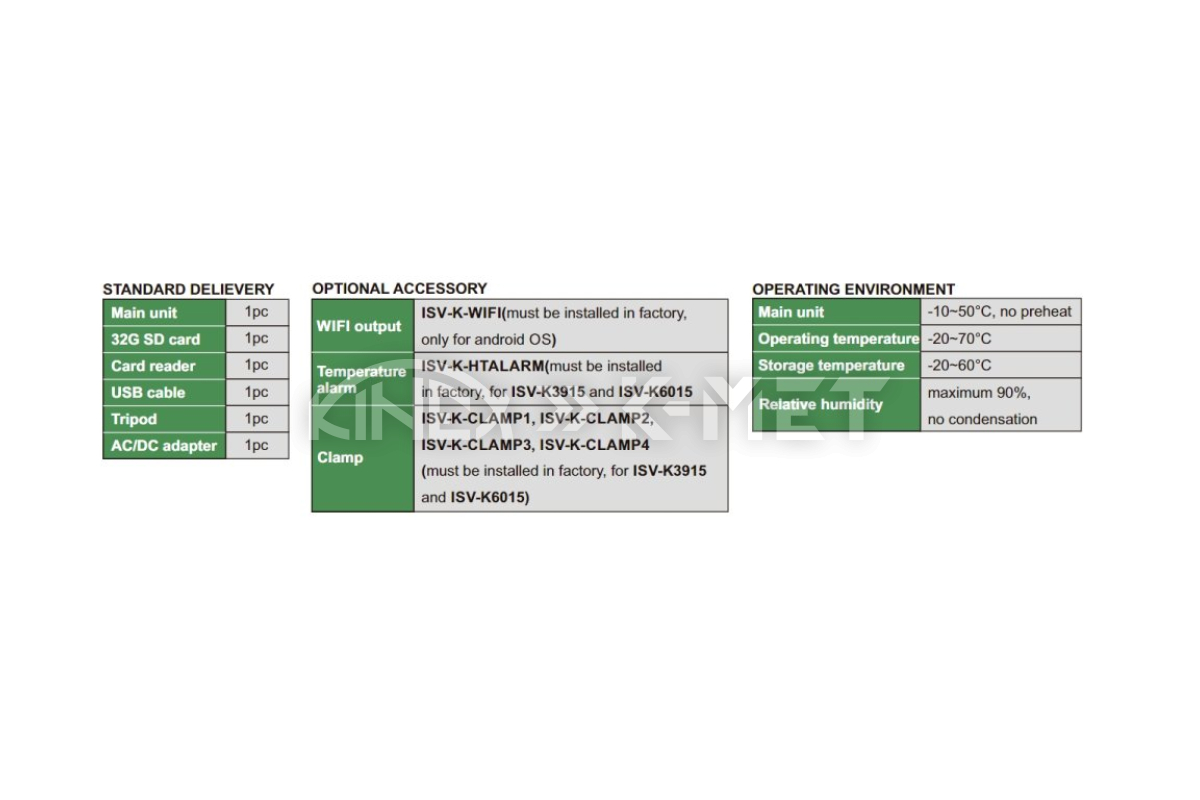

Standard delivery
- Flexible endoscope with illumination INSIZE ISV-K1810
- 32 GB SD card
- Card reader
- USB cable
- Tripod
- AC/DC adapter
Optional accessories
- Wi-Fi output (ISV-K-WIFI)(this module must be installed during manufacturing, please contact our sales representative if interested)
