Hardness Tester LEEB HDT-L410 INSIZE (HDT-L410)
- Brand: INSIZE
- Product Code: INHDT-L410
- EAN: 6940561941692
- Weight: 5,00 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 1,604.00 EUR
Inc. Tax: 1,972.92 EUR

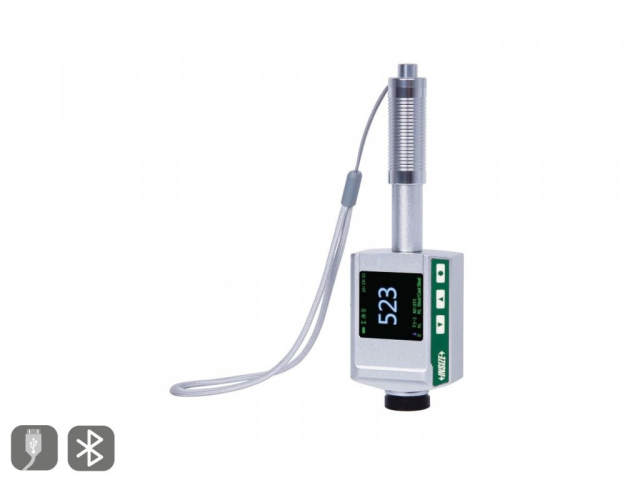

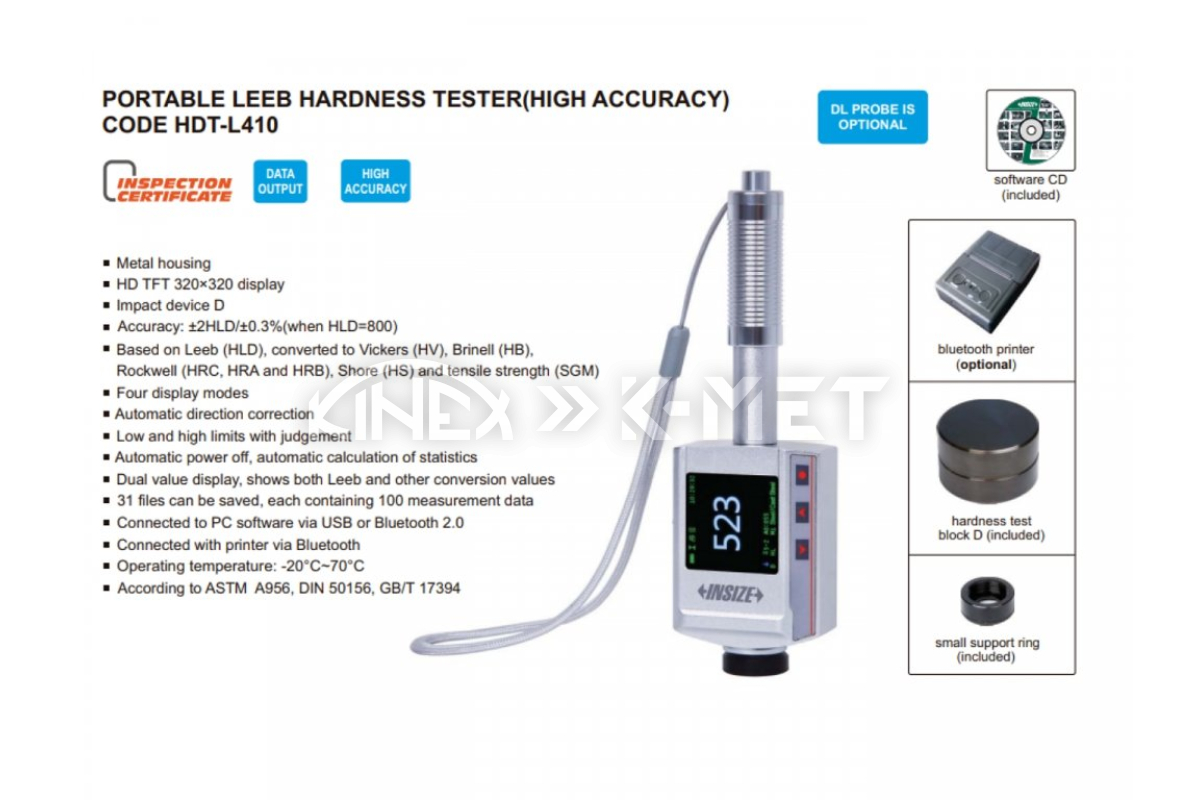

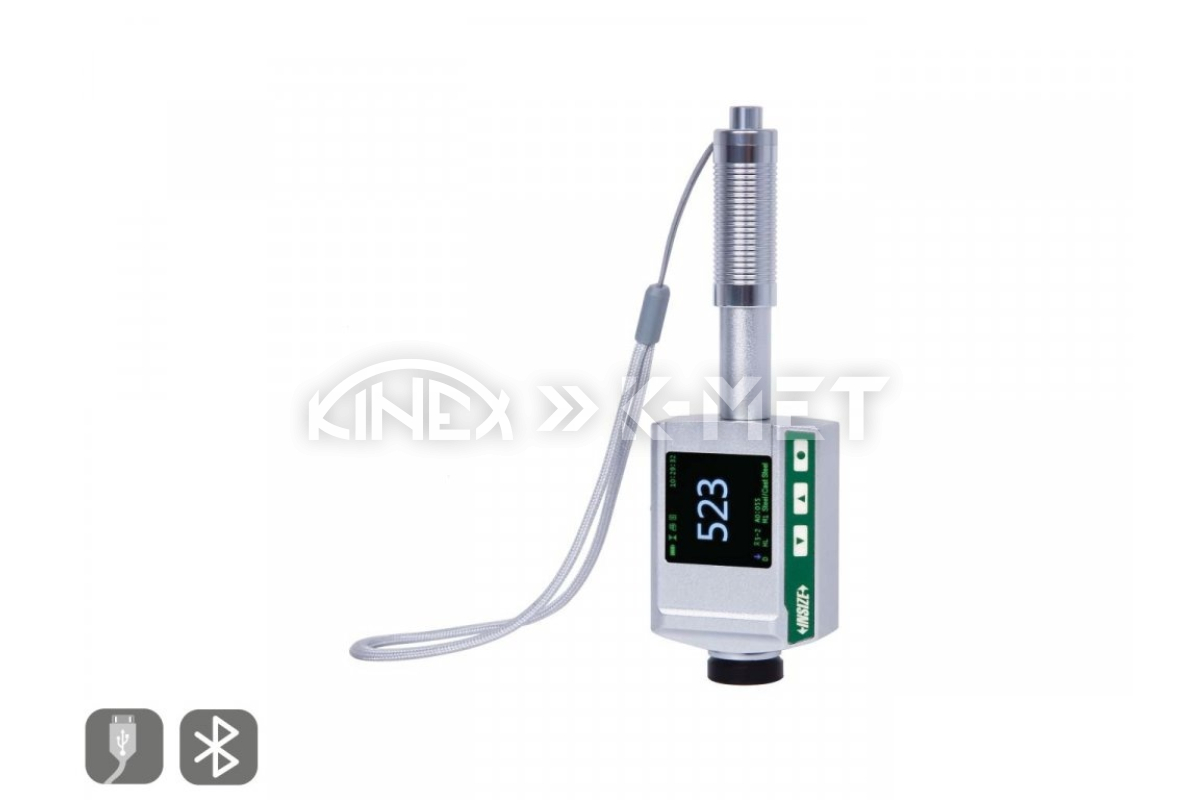

Portable LEEB hardness tester HDT-L410 from INSIZE with integrated probe, high accuracy, HD TFT display and including software. Data output via USB and Bluetooth.
- Conforms to ASTM A956, DIN 50156, GB/T 17394
- HD TFT 320X320 display
- Metal housing
- Four display modes
- Automatic direction correction
- Automatic shutdown, automatic calculation
- Displays dual values on the screen (Leeb and other converted scales)
- Can save up to 31 files (each can contain up to 100 measured data)

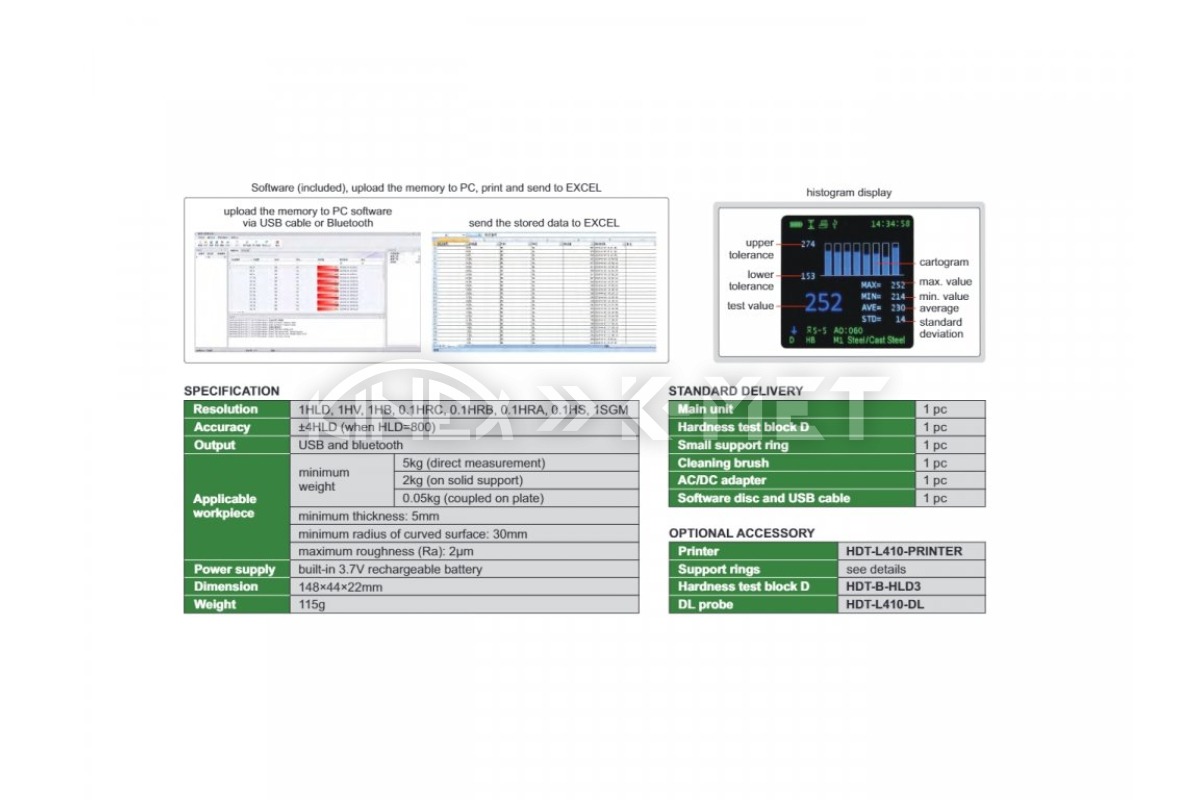

(Hardness tester display)
Technical specification
Resolution
- 1 HLD
- 1 HV
- 1 HB
- 0.1 HRC
- 0.1 HRB
- 0.1 HRA
- 0.1 HS
- 1 SGM
Accuracy
- ± 4 HLD (HLD=800)
Part
- Minimum weight
- 5 kg for direct measurement
- 2 kg on a firm support
- 0.05 kg attached to a plate
- Minimum thickness
- 5 mm
- Minimum curved surface radius
- 30 mm
- Maximum roughness (Ra)
- 2 µm
Data output
- USB
- Bluetooth
Display
Power supply
- 3.7 V rechargeable battery
Package contents
- Type D test impact device
- Small support ring
- Standard D
- Cleaning brush
- Adapter
- Software and USB cable
Optional accessories
- Printer (HDT-L410-PRINTER)
- Support rings (ISH-PH-SP9)
- Standard D (HDT-B-HLD3)
- DL probe (HDT-L410-DL)
