Hardness Tester LEEB HDT-L411 INSIZE (HDT-L411)
- Brand: INSIZE
- Product Code: INHDT-L411
- EAN: 6940561944952
- Weight: 4,02 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 354.00 EUR
Inc. Tax: 435.42 EUR

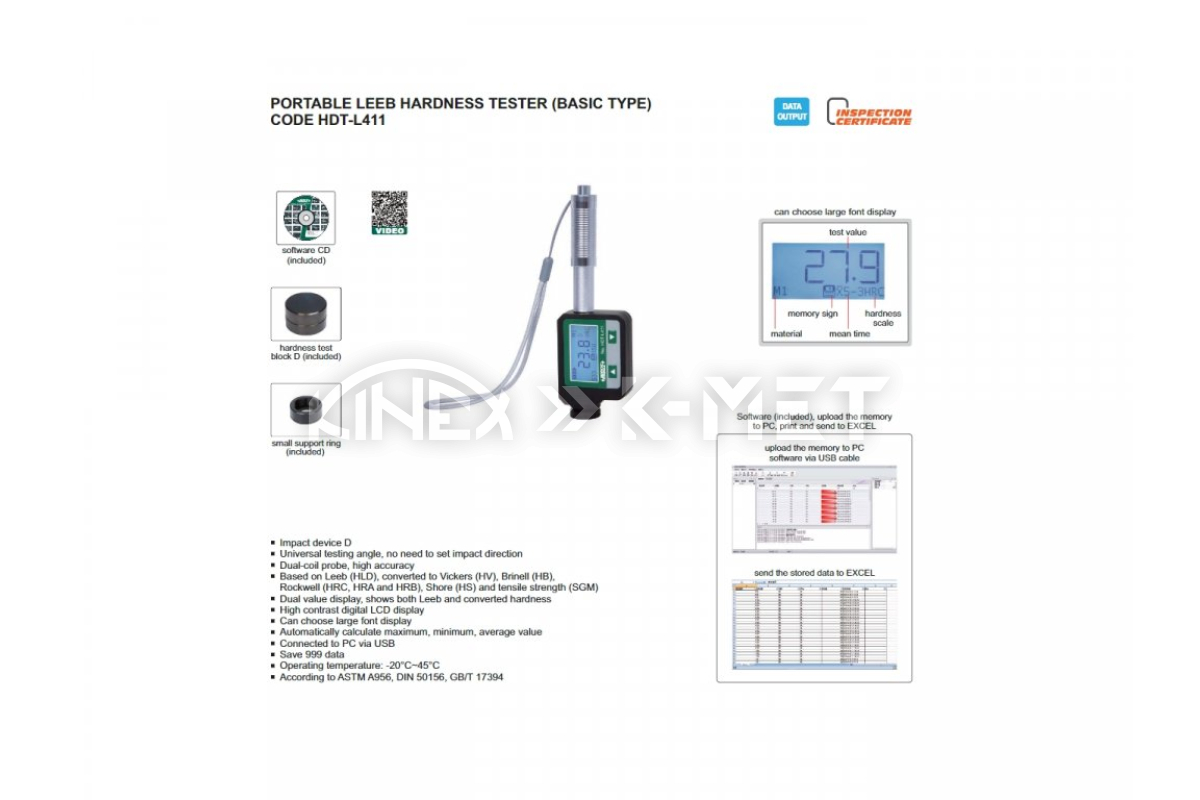

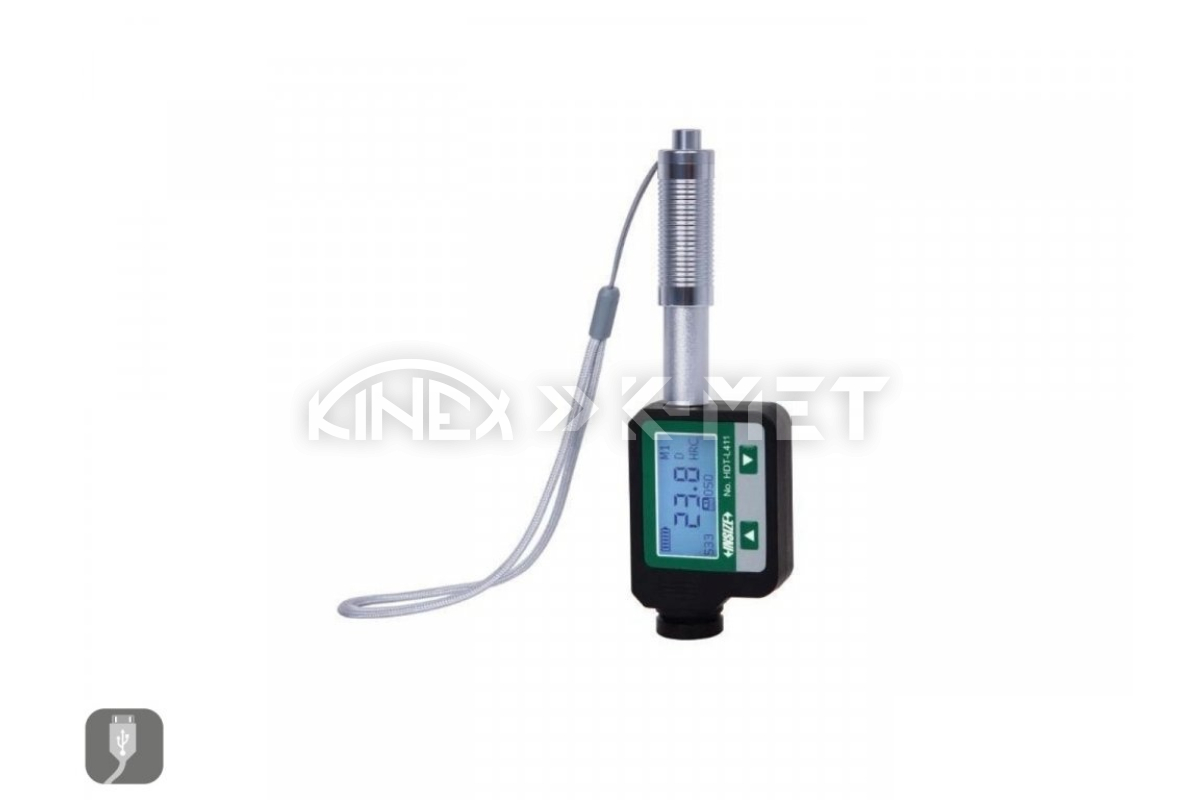

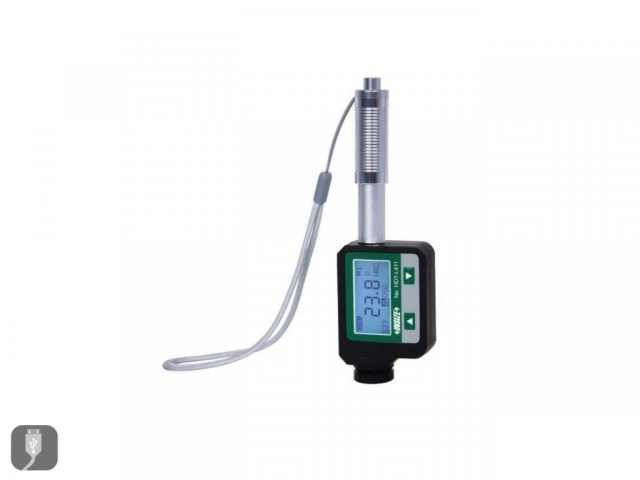

Portable LEEB hardness tester HDT-L411 by INSIZE with integrated probe and a large LCD display, with software, possibility to convert scales to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA, HRB), Shore (HS) and SGM, and data output via USB.
- Conforms to ASTM A956, DIN 50156, GB/T 17394
- Universal test angle without the need to adjust direction
- Dual spring probe for high accuracy
- Conversion from the basic HLD scale to 7 others
- Dual display shows both HLD values and converted values
- Large high-contrast LCD display
- Option to select larger font
- Automatically calculates maximum, minimum, and average values
- Includes software for recording measured values
- USB connectivity
- Values in memory can be sent to PC, printer, and Excel
- Stores up to 999 data points
- Operating temperature -20°C to +45°C

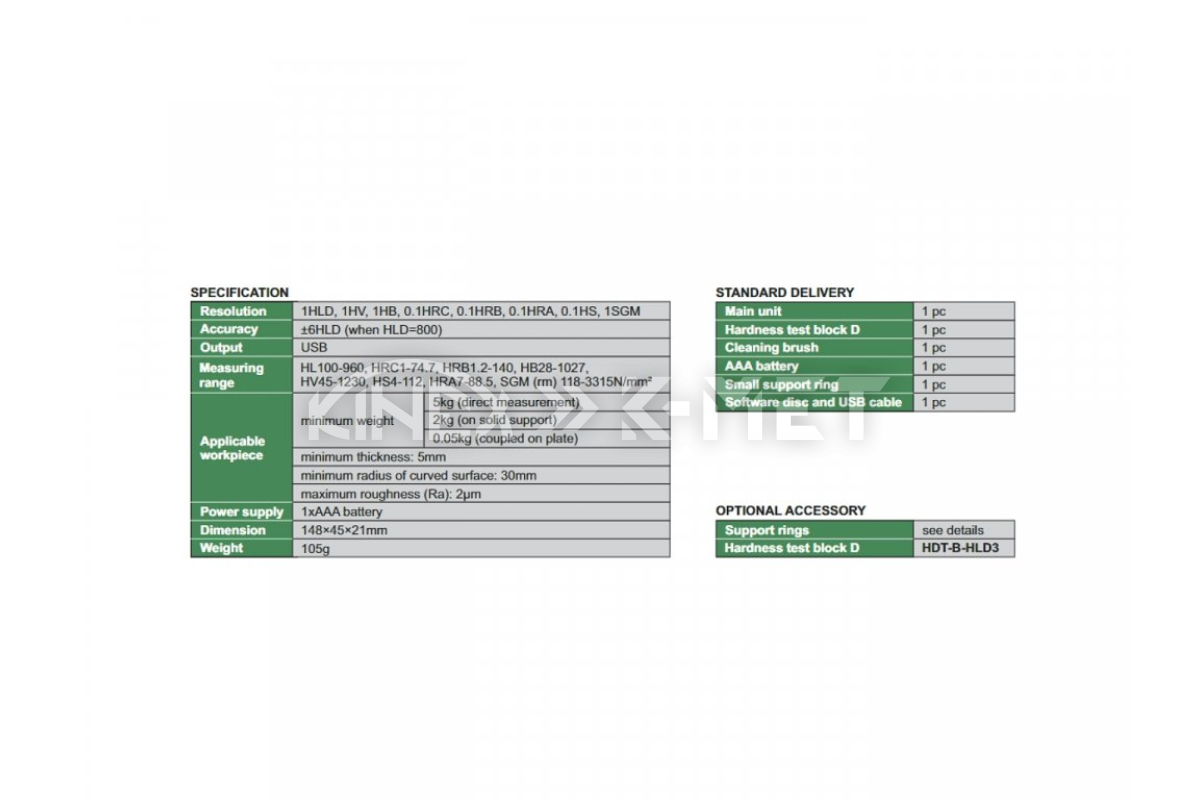

Technical Specification
Resolution
- 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 0.1HRA, 0.1HS, 1SGM
Accuracy
- +/-6 HLD ( HLD= 800)
Measuring Range
- HL 100-960
- HRC 1-74.7
- HRB 1.2-140
- HB 28-1027
- HV 45-1230
- HS 4-112
- HRA 7-88.5
- SGM (rm) 118-3315 N/mm²
Power Source
- 1xAAA battery
Standard D type impact device
Application
- Universal
Maximum surface roughness of the test piece (Ra)
- 2 micrometers
Minimum weight of the test piece
- Direct measurement
- 5 kg
- On a firm support
- 2 kg
- Attached to a plate
- 0.05 kg
Minimum thickness of the test piece
- 5 mm
Minimum radius of curvature
- 30 mm
Package Contents
- Main unitHardness Tester LEEB INSIZE HDT-L411
- Test block D
- Small support ring
- Cleaning brush
- USB cable and software
Optional Accessories
- Test block DISH-BHLD
- Support ringsISH-PH-SP9
- A
- Cylindrical surface measured externally
- R10-15
- R14.5-30
- R25-50
- Cylindrical surface measured externally
- B
- Cylindrical surface measured internally
- R11-13
- R12.5-17
- R16.5-30
- Cylindrical surface measured internally
- C
- Spherical surface measured internally
- SR11-13
- SR12.5-17
- SR16.5-30
- Spherical surface measured internally
- D
- Spherical surface measured externally
- SR10-15
- SR14.5-30
- Spherical surface measured externally
- E
- Cylindrical surface measured externally
- R>10
- Cylindrical surface measured externally
- A
