High-Resolution Digital Measuring Microscope 5315-S710 INSIZE (5315-S710)
- Brand: INSIZE
- Product Code: IN5315-S710
- EAN: 6940561982411
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 3,258.00 EUR
Inc. Tax: 4,007.34 EUR

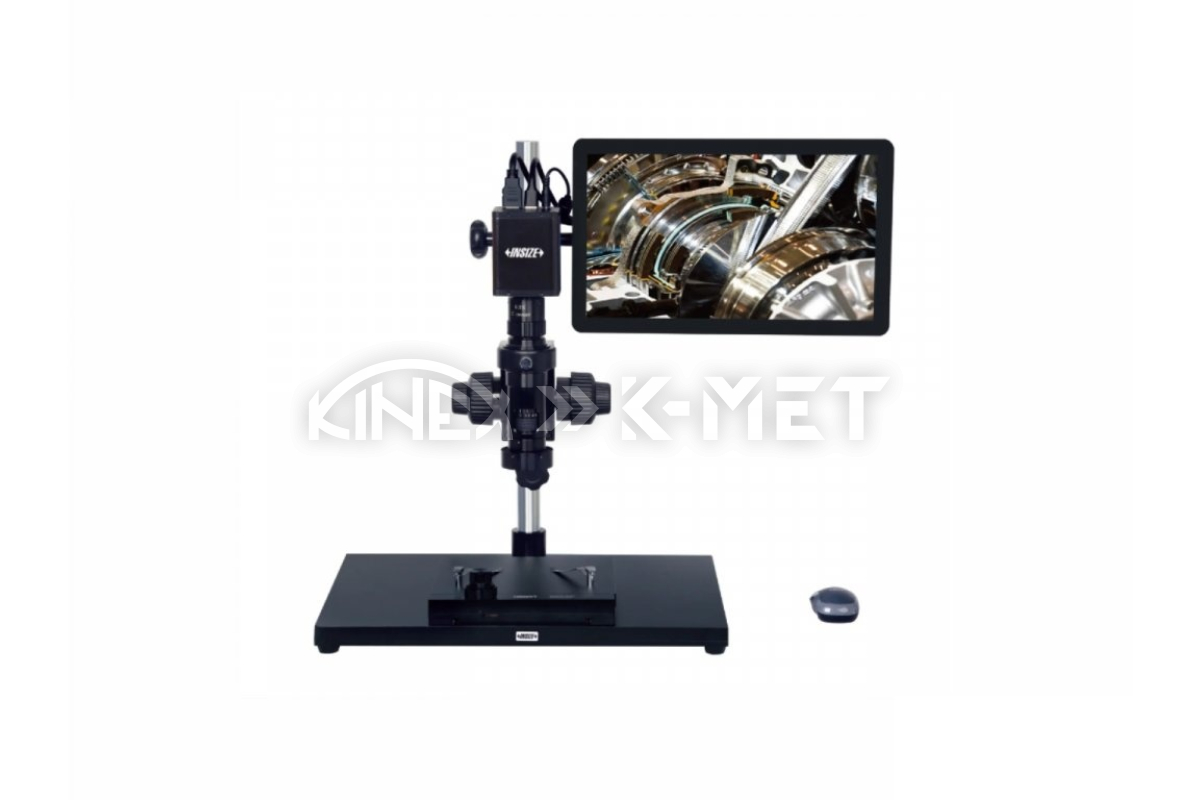

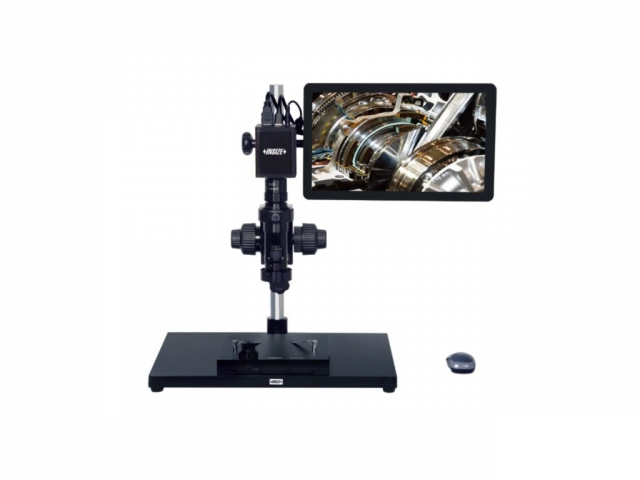

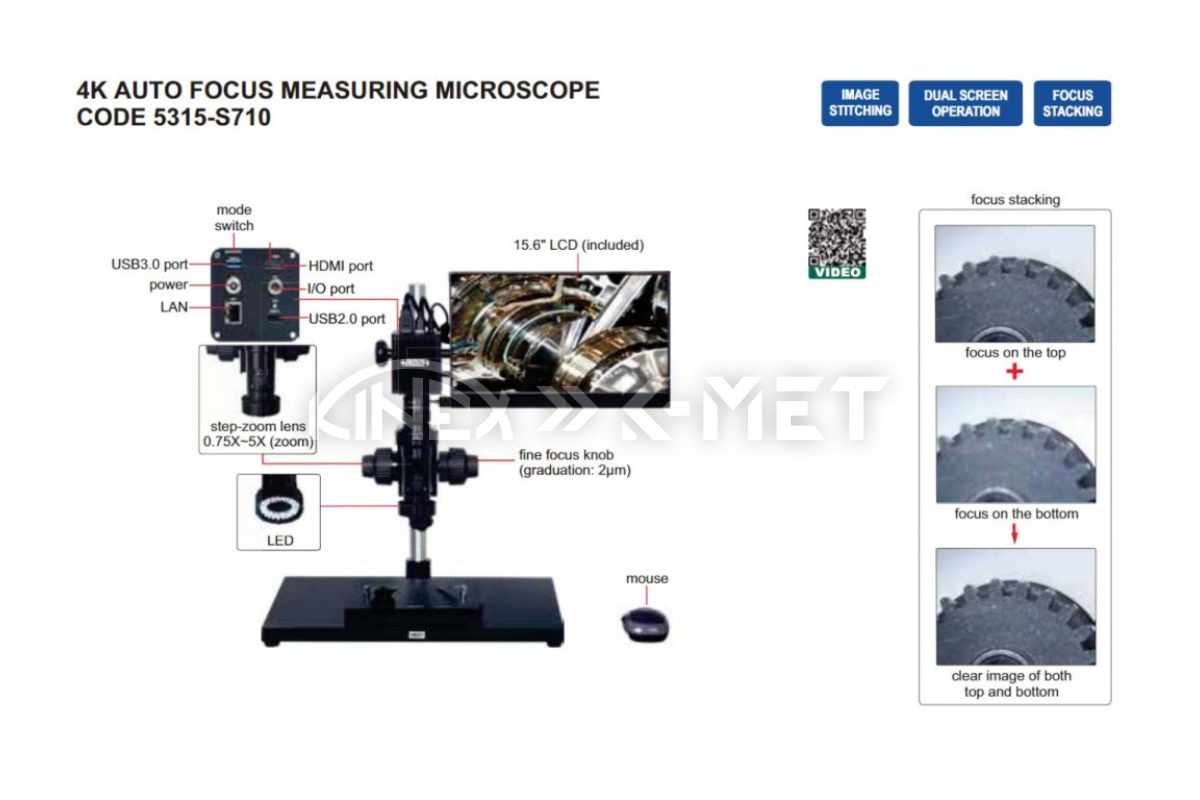

High-resolution 12M digital measuring microscope 5315-S710 with 15~100X magnification from INSIZE. Autofocus, switchable LCD mode and PC mode. Including software for PC.
- 12M image, 13.3" LCD display
- Switchable LCD mode and PC mode
- Captured images or videos can be saved to a memory card
- Data can be sent to Excel
- Automatic white balance
- Automatic exposure
- Software included
Technical Specification
Magnification
- 15X~100X
Sensor
- 1/7" CMOS
Pixel Count
- 12M
Resolution
- 1920x1080
Frame Rate
- 30 fps
Output
- HDMI/USB
Dimension
- 570x300x430 mm
Magnification and Measuring Accuracy (13.3" LCD display)
| Lens Magnification | Image Magnification | Measuring Accuracy |
| 0.75X | 15X | +- 20 µm |
| 1X | 20X | +- 20 µm |
| 1.5X | 30X | +- 20 µm |
| 2X | 40X | +- 20 µm |
| 2.5X | 50X | +- 20 µm |
| 3X | 60X | +- 20 µm |
| 3.5X | 70X | +- 20 µm |
| 4X | 80X | +- 10 µm |
| 4.5X | 90X | +- 10 µm |
| 5X | 100X | +- 10 µm |
Magnification, Focusing Distance, and Field of View (13.3" LCD display)
| Specification | Camera Adapter | |
| 0.5X (Included) | 1X (Optional) | |
| Magnification | 15~100X | 30~200X |
| Focusing Distance | 80+-2 mm | 80+-2 mm |
| Field of View | 20.0x11.2~5.5x3.1 mm | 10.0x5.6~2.7x1.5 mm |
Package Contents
- Digital Measuring Microscope with Display 5315-S710 INSIZE
- 0.5X Camera Adapter
- 1X Auxiliary Lens
- Calibration Standard
- 32 GB Memory Card
- X-Y Metal Stage
Optional Accessories
- 1X Camera Adapter (ISM-DL-CA1X)
- 2X Auxiliary Lens (ISM-DL-OB2X)
- Computer (ISM-DL-COMPUTER)
- LED Lighting (ISM-LED-9245R, ISM-LED-100L4)
- Auxiliary Lenses (ISM-DL-OB03X, OB05X, OB075X, OB1X, OB1D5X, OB2X)
