Horizontal Profile Projector ISP-A3000E INSIZE (ISP-A3000E)
- Brand: INSIZE
- Product Code: INISP-A3000E
- EAN: 6928640339523
- Weight: 220,00 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 12,898.60 EUR
Inc. Tax: 15,865.28 EUR

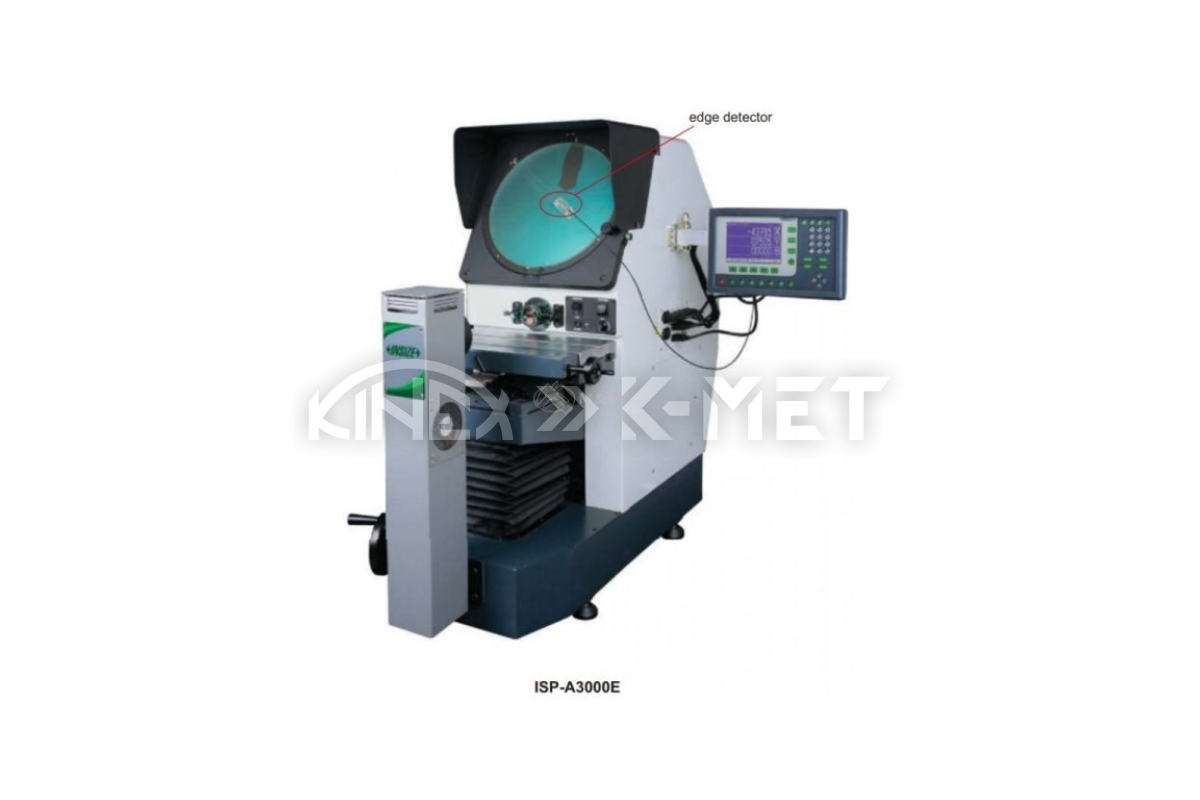

INSIZE Horizontal Profile Projector ISP-A3000E with edge detector, magnification accuracy +/-0.08% and measuring range in x/y/z axes (200x75x100) mm.
Specifications:
- Measuring range in x/y/z axes (200x75x100) mm
- Resolution 0.5µm
- Measurement accuracy (4+L/25)µm, (L is length in mm)
- Lens magnification 10x (included), 20x (optional), 50x (optional), 100x (optional)
- Field of view diameter 30 mm (for 10x magnification), 15 mm (for 20x magnification), 6 mm (for 50x magnification), 3 mm (for 100x magnification)
- Working distance 77.7 mm (for 10x magnification), 44.3 mm (for 20x magnification), 38.4 mm (for 50x magnification), 25.3 mm (for 100x magnification)
- Metal measuring surface (400x150) mm
- Max. workpiece weight 50 kg
- Crosshairs on the screen
- Contour illumination 24V/150W halogen lamp with adjustable brightness
- Surface illumination 12V/150W halogen lamp with adjustable position
- Projector screen diameter 300 mm, rotatable 0°-360°
- Data output: RS232C
- With edge detector
+ Service package of required services*
» professional installation
» complete setup for operation
» operator training
* Service prices are not included in the device price. Contact us for the exact service price.
