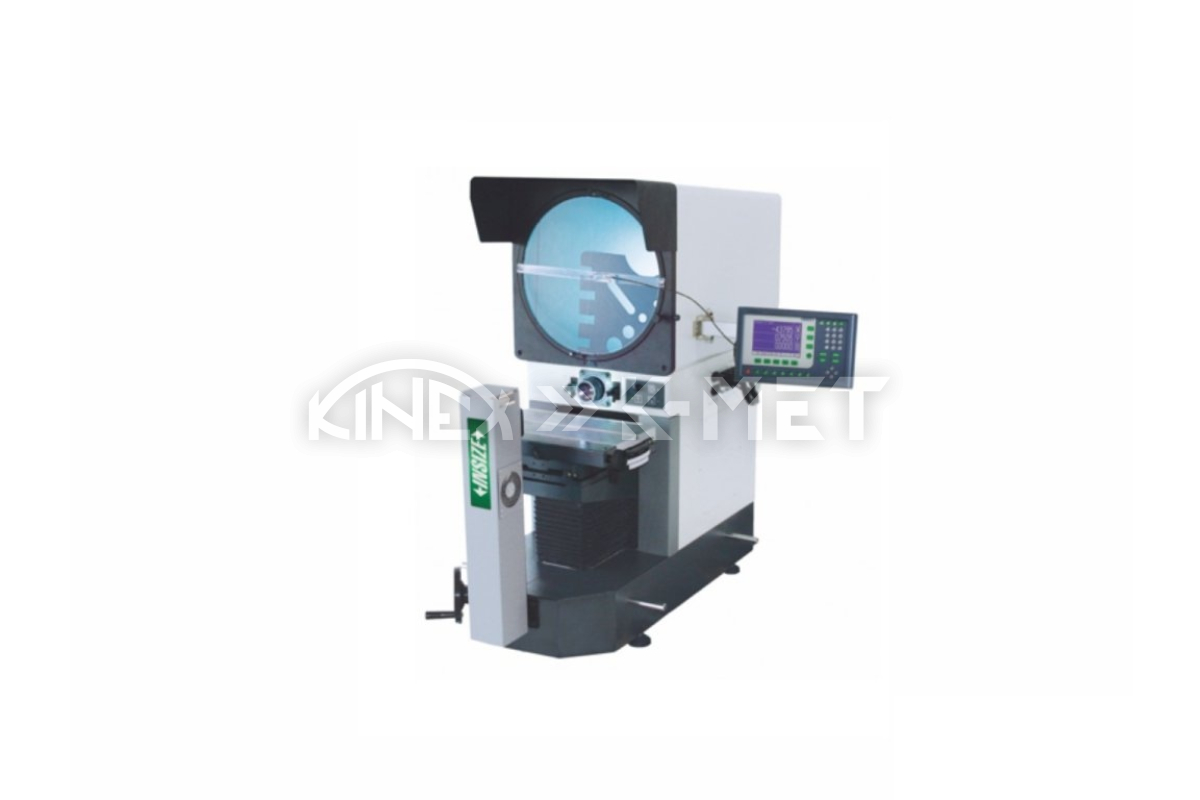

Horizontal Profile Projector ISP-A7000E INSIZE (ISP-A7000E)
- Brand: INSIZE
- Product Code: INISP-A7000E
- EAN: 6928640355158
- Weight: 306,00 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 21,619.40 EUR
Inc. Tax: 26,591.86 EUR
INSIZE brand profile projector with edge detector, measuring range in x/y axes (250x150) mm, resolution 0.5 µm.
SPECIFICATIONS:
- Measuring range in x/y axes (250x150) mm
- Resolution 0.5µm
- Accuracy (4+L/25)µm
- Lens magnification 5x (included), 10x, 20x (optional), 50x (optional), 100x (optional)
- Field of view with a diameter of 80 mm (for 5x magnification) 40 mm (for 10x magnification), 20 mm (for 20x magnification), 8 mm (for 50x magnification), 4 mm (for 100x magnification)
- Working distance 93.7 mm (for 5x magnification), 103.9 mm (for 10x magnification), 95.1 mm (for 20x magnification), 65.7 mm (for 50x magnification), 35 mm (for 100x magnification)
- Metal measuring surface (450x200) mm
- Magnification accuracy +/-0.08%
- Crosshair on the screen
- Max. weight of the measured object 50 kg
- Contour illumination 24V/150W halogen lamp with adjustable brightness
- Surface illumination 12V/150W halogen lamp with adjustable position
- The projector screen has a diameter of 400 mm with the possibility of rotating the screen by 0°- 360°
- Data output: RS232C, USB (output to Excel and CAD)
- With edge detector
+ Service package of required services*
» professional installation
» complete setup for operation
» operator training
* Service prices are not included in the device price. Contact us for the exact service price.
