Hydraulic Brinell hardness tester for rings and tubes ISHB-C161 INSIZE (ISHB-C161)
- Brand: INSIZE
- Product Code: INISHB-C161
- EAN: 6928640379284
- Weight: 15,50 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 6,860.00 EUR
Inc. Tax: 8,437.80 EUR

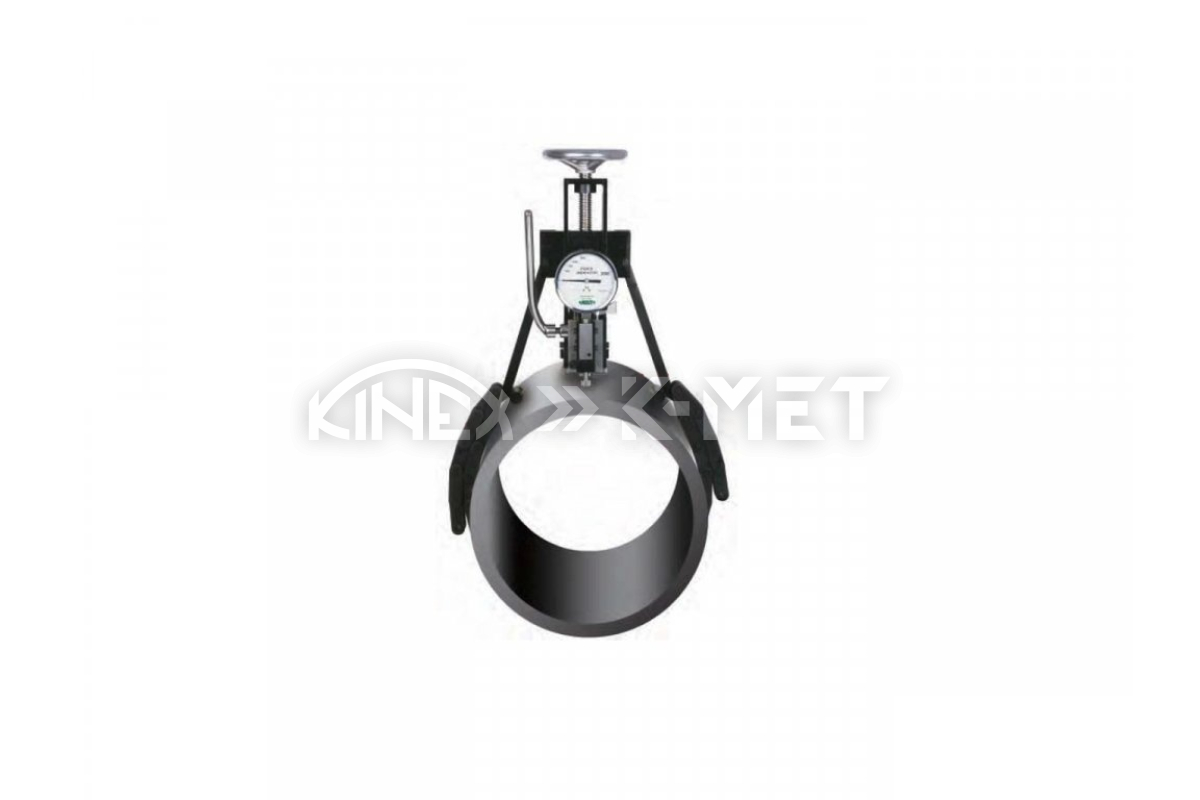

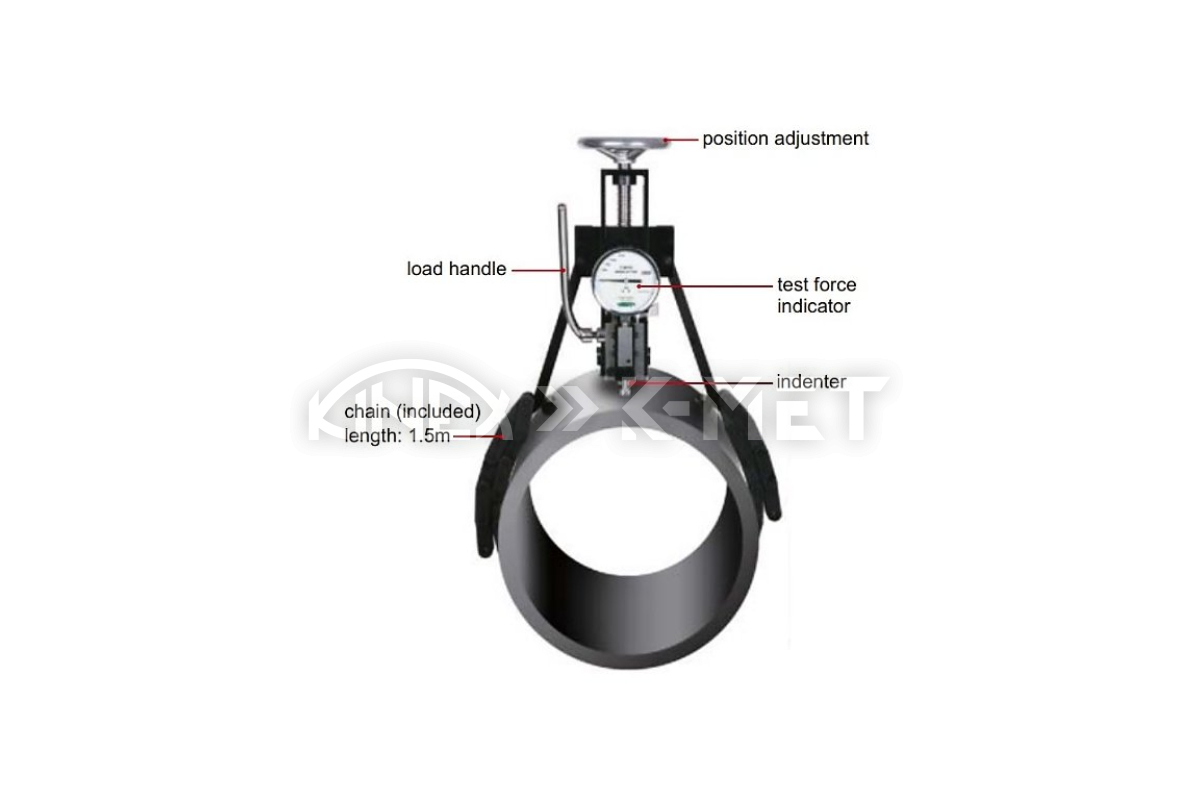

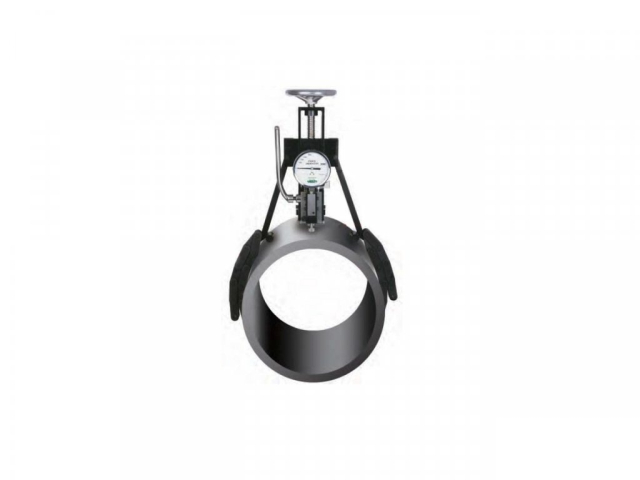

Brinell hardness tester ISHB-C161 from INSIZE with a test force of up to 3000 kg for measuring rings and tubes in the range of ø150~ø500 mm within the range of 32~650 HBW.
- Complies with ISO 6506 and ASTM E10
- For measuring the hardness of rings and tubes
- Including microscope and chain

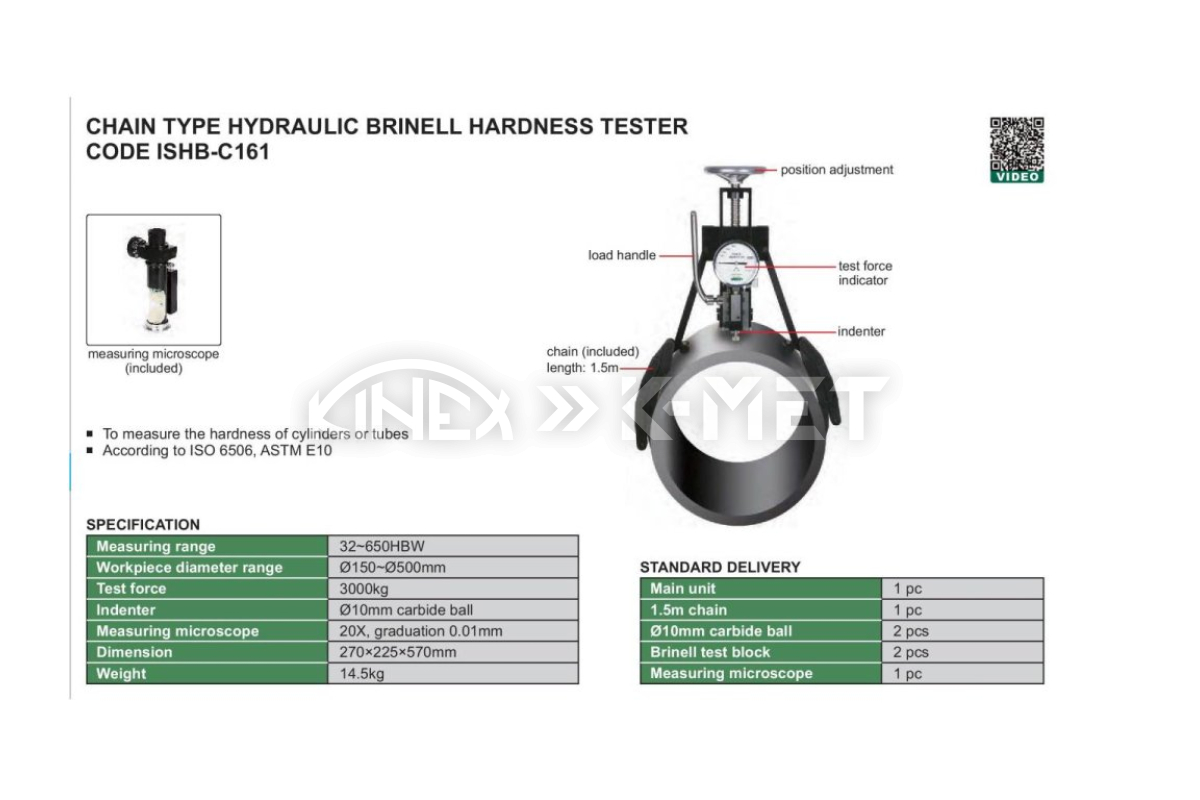

Technical specification
Measuring range
- 32~650 HBW
Measured object diameter range
- ø150~ø500 mm
Test force
- 3000 kg
Indenter
- ø10 mm carbide ball
Measuring microscope
- 20X
- 0.01 mm
Dimensions
- 270 x 225 x 570 mm
Weight
- 14.5 kg
Standard delivery includes
- Hydraulic Brinell hardness tester for rings and tubes ISHB-C161 INSIZE
- 1.5 m long chain
- ø10 mm carbide ball
- Brinell test standard
- Measuring microscope
+ Service package of necessary services*
» professional installation
» complete commissioning
» operator training
* Service prices are not included in the hardness tester price. Please contact us for the exact service price.
