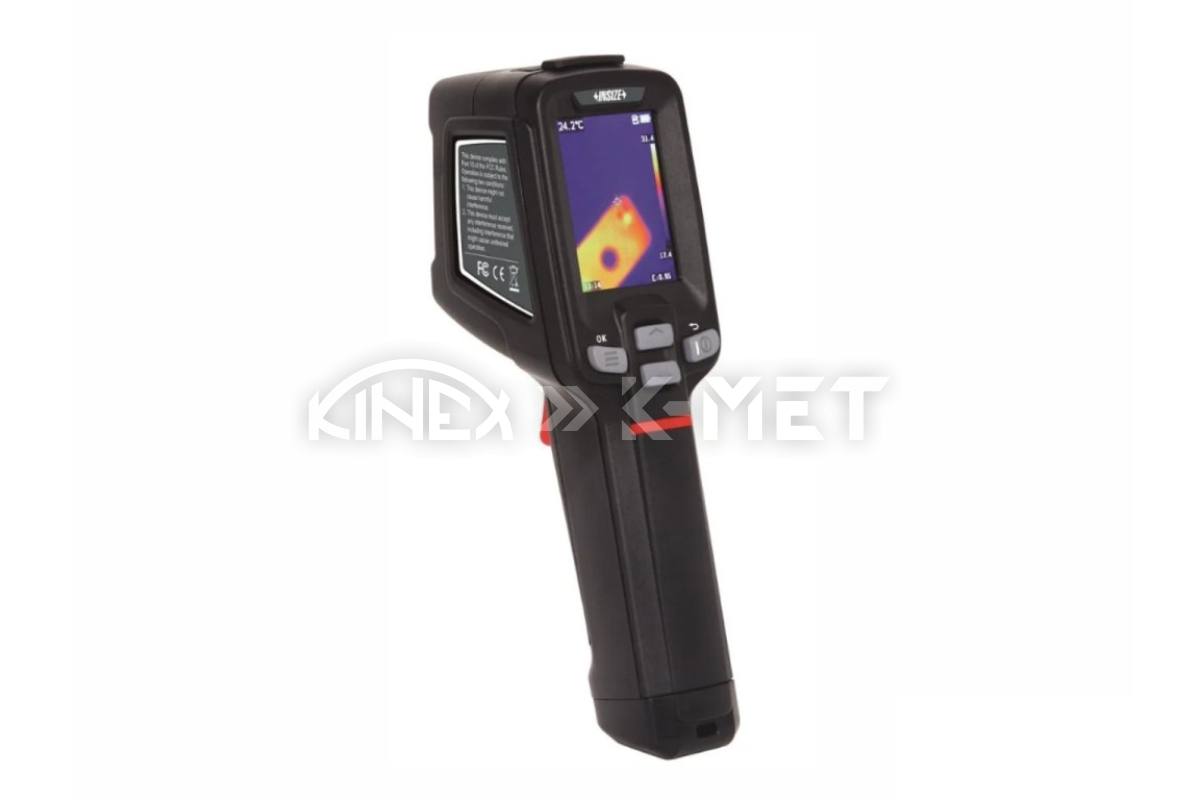

Infrared thermal imager 9132-T400 INSIZE (9132-T400)

Technical specification

• Thermal imager with infrared detector (basic type)
• Suitable for energy, mechanical engineering and electrical engineering, heating, ventilation and air conditioning, smart manufacturing, etc.
• Supports real-time super-resolution technology, 4x better image quality
• Real-time data and video transmission via mobile app
• Includes software and mobile app
• IP54 protection, 2-meter drop test

Imaging and optics

Resolution

• 256 x 192 @ 12 µm

Detector type

• Uncooled Vanadium Oxide

Frame rate

• 25Hz/9Hz

Temperature sensitivity

• 45mk

Focal length

• 3.2 mm

Field of view

• 56° x 48°

Spatial resolution

• 3.75 mrad

Focus

• Fixed focus

Measurement and analysis

Measurement range (automatic switching)

• -20° ~ 150°C
• 0° ~ 550°C

Accuracy

• ± 2°C or ± 2% (whichever is greater)

Measurement spot

• Center spot, fixed temperature measurement

Temperature alarm

• Yes

Image display

Display

• 2.4" LCD

Image mode

• IR, VIS, MIF, PIP

Functions

Laser

• Laser indicator

Recording

• Photos and videos

Storage and connectivity

Data storage

• Built-in 16GB
• JPG with temperature information
• IRGD video with temperature information

USB

• Type C

Tripod interface

• Yes

Mobile app

• Yes

Power supply

Battery type

• Rechargeable Li-ion battery

Operating time

• 11 hours

Charging time

• 90% full charge in 2.5 hours

Other parameters

Operating temperature

• -15 ~ 50°C

Protection

• IP54
• 2-meter drop test

Certifications

• CE
• ROHS

Dimensions

• 194x61.5x76 mm

Weight

• 375 g

*3/25
