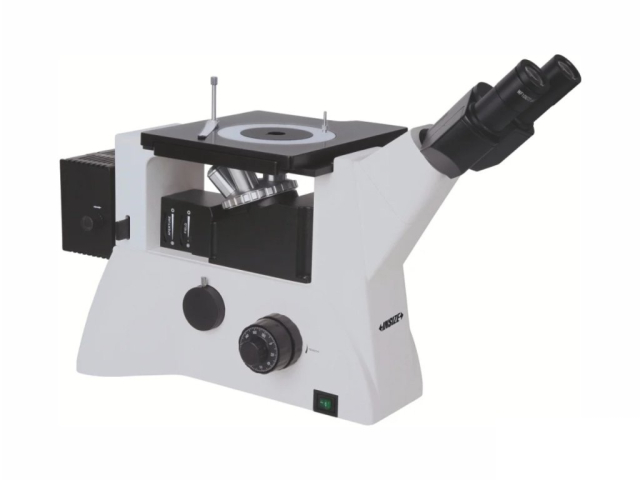

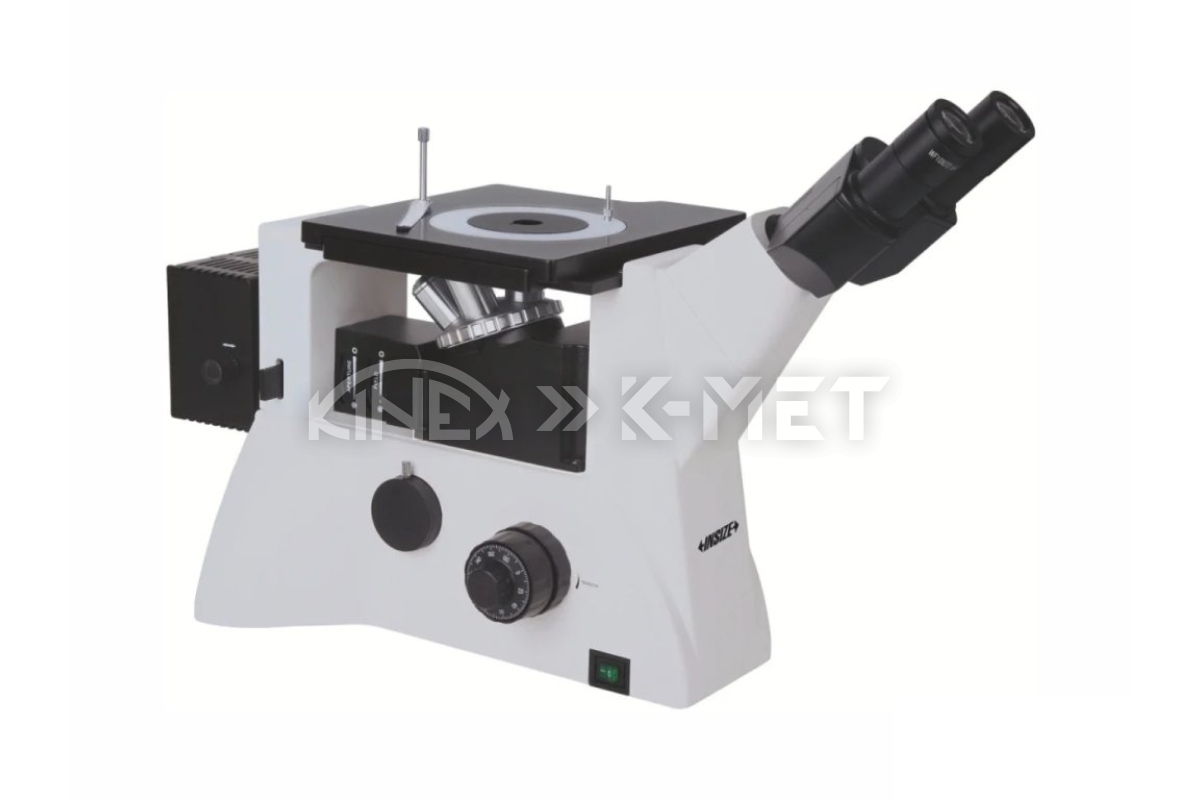

Inverted Metallographic Microscope 5103-M1000BD INSIZE (5103-M1000BD)

The 5103-M1000BD metallographic microscope features:

• Dark field objectives for observing samples that are indistinguishable from the background
• Bright field objectives for observing samples with contrast or color (i.e., stained histological samples)
• Infinity correction system, polarized observation
• Köhler illumination creates uniform sample illumination and ensures the light source image is not visible in the final image
• The 50x magnification objective is a spring-loaded objective (it has a spring-loaded front lens to prevent damage to the objective and the sample)

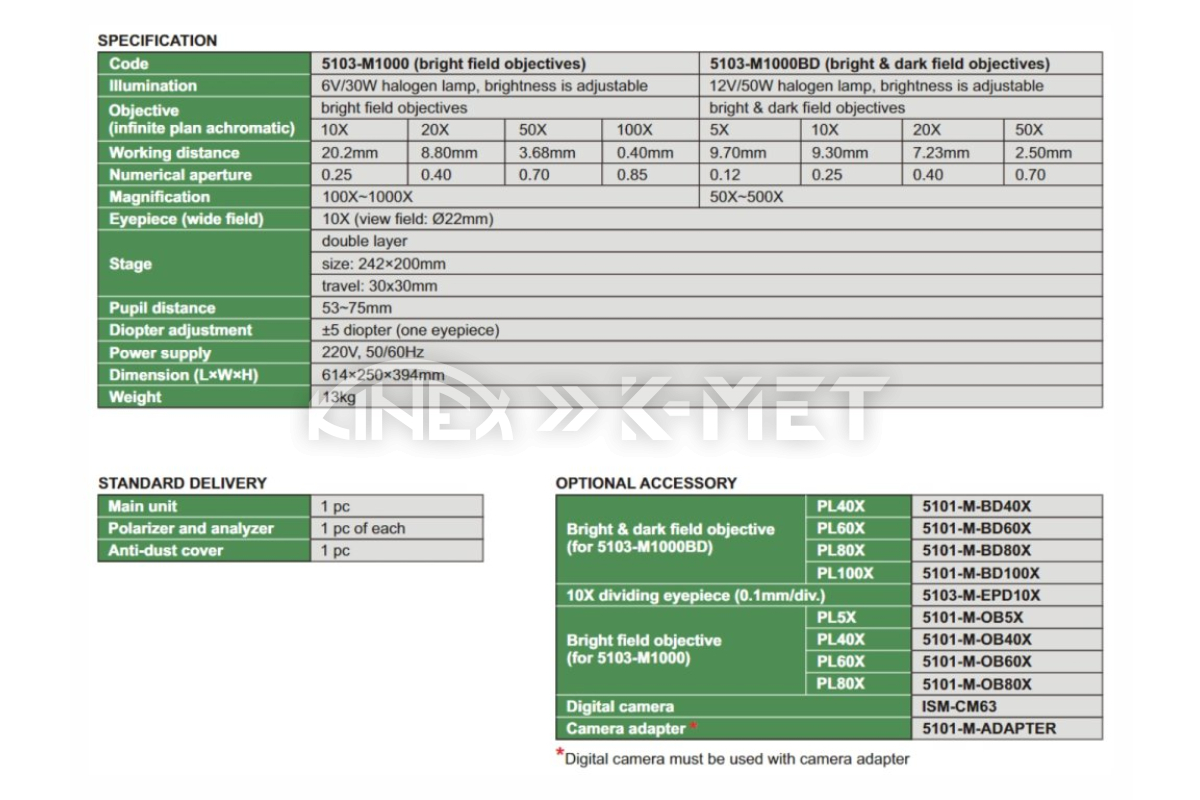

Technical Specification

Illumination

• 12 V / 50 W (halogen lamp with adjustable brightness)

Objectives (Planachromatic, for Dark and Bright Field)

• 5x Objective
  • Working Distance: 9.70 mm
  • Numerical Aperture: 0.12


• 10x Objective
  • Working Distance: 9.30 mm
  • Numerical Aperture: 0.25


• 20x Objective
  • Working Distance: 7.23 mm
  • Numerical Aperture: 0.40


• 50x Objective
  • Working Distance: 2.50 mm
  • Numerical Aperture: 0.70

Magnification

• 50-500x

Eyepieces (Wide-field)

• Magnification: 10x
• Field of View: Ø22 mm
• Adjustable Interpupillary Distance: 53-75 mm
• Diopter Adjustment: ± 5 diopters (on one eyepiece)

Stage

• Mechanical double layer
• Dimensions: 242×200 mm
• Travel: 30×30 mm

Power Supply

• 220 V, 50/60 Hz

Dimensions

• 614x250x394 mm

Weight

• 13 kg

Package Contents

• 5103-M1000BD Metallographic Microscope
• Polarizer and Analyzer / 1 pc each
• Dust Cover / 1 pc

Optional Accessories

• 10x Dividing Eyepiece (0.1 mm/div.)(5103-M-EPD10X)
• Digital Camera(ISM-CM63)
• Camera Adapter(5101-M-ADAPTER)*
• Objectives for Dark and Bright Field
  • PL40X(5101-M-BD40X)
  • PL60X(5101-M-BD60X)
  • PL80X(5101-M-BD80X)
  • PL100X(5101-M-BD100X)

*A camera adapter must be purchased to connect a digital camera

+ We recommend ordering a Service Package*
» professional installation
» complete setup for operation
» operator training

*Service prices are not included in the product price. Please contact us for exact service pricing.
