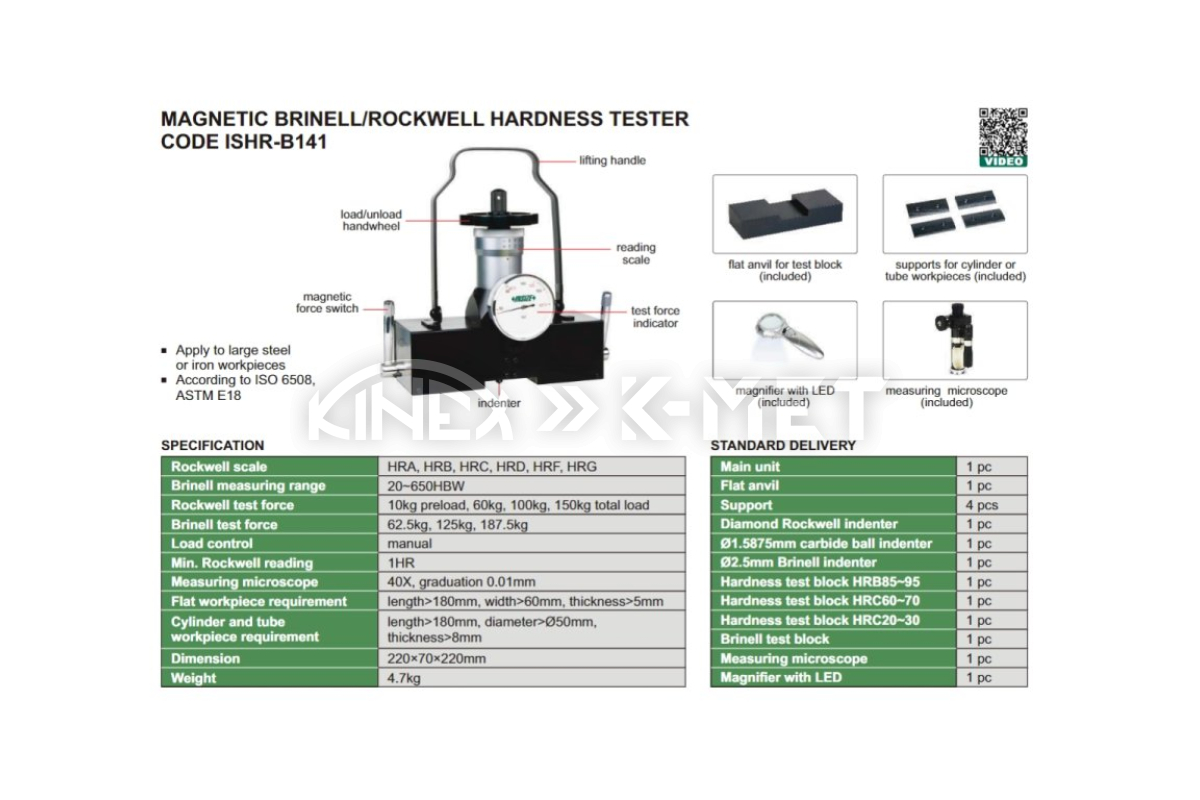

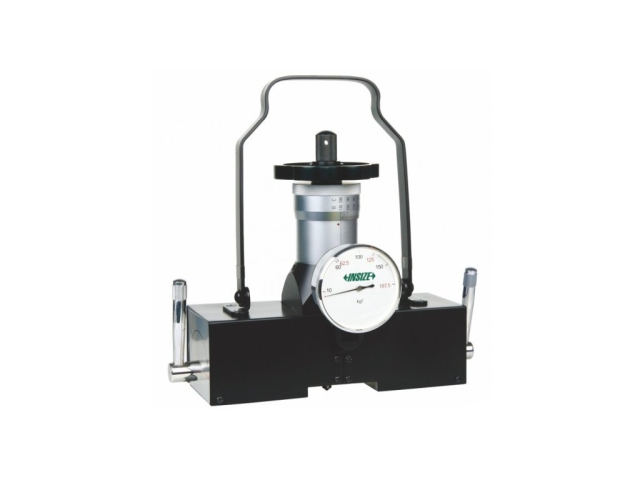

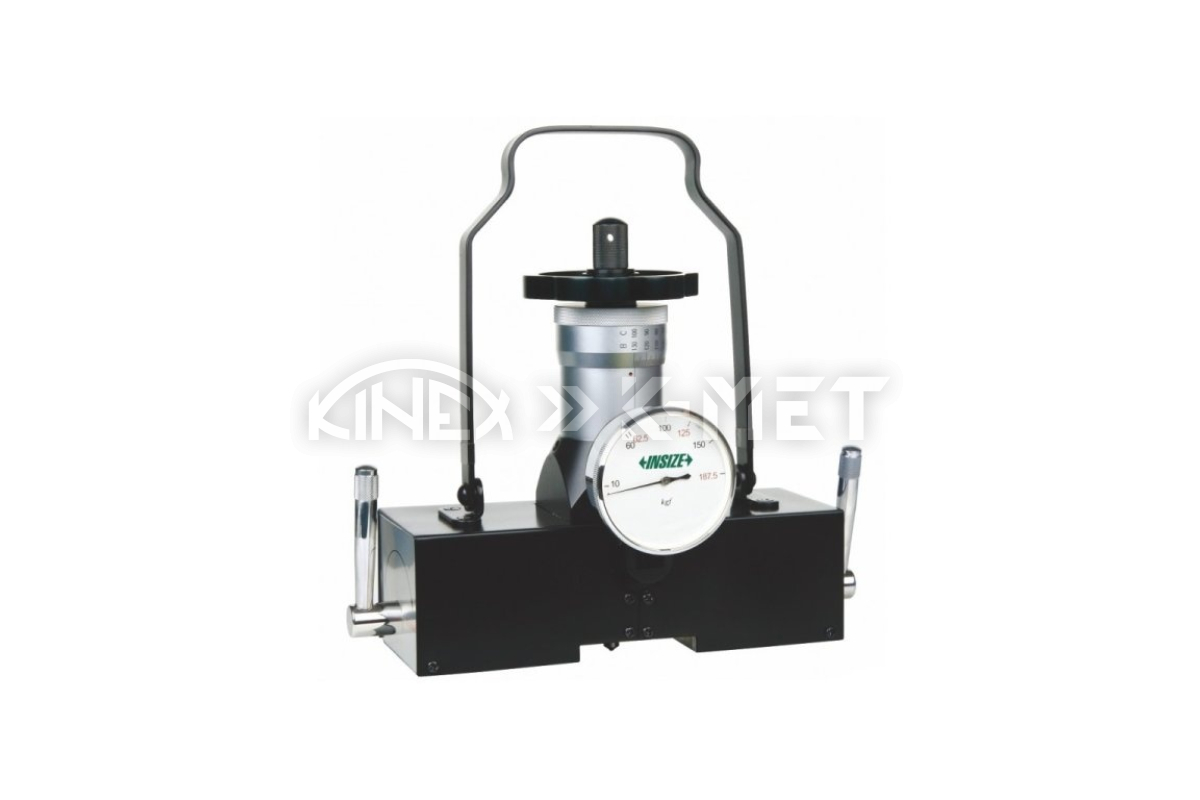

ISHR-B141 Magnetic Analog Brinell/Rockwell Hardness Tester INSIZE (ISHR-B141)

• Conforms to ISO 65080 and ASTM E18
• For large magnetic surfaces (steel and iron)
• Carrying handle

Technical Specification

Rockwell Scale

• HRA
• HRB
• HRC
• HRD
• HRF
• HRG

Measuring Range (Brinell)

• 20-650 HBW

Rockwell Test Force

• 10kg (preliminary)
• 60 kg
• 100 kg
• 150 kg

Brinell Test Force

• 62.5 kg
• 125 kg
• 187.5 kg

Rockwell Division

• 1HR

Microscope

• Magnification
  • 40×
• Division
  • 0.01 mm

Flat Parts (minimum)

• Length
  • 180 mm
• Diameter
  • 60 mm
• Thickness
  • 5 mm

Round and Tubular Parts (minimum)

• Length
  • 180 mm
• Diameter
  • 50 mm
• Thickness
  • 8 mm

Dimensions

• 220×70×220 mm

Weight

• 4.7 kg

Package Contents

• INSIZE ISHR-B141 Magnetic Analog Brinell/Rockwell Hardness Tester
• Test anvil
• Supports (4x)
• Rockwell diamond indenter
• Carbide ball indenter Ø1.5875 mm
• Brinell ball indenter Ø2.5 mm
• Standard
  • HRB85-95
  • HRC60-70
  • HRC20-30
• Measuring microscope
• LED magnifier
