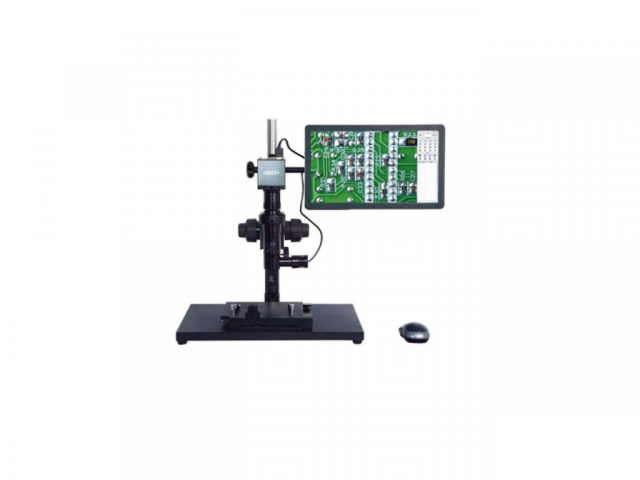

ISM-DL302 Digital Measuring Microscope with High Magnification and Display INSIZE (ISM-DL302)
- Brand: INSIZE
- Product Code: INISM-DL302
- EAN: 6940561942132
- Weight: 11,00 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 3,186.00 EUR
Inc. Tax: 3,918.78 EUR

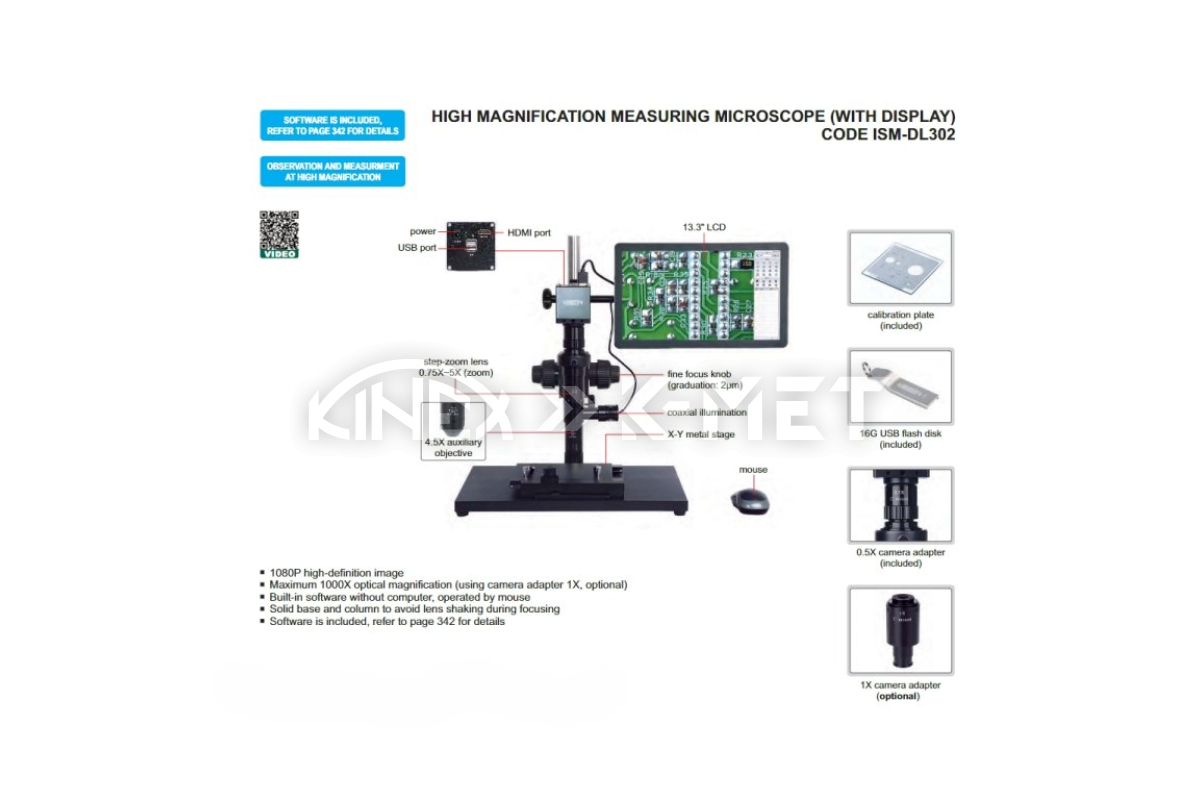

INSIZE ISM-DL302 digital measuring microscope with high magnification 78~504X, with display, 1080P resolution and measurement using its own software, thus without the need for PC connection. Measured values can be recorded in Excel.
- 1080P image, 13.3" LCD display
- Built-in software without PC required, controlled by mouse (included)
- Captured images can be saved to USB
- Data can be sent to Excel
- Massive base and stand

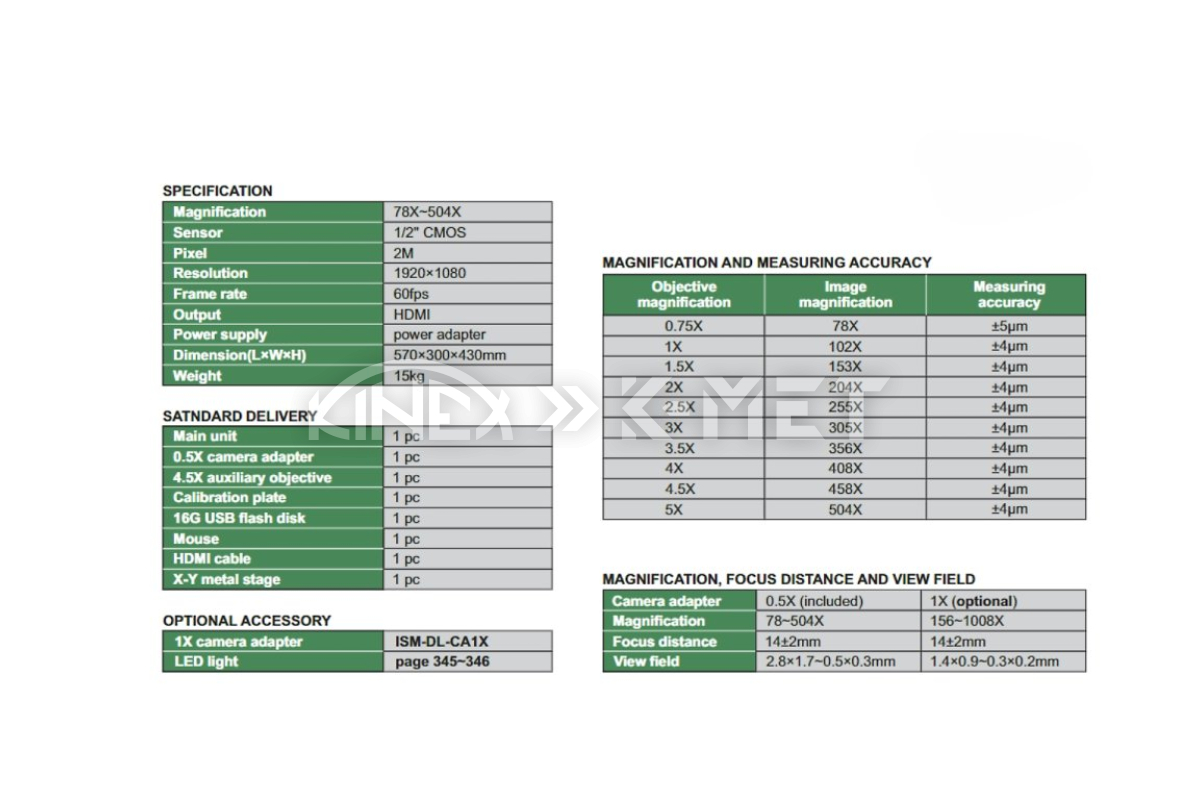

Technical specification
Magnification
- 78~504X
Sensor
- 1/2" CMOS
Pixel count
- 2M
Resolution
- 1920x1080
Frame rate
- 60 fps
Output
- HDMI
Weight
- 15 kg
Magnification and measurement accuracy
| Lens magnification | Image magnification | Measurement accuracy |
| 0.75X | 78X | +- 5 µm |
| 1X | 102X | +- 4 µm |
| 1.5X | 153X | +- 4 µm |
| 2X | 204X | +- 4 µm |
| 2.5X | 255X | +- 4 µm |
| 3X | 305X | +- 4 µm |
| 3.5X | 356X | +- 4 µm |
| 4X | 408X | +- 4 µm |
| 4.5X | 458X | +- 4 µm |
| 5X | 504X | +- 4 µm |
Magnification, focusing distance and field of view
| Camera adapter | 0.5X (included) | 1X (optional) |
| Magnification | 78~504X | 156~1008X |
| Focusing distance | 14+-2 mm | 14+-2 mm |
| Field of view | 2.8x1.7~0.5x0.3 mm | 1.4x0.9~0.3x0.2 mm |

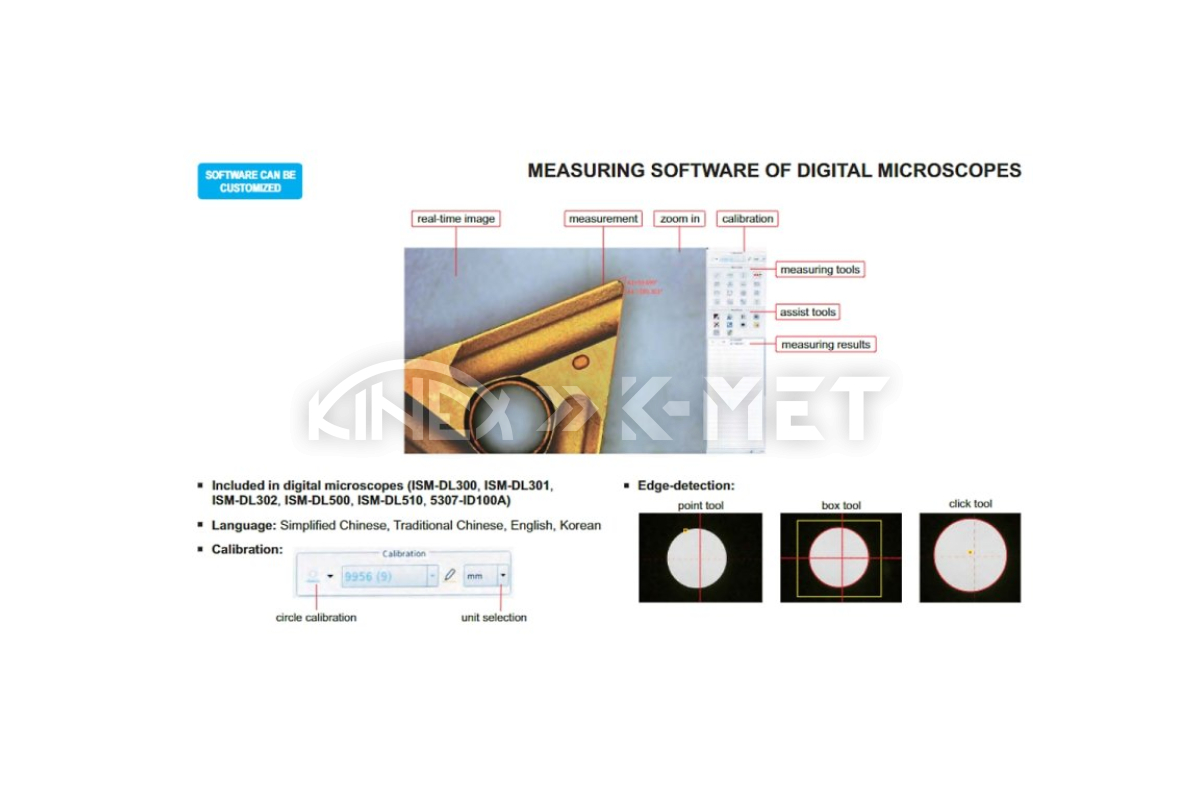

Software
Software with edge detection, calibration function, comparison, reticle
Language
- English, Korean, Chinese (Simplified and Traditional)
Output
- Excel

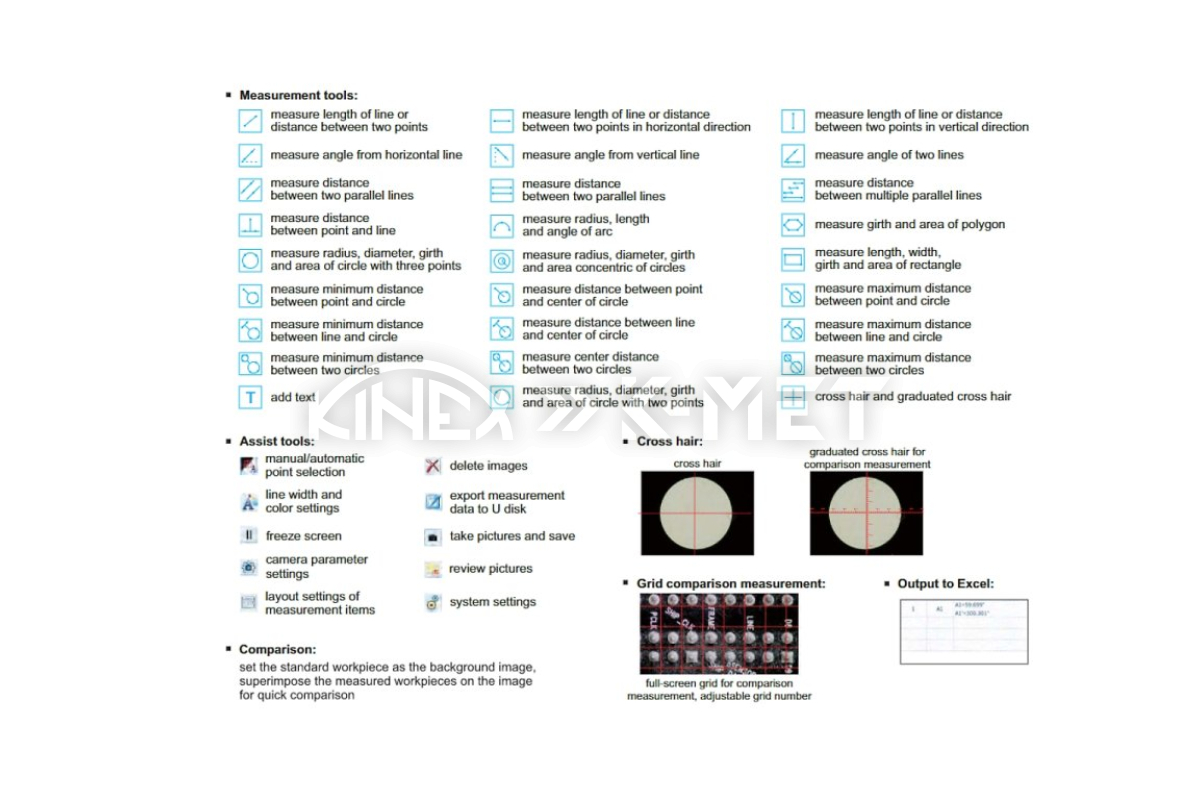

Measurement functions
- Measures line length or distance between two points
- Measures distance between parallel lines
- Measures radius, length and angle of an arc
- Measures distance between a point and a line
- Measures distance between a line and the center of a circle
- Measures length, width, perimeter and area of a rectangle
- Measures minimum distance between a point and a circle
- Measures angle of two lines
- Measures radius, diameter, perimeter and area of concentric circles
- Measures perimeter and area of a polygon
- Measures diameter, radius, perimeter and area of a circle with three points
- Measures distance between centers of two circles
- Option to add text
- Option to display reticle
Package contents
- INSIZE ISM-DL302 Digital Measuring Microscope with High Magnification and Display
- 0.5X camera adapter
- 4.5X auxiliary objective lens
- Standard gauge
- 16 GB USB flash drive
- Mouse
- HDMI cable
- X-Y metal stage
Optional accessories
- 1X camera adapter (ISM-DL-CA1X)
- LED lighting + controller (ISM-LED-9245R, ISM-LED-100L4+ISM-LED-CTRL)
