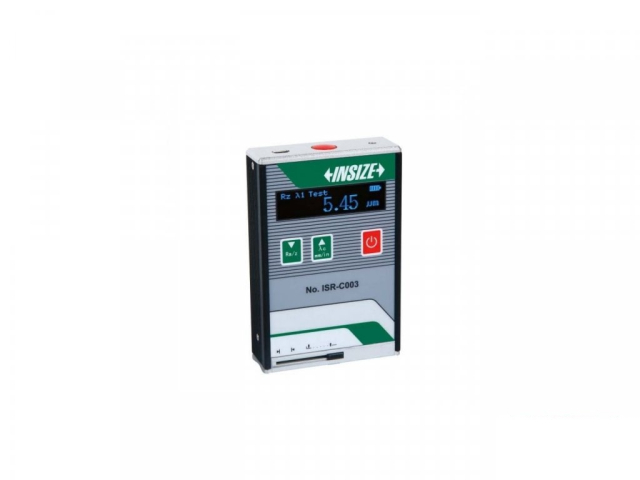

ISR-C003 Workshop Roughness Tester INSIZE (ISR-C003)
- Brand: INSIZE
- Product Code: INISR-C003
- EAN: 6928640385896
- Weight: 1,54 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 683.00 EUR
Inc. Tax: 840.09 EUR
INSIZE ISR-C003 roughness tester with a range in parameters Ra, Rq: 0.05~15 µm and in parameters Rz, Rt: 0.1~50 µm with a resolution of 0.01 µm.
- For measuring flat surfaces
- Automatic shutdown
Technical specification
Parameters
- Ra, Rz, Rq, Rt
Range
- Ra, Rq
- 0.05~15 µm
- Rz, Rt
- 0.1~50 µm
Accuracy
- +- 10 %
Resolution (Ra)
- 0.01 µm
Scanning head
- Type
- Piezoelectric
- Stylus radius / angle
- 10 µm / 90°
- Material
- Diamond
Measuring force
- 5 mN
Measuring unit
- µm/µin
Cut off
- 0.25 / 0.8 / 2.5 mm
Evaluation length
- 1.25 mm for cut off 0.25 mm
- 4 mm for cut off 0.8 mm
- 5 mm for cut off 2.5 mm
Traverse speed
- 0.75 mm/s
Power supply
- Integrated battery
Dimensions
- 106x70x24 mm
Weight
- 200 g
Package contents
- INSIZE ISR-C003 roughness tester
- Standard
- AC/DC adapter
Optional accessories
- Shaft fixture
