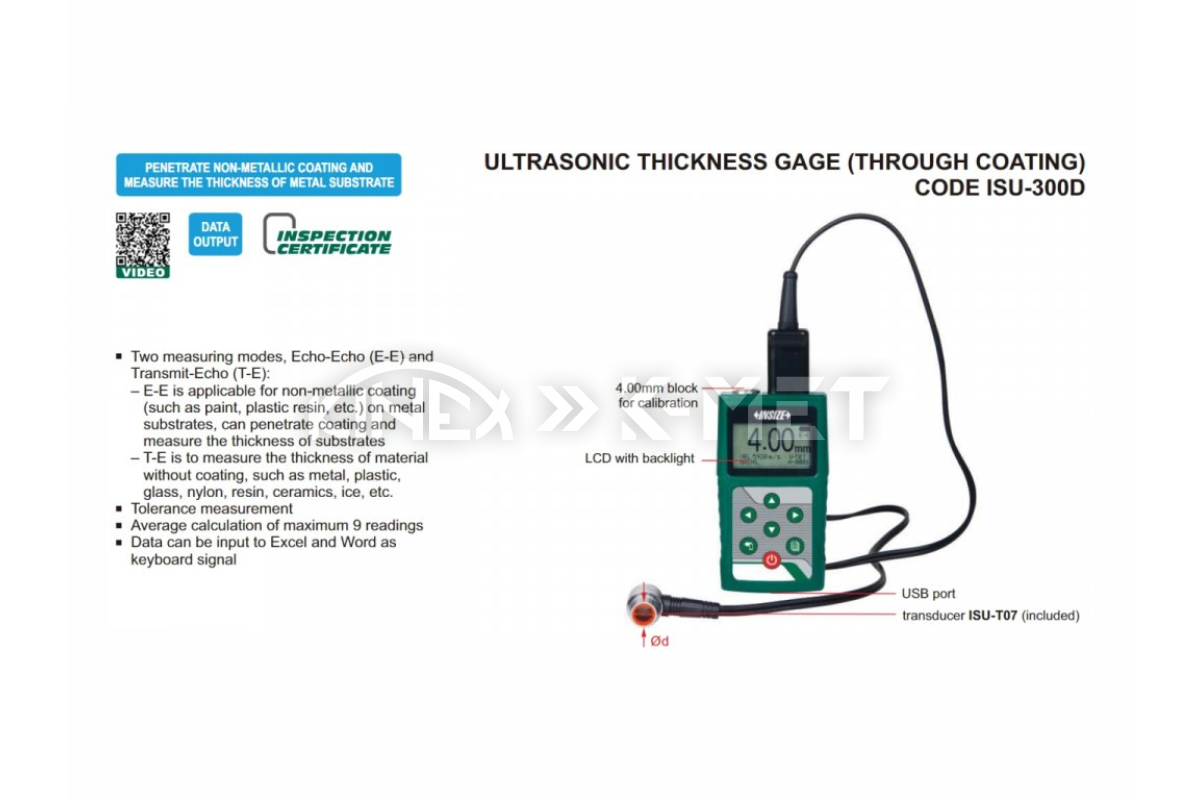

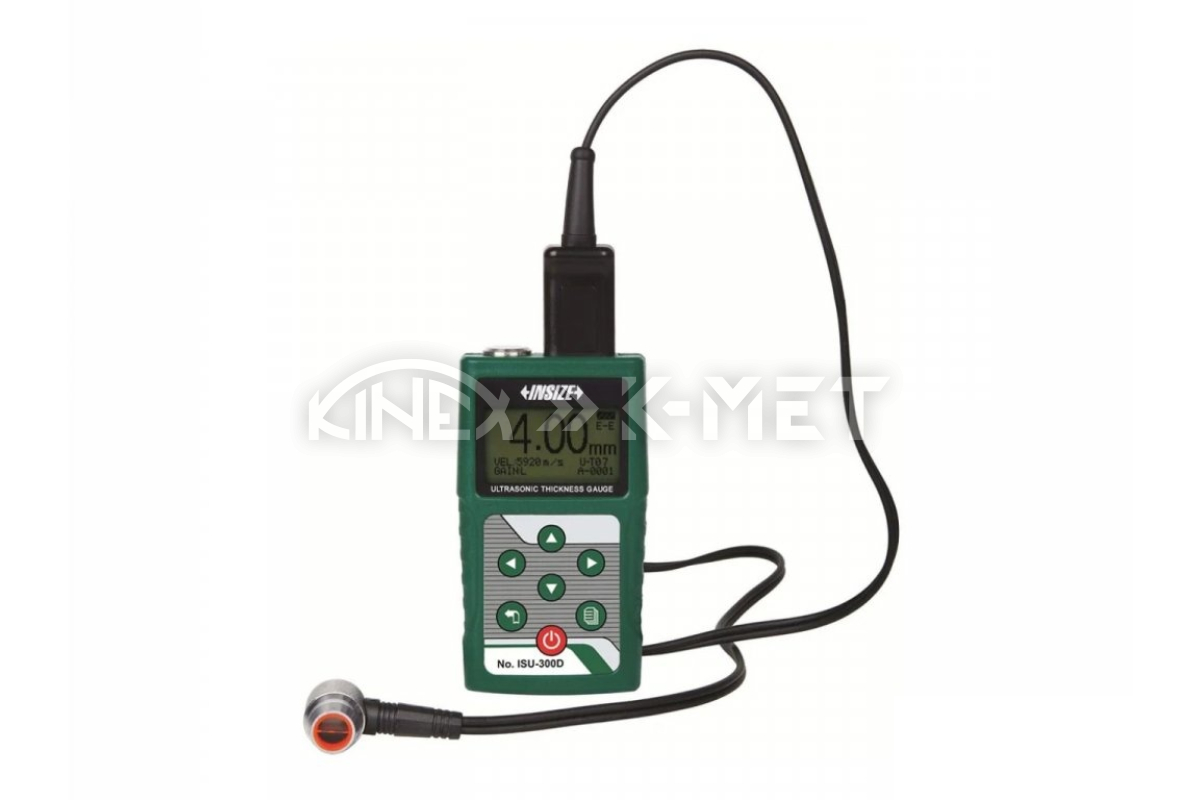

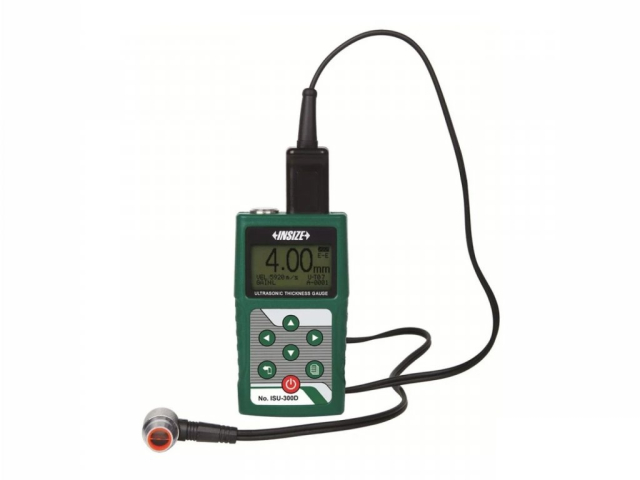

ISU-300D Ultrasonic Thickness Gauge INSIZE (ISU-300D)

• Two measurement modes - Echo-Echo (E-E) and Transmit-Echo (T-E)
  • E-E is applicable for non-metallic coatings (such as paint, plastic resin, etc.) on metal substrates, it can penetrate the coating and measure the wall thickness
  • T-E is for measuring the thickness of uncoated material, such as metal, plastic, glass, nylon, resin, ceramic, ice, etc.
• Tolerance measurement
• Average calculation from a maximum of 9 readings
• Data can be entered into Excel and Word as keyboard signals

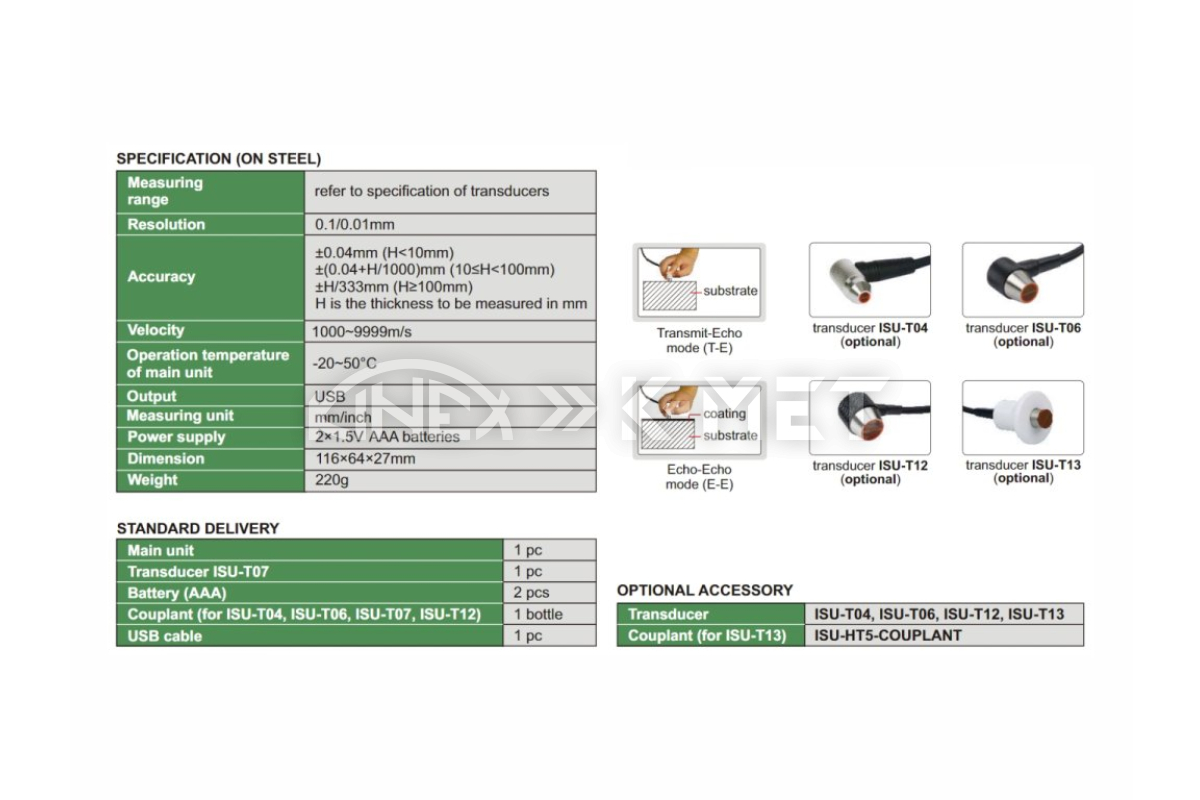

Technical Specification

Measuring Range

• see transducer specifications

Resolution

• 0.1 mm
• 0.01 mm

Accuracy(H is the measured thickness in mm)

• ±0.04 mm (H<10 mm)
• ±(0.04+H/1000) mm (10≤H<100 mm)
• ±H/333 mm (H≥100 mm)

Velocity

• 1000~9999 m/s

Working Temperature

• -20~50°C

Data Output

• USB

Measuring Units

• mm
• inch

Power Supply

• 2x 1.5 V AA batteries

Dimensions

• 116x64x27 mm

Weight

• 220 g

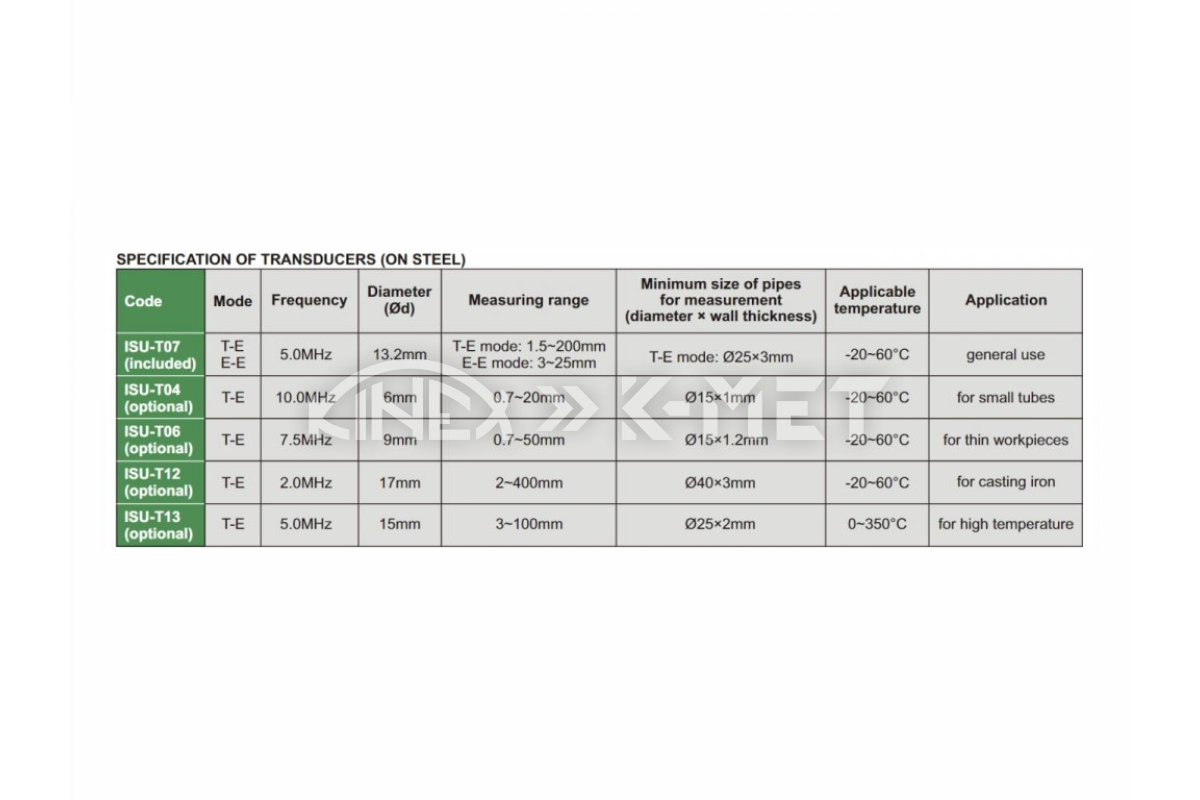

Transducer Specifications

ISU-T07(included)

• Mode: T-E and E-E
• Frequency: 5 MHz
• Diameter: ⌀13.2 mm
• Measuring Range: T-E (1.5~200 mm), E-E (3~25 mm)
• Min. Pipe Size (Diameter x Wall Thickness): T-E (⌀25x3 mm)
• Working Temperature: -20~60°C
• Application: general purpose

ISU-T04(optional)

• Mode: T-E
• Frequency: 10 MHz
• Diameter: ⌀6 mm
• Measuring Range: 0.7~20 mm
• Min. Pipe Size (Diameter x Wall Thickness): ⌀15x1 mm
• Working Temperature: -20~60°C
• Application: small pipes

ISU-T06(optional)

• Mode: T-E
• Frequency: 7.5 MHz
• Diameter: ⌀9 mm
• Measuring Range: 0.7~50 mm
• Min. Pipe Size (Diameter x Wall Thickness): ⌀15x1.2 mm
• Working Temperature: -20~60°C
• Application: thin parts

ISU-T12(optional)

• Mode: T-E
• Frequency: 2 MHz
• Diameter: ⌀17 mm
• Measuring Range: 2~400 mm
• Min. Pipe Size (Diameter x Wall Thickness): ⌀40x3 mm
• Working Temperature: -20~60°C
• Application: cast iron

ISU-T13(optional)

• Mode: T-E
• Frequency: 5 MHz
• Diameter: ⌀15 mm
• Measuring Range: 3~100 mm
• Min. Pipe Size (Diameter x Wall Thickness): ⌀25x2 mm
• Working Temperature: 0~350°C
• Application: for high-temperature parts

Package Contents

• Ultrasonic Thickness GaugeISU-300D(1 pc)
• TransducerISU-T07(1 pc)
• AA Batteries (2 pcs)
• Coupling Agent (1 pc)
• USB Cable (1 pc)

Optional Accessories

• Transducers - see transducer specifications
• Coupling AgentISU-HT5-COUPLANT
