LEEB hardness tester portable ISH-PHB INSIZE (ISH-PHB)
- Brand: INSIZE
- Product Code: INISH-PHB
- EAN: 6928640325229
- Weight: 4,24 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 467.00 EUR
Inc. Tax: 574.41 EUR

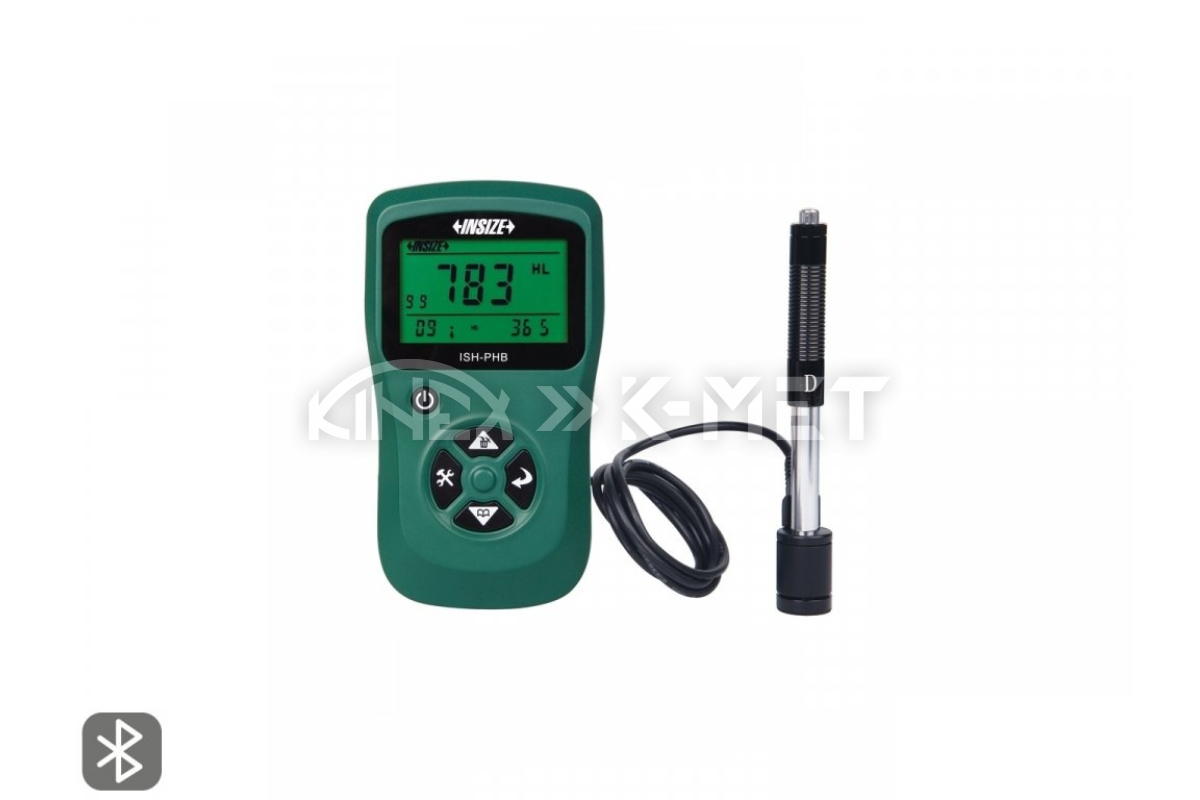

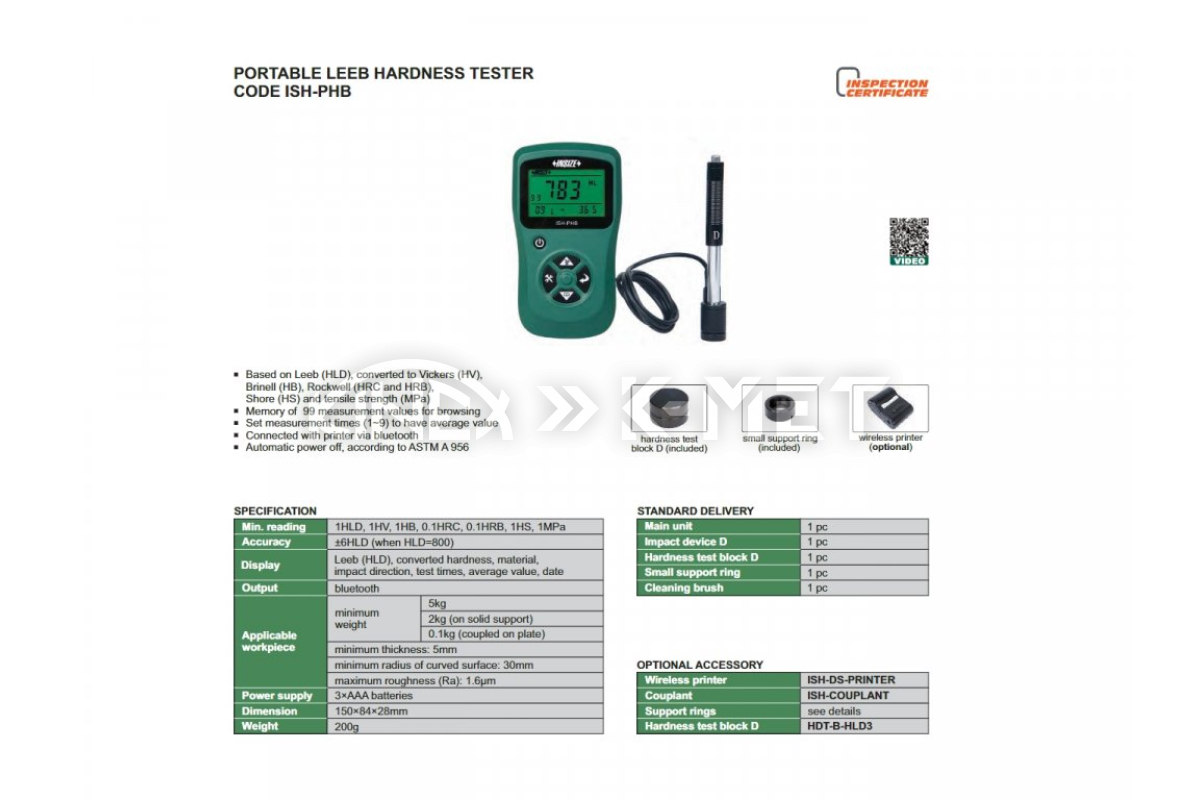

LEEB hardness tester ISH-PHB with external probe from INSIZE with memory up to 99 records, measurement accuracy +/-6 HLD. Data output via Bluetooth possible.
- Conforms to ASTM A 956
- Basic measurement in Leeb (HLD), can be converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRB), Shore (HS) and MPa
- Memory for up to 99 measurements
- Setting the number of measurements (1~9) to display average values
- Can be connected to a printer via Bluetooth
- Automatic shutdown
Resolution
- 1HLD
- 1HV
- 1HB
- 0.1HRC
- 0.1 HRB
- 1HS
- 1MPa
Accuracy
- +-6HLD (HLD=800)
Display
- Leeb (HLD)
- Converted hardness
- Material
- Impact direction
- Number of tests
- Average value
- Date
Measured object
- Minimum weight
- 5 kg
- 2 kg (on a solid base)
- 0.1 kg (connected)
- Minimum thickness
- 5 mm
- Minimum radius of curved surface
- 30 mm
- Maximum roughness (Ra)
- 1.6 µm
Package contents
- LEEB hardness tester portable INSIZE ISH-PHB
- Type D probe
- Type D standard
- Small support ring
- Cleaning brush
Optional accessories
- Wireless printer (ISH-DS-PRINTER)
- Coupling gel (ISH-COUPLANT)
- Support rings
- Type D standard (HDT-B-HLD3)
