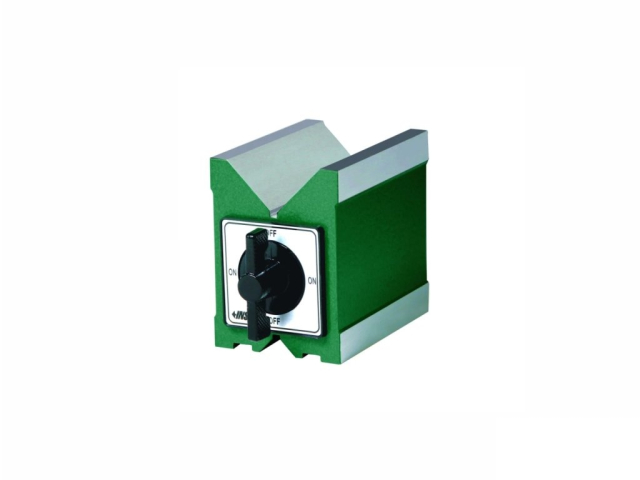

Magnetic V-Block 100x70x95 mm INSIZE (6801-1202)
- Brand: INSIZE
- Product Code: IN6801-1202
- EAN: 6928640320637
- Weight: 4,13 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 137.00 EUR
Inc. Tax: 168.51 EUR

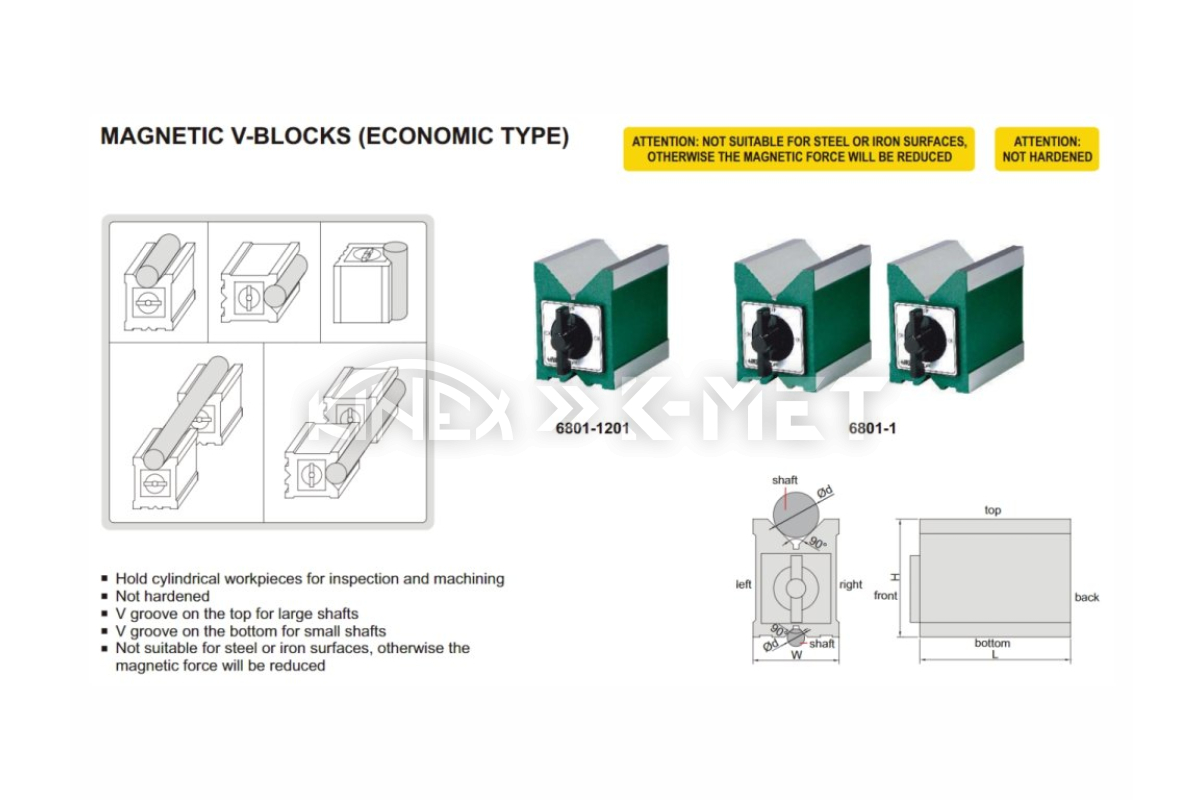

Magnetic V-block with dimensions 100x70x95 mm for checking and machining cylinders from the INSIZE brand.
CAUTION: Not suitable for steel or iron surfaces, otherwise the magnetic force would overlap!

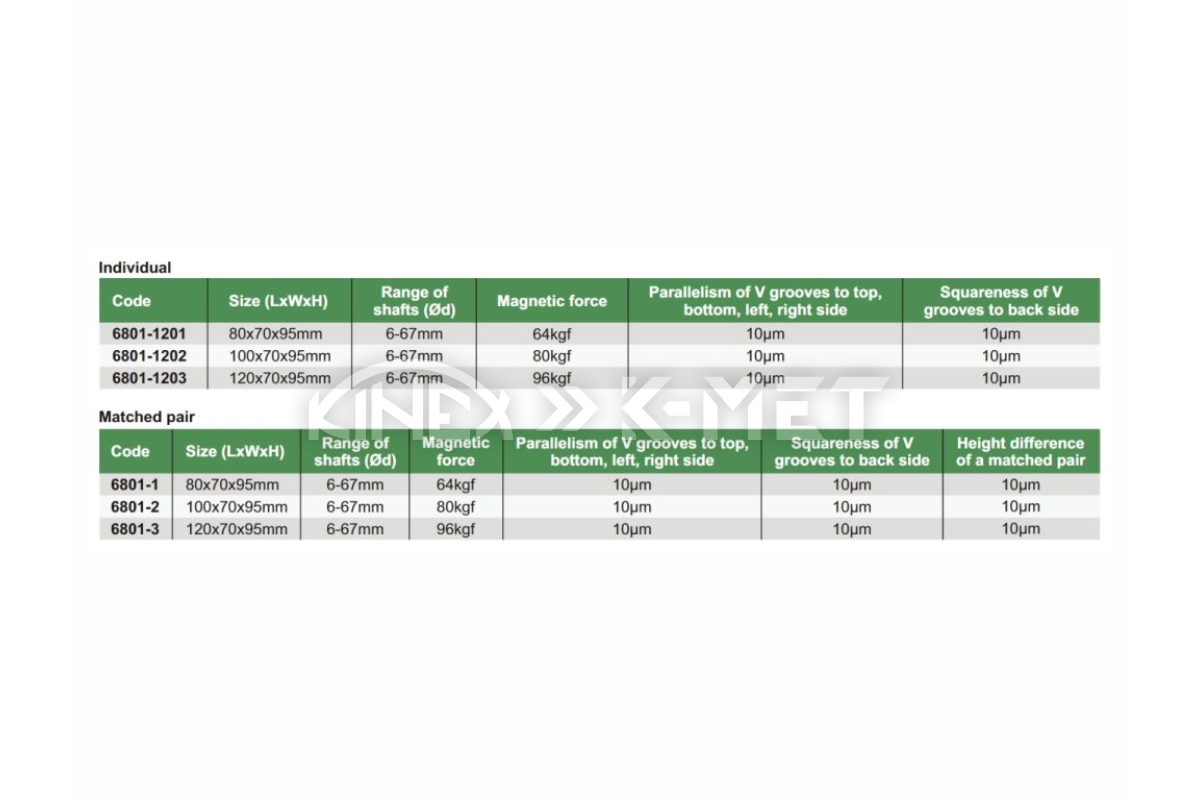

Technical specification
- Not hardened
- V-groove on the top side is for large shafts
- V-groove on the bottom side is for small shafts
Dimension
- 100x70x95 mm
Shaft range
- 6-67 mm
Magnetic force
- 80 KgF
Other variants
| IN6801-1202 | Magnetic V-Block 100x70x95 mm INSIZE (6801-1202) | On request | 137.00 EUR without Tax |
| IN6801-1203 | Magnetic V-Block 120x70x95 mm INSIZE (6801-1203) | On request | 159.00 EUR without Tax |
| IN6805-2 | Cast Iron V-Blocks (Pair) 200x170x90 mm INSIZE (6805-2) | On request | 642.00 EUR without Tax |
