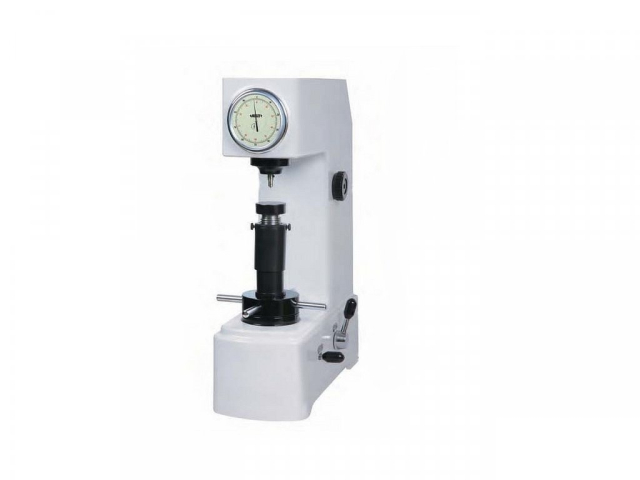

Manual Analog Rockwell Hardness Tester HDT-RW160 INSIZE (HDT-RW160)
- Brand: INSIZE
- Product Code: INHDT-RW160
- EAN: 6940561941708
- Weight: 100,00 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 1,227.00 EUR
Inc. Tax: 1,509.21 EUR
Basic Rockwell hardness tester with manual load control and height adjustment HDT-RW160 from INSIZE with a test force up to 1471 N (150 kg). Hardness measurement method in HRA, HRB, HRC, HRD, HRF, and HRG scales.
- Designed for the most demanding conditions and operations
- High-quality workmanship

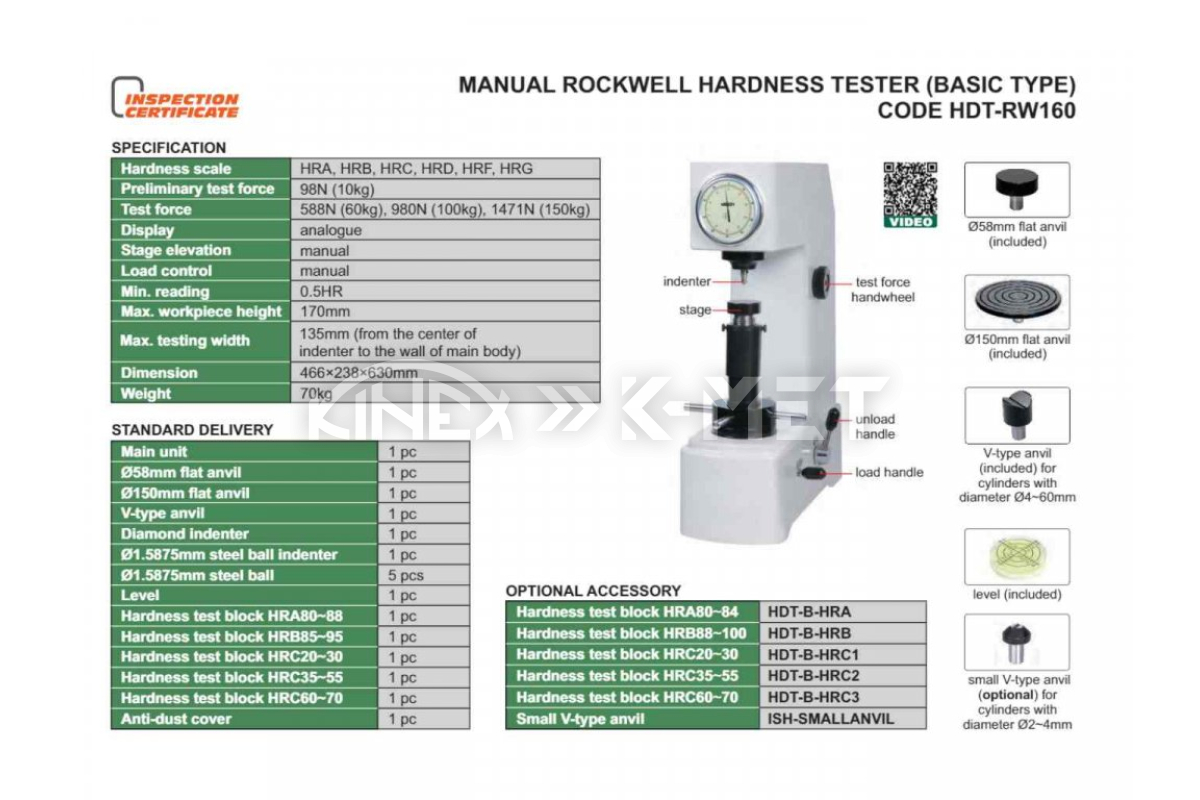

Technical Specification
Hardness Scales
- HRA
- HRB
- HRC
- HRD
- HRF
- HRG
Preliminary Test Force
- 98 N (10 kg)
Test Force
- 588 N (60 kg)
- 980 N (100 kg)
- 1471 N (150 kg)
Display
- Analog
Load Control
- Manual
Height Adjustment
- Manual
Minimum Resolution
- 0.5 HR
Max. workpiece height
- 170 mm
Max. workpiece depth
- 135 mm
Dimensions
- 466x238x630 mm
Weight
- 70 kg
Standard delivery includes
- Manual Rockwell hardness tester INSIZE HDT-RW160
- Flat anvil ø58 mm
- Flat anvil ø150 mm
- V-anvil
- Diamond indenter
- Steel ball indenter ø1.5875 mm
- Steel ball ø1.5875 mm
- Level
- Test block
- HRA 80~88
- HRB 85~95
- HRC 20~30
- HRC 35~55
- HRC 60~70
- Dust cover
Optional accessories
- Test block
- HRA 80~84(HDT-B-HRA)
- HRB 88~100 (HDT-B-HRB)
- HRC 20~30 (HDT-B-HRC1)
- HRC 35~55 (HDT-B-HRC2)
- HRC 60~70 (HDT-B-HRC3)
- Small V-anvil (ISH-SMALLANVIL)
+ Service package of necessary services*
» professional installation
» complete setup for operation
» operator training
* Service prices are not included in the hardness tester price. Please contact us for exact service prices.
Would you like to effectively use hardness testers and correctly evaluate the hardness of metallic materials?
If so, we have a solution for you – the trainingHardness Testing of Metallic Materials, through which you will gain the necessary knowledge for accurate hardness measurement and analysis.
