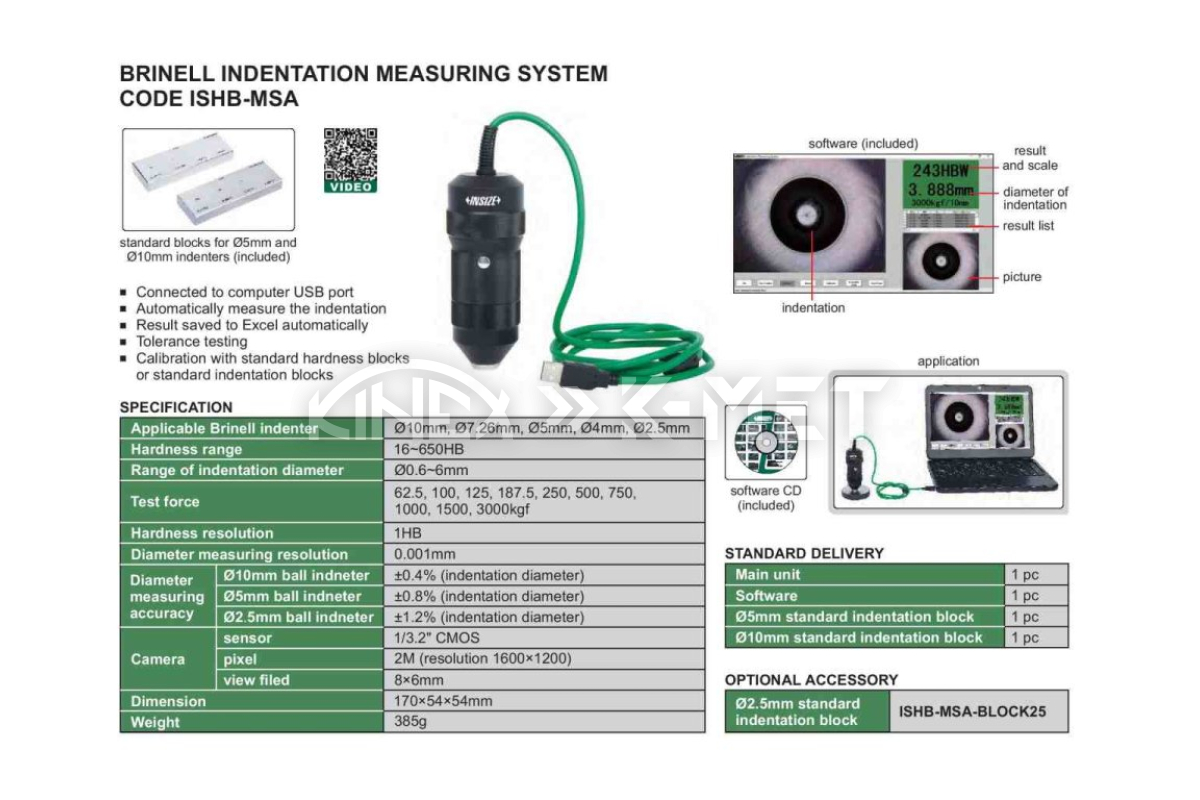

Measuring System - Digital Brinell Measuring Magnifier 2.5-10 mm ISHB-MSA INSIZE (ISHB-MSA)
- Brand: INSIZE
- Product Code: INISHB-MSA
- EAN: 6940561963052
- Weight: 5,00 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 4,756.00 EUR
Inc. Tax: 5,849.88 EUR

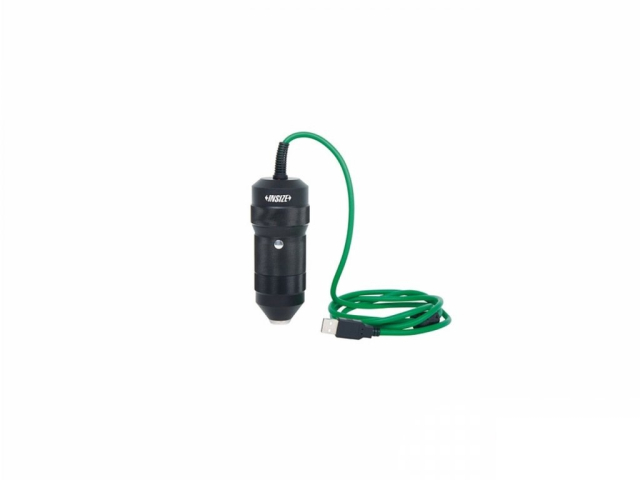

Handheld microscope for measuring the indentation size of Brinell bodies with Ø 2.5 - 10 mm in the range of 16-650HB, including measuring software with the ability to save data to a PC.
- Significantly easier work than with a classic Brinell measuring magnifier
- Connection to PC via standard USB port
- Automatic indentation measurement
- Results are automatically saved to Excel
- Tolerance test
- Software included
Corresponding Brinell indenters
- Ø 2.5 mm
- Ø 4 mm
- Ø 5 mm
- Ø 7.26 mm
- Ø 10 mm
Hardness Range
- 16-650 HB
Indenter Diameter Range
- Ø 0.6 - Ø 6 mm
Test Force (kgf)
- 62.5
- 100
- 125
- 187.5
- 250
- 500
- 750
- 1000
- 1500
- 3000
Hardness Measurement Resolution
- 1 HB
Diameter Measurement Resolution
- 0.001 mm
Diameter Measurement Accuracy
- Ø 10 mm ball indenter
- +- 0.4% (diameter)
- Ø 5 mm ball indenter
- +- 0.8% (diameter)
- Ø 2.5 mm ball indenter
- +- 1.2% (diameter)
Camera
- Sensor
- 1/3.2" CMOS
- Resolution
- 1600x1200 (2 M) pixels
- Field of View
- 8x6 mm
Dimensions
- 170x54x54 mm
Weight
- 385 g
Standard Delivery
- 1x Digital Brinell Measuring Magnifier for ball diameters 2.5-10 mm INSIZE
- 1x Software
- 1x Ø 5mm standard test etalon
- 1x Ø 10 mm standard test etalon
Optional Accessories
- Ø 2.5 mm standard test etalon(ISHB-MSA-BLOCK25)
