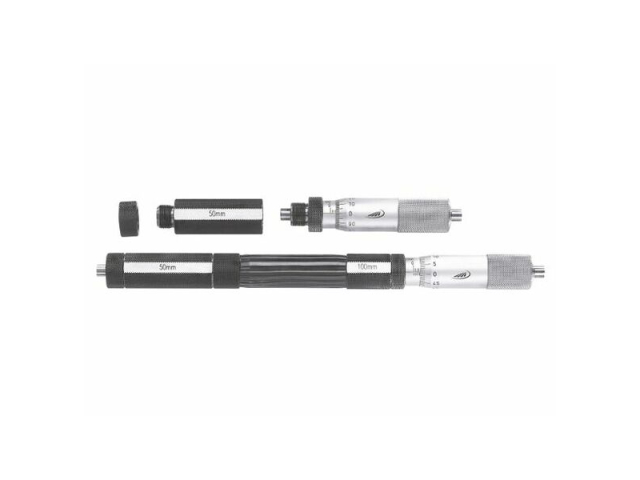

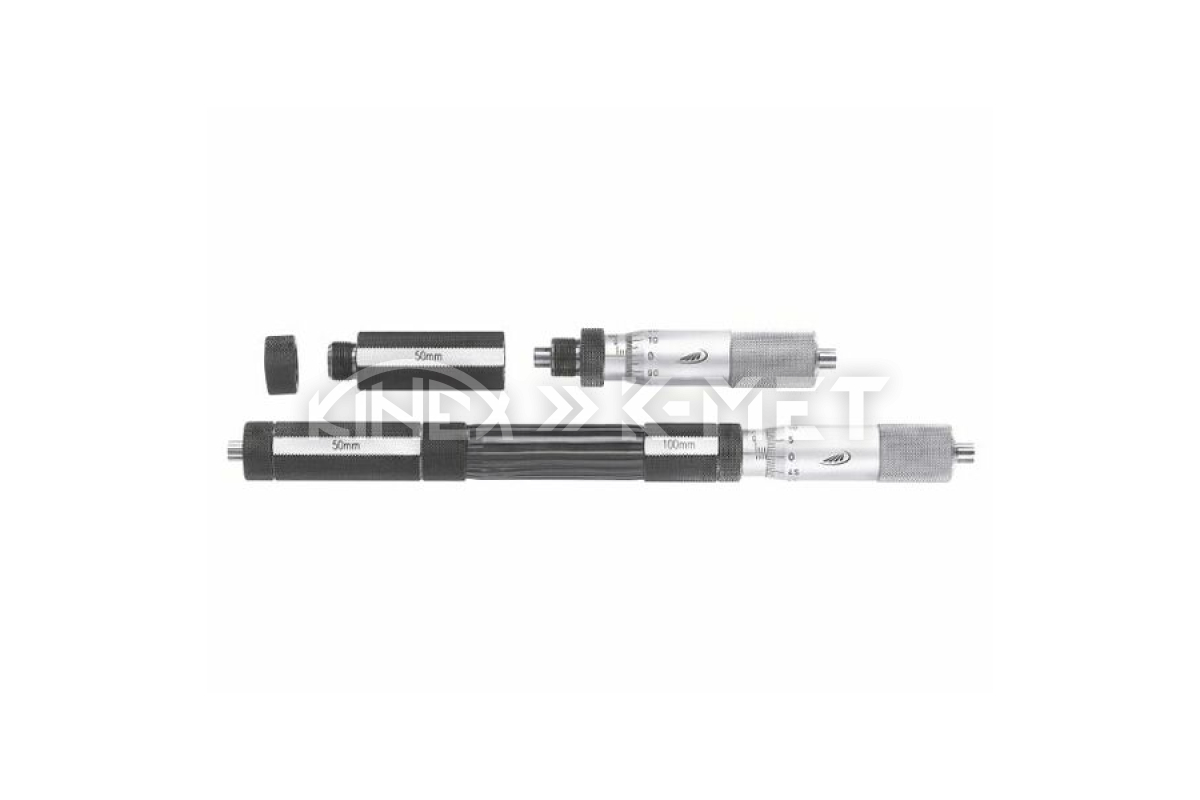

Micrometer Bore Gauge with Extensions M14x1 100-2500 mm HELIOS-PREISSER (0894534)

Micrometer Bore Gauge with Extensions M14x1 100-2500 mm HELIOS-PREISSER

Discover supreme precision and unparalleled flexibility with the comprehensive set of HELIOS-PREISSER internal micrometers. This professional tool is designed for the most demanding measuring tasks in mechanical engineering and manufacturing, covering an impressive range from 100 to 2500 mm. Thanks to its robust construction and precise craftsmanship according to DIN 863-4, you gain a reliable partner for daily work.

Key Features and Benefits:

• Extreme Measuring Range: From 100 mm up to an incredible 2500 mm, ideal for a wide range of applications.
• High Accuracy: With a tolerance of just 0.021 mm (21 µm), it guarantees reliable and repeatable results.
• Durable Measuring Faces: Diameter 7 mm x 6 mm, fitted with tungsten carbide (HM) tips and a spherical thread for maximum durability and precision.
• Intelligent Extension System: Internal spring rods with thermal protective sleeves and steel tubes (17 mm diameter for ranges above 100 mm, reinforced 32 mm for 500 and 1000 mm) ensure stability and minimize temperature influence.
• Precise Adjustment: The basic internal micrometer is adjustable by 50 mm, with a firmly tightened spindle to prevent accidental adjustment during measurement.
• Professional Standard: Manufactured in accordance with DIN 863-4, which is a guarantee of quality and reliability.

With this set of HELIOS-PREISSER micrometer bore gauges, you get not just a tool, but a comprehensive solution for precise internal dimension measurement that will simplify your work and increase efficiency.
