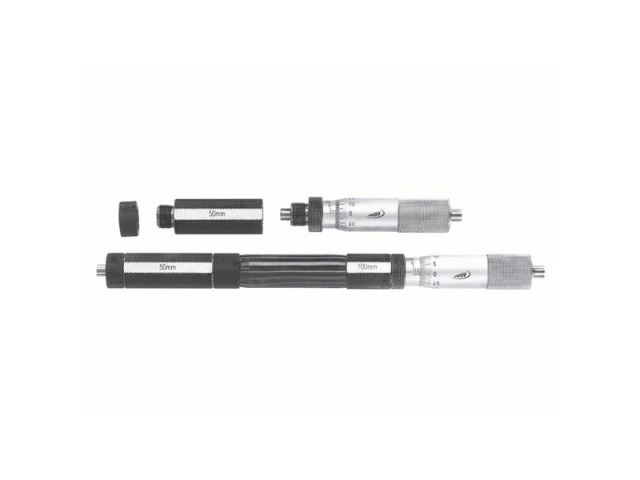

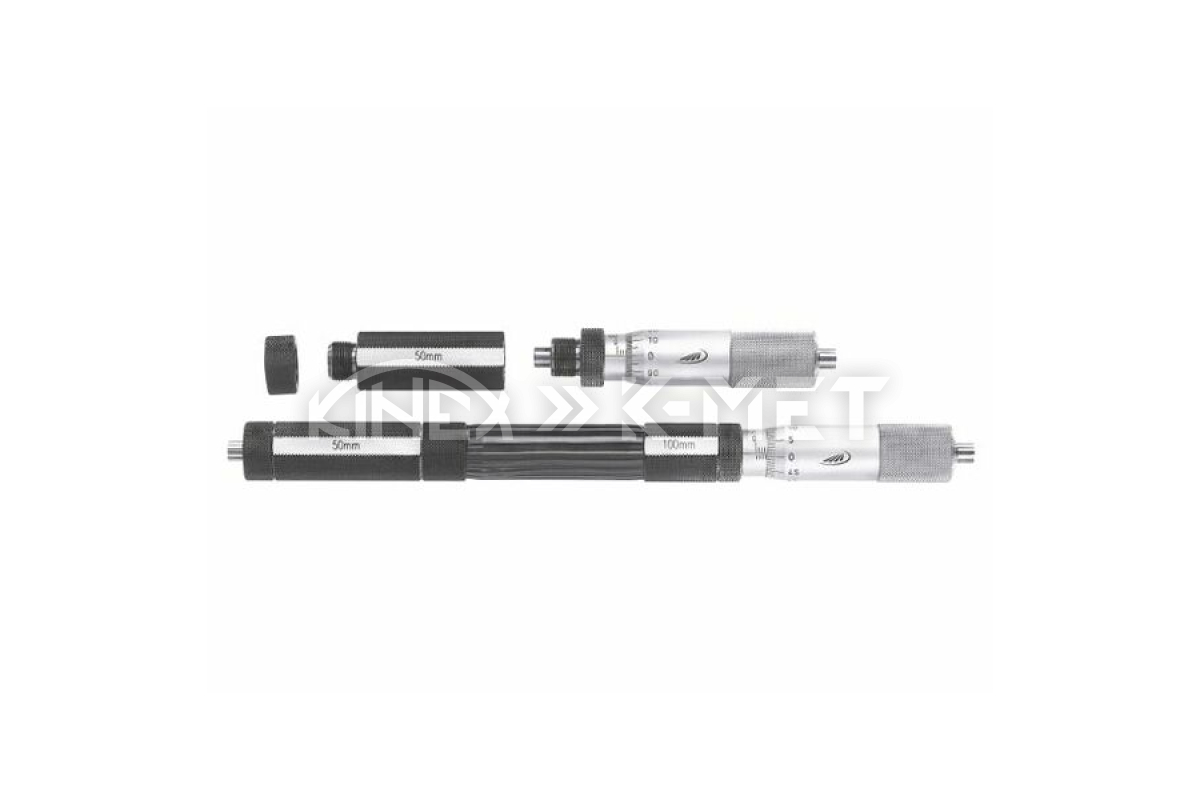

Micrometer Bore Gauge with Extensions M14x1 100-3000 mm HELIOS-PREISSER (0894542)

Micrometer Bore Gauge with Extensions M14x1 100-3000 mm HELIOS-PREISSER

Discover supreme precision and reliability with the micrometer bore gauge from the renowned brand HELIOS-PREISSER. This professional tool is designed for the most demanding internal dimension measurements across a wide range from 100 to 3000 mm, making it an indispensable aid in precision engineering and manufacturing. Thanks to its robust construction, carbide tips, and thermally insulated components, it guarantees consistent and accurate results even in challenging operating conditions.

The set complies with the strict DIN 863-4 standard and is equipped with innovative features that minimize errors and maximize user comfort. Whether you need to measure deep holes or extensive internal diameters, this micrometer bore gauge with modular extensions provides you with the flexibility and assurance that your measurements will always be perfect.

Key Features and Technical Specifications:

• Measuring Range: 100–3000 mm
• Accuracy: Error limit 0.03 mm (30 µm)
• Standard: DIN 863-4
• Measuring Faces: Diameter 7 mm x 6 mm, carbide tip, spherical thread
• Thread Pitch: 1 mm
• Internal Spring Rods: With thermal protective sleeves for stable measurement
• Extensions above 100 mm: Steel tube with outer diameter 17 mm and thermal insulation
• Reinforced Extensions (500 and 1000 mm): Steel tube with diameter 32 mm for larger ranges
• Adjustability: Basic internal micrometer adjustable by 50 mm
• Fixed Spindle: Ensures stability and prevents accidental adjustment
• Manufacturer: Helios-Preisser Vertrieb Mahr GmbH

This set is ideal for demanding engineering applications where high precision and measurement reliability are crucial. The package includes measuring blocks to expand measurement possibilities.
