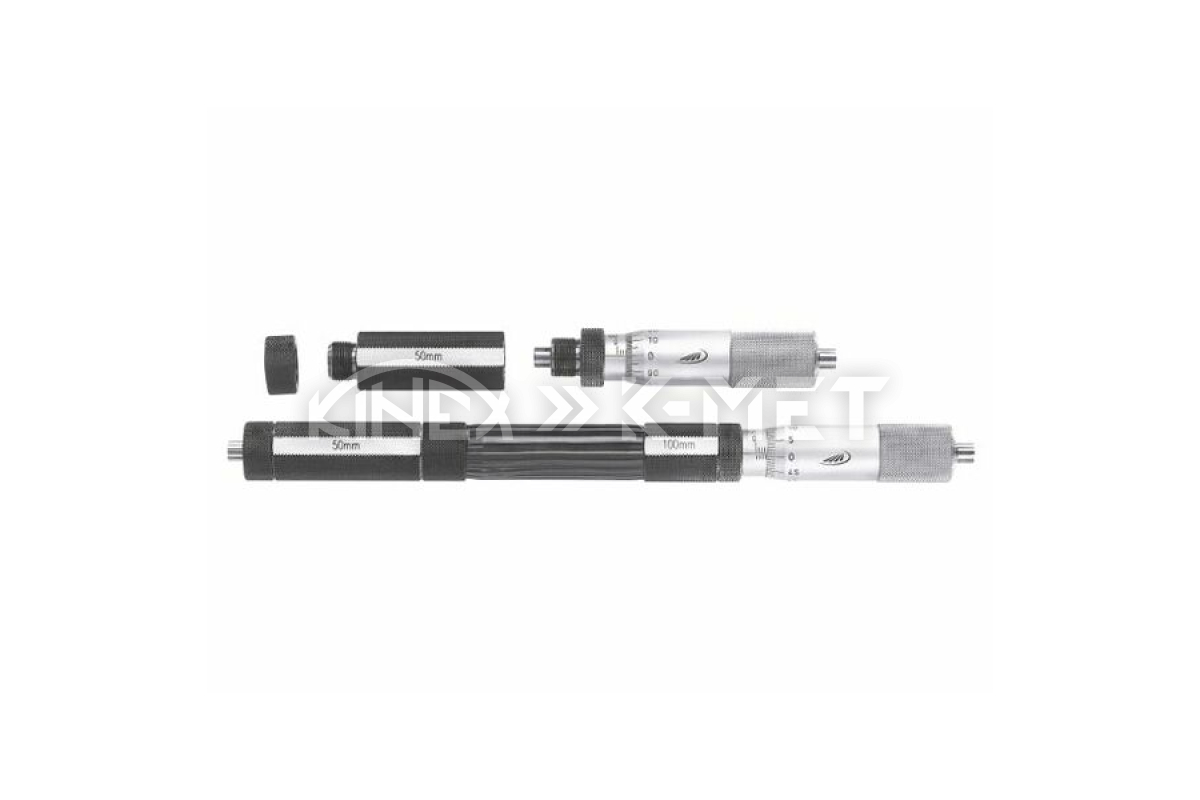

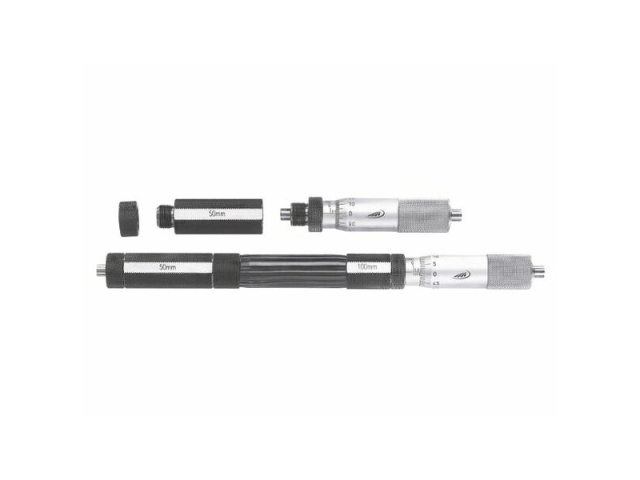

Micrometer Bore Gauge with Extensions M14x1 100-6000 mm HELIOS-PREISSER (0894554)

Micrometer Bore Gauge with Extensions M14x1 100-6000 mm HELIOS-PREISSER

Discover supreme precision and reliability with the micrometer bore gauge from the renowned brand HELIOS-PREISSER. This professional tool is designed for an exceptionally wide range of internal dimension measurements, from 100 mm up to an incredible 6000 mm, making it an indispensable aid in demanding engineering and manufacturing applications. Thanks to its robust construction and precise workmanship, it meets the strictest standards and guarantees consistent and accurate results.

Key Features for Unrivaled Measurement:

• Extreme Measuring Range: 100–6000 mm for a wide spectrum of applications.
• High Accuracy: Error limit of only 0.06 mm (60 µm) for reliable results.
• DIN 863-4 Standard: Ensures compliance with international quality standards.
• Durable Measuring Faces: Diameter 7 mm x 6 mm with carbide tip and spherical thread for long lifespan and precise contact.
• Precise Thread Pitch: 1 mm for fine and accurate adjustment.
• Stable Construction: Internal spring rods with thermal protective sleeves minimize the influence of temperature changes.
• Flexible Extensions: Steel tubes with thermal insulation (Ø 17 mm for >100 mm, Ø 32 mm for 500 and 1000 mm) allow measurement even in great depths.
• Easy Adjustability: Basic internal micrometer adjustable by 50 mm for quick calibration.
• Spindle Lock: Tightly secured spindle for maximum stability during measurement.

With the HELIOS-PREISSER micrometer bore gauge, you get a tool that combines German precision, innovative design, and unparalleled reliability. Ideal for quality control, mechanical engineering, and wherever every micrometer is crucial.
