Micrometric Bore Gauge with Extensions M14x1 100-2000 mm HELIOS-PREISSER (0894538)

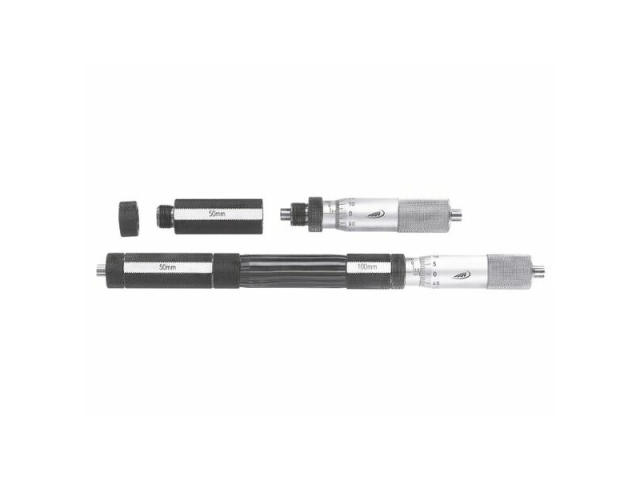

Micrometric Bore Gauge with Extensions M14x1 100-2000 mm HELIOS-PREISSER

Precision Measurement for the Most Demanding Applications

Discover ultimate precision and reliability with the HELIOS-PREISSER micrometric bore gauge, designed for professional measurements in the range of 100–2000 mm. This set of internal micrometers complies with the strict DIN 863-4 standard and is an ideal solution for engineering applications where every micrometer is crucial. Thanks to its robust construction with carbide tips and thermal protective sleeves, it guarantees consistent results even in varying conditions.

Key Features and Benefits:

• Extreme Measuring Range: 100–2000 mm for a wide spectrum of applications.
• High Accuracy: Error limit of only 0.018 mm (18 µm) for maximum reliability.
• Robust Design: Complies with DIN 863-4 standard, ensuring long lifespan and durability.
• Innovative Measuring Ends: Diameter 7 mm x 6 mm, carbide tip, and spherical thread for optimal contact.
• Stability and Protection: Internal spring-loaded rods with thermal protective sleeves minimize the influence of temperature changes.
• Modular Extensions: Steel tubes with thermal insulation (17 mm outer diameter) and reinforced variants (32 mm outer diameter) for larger ranges.
• Easy Adjustability: Basic internal micrometer adjustable by 50 mm for flexible use.
• Fixed Spindle: Prevents accidental adjustment and ensures consistent measurement.

The set is supplied with measuring blocks, further expanding its application and calibration possibilities. With the HELIOS-PREISSER micrometric bore gauge, you get a tool you can rely on in every situation.

Manufacturer: Helios-Preisser Vertrieb Mahr GmbH
