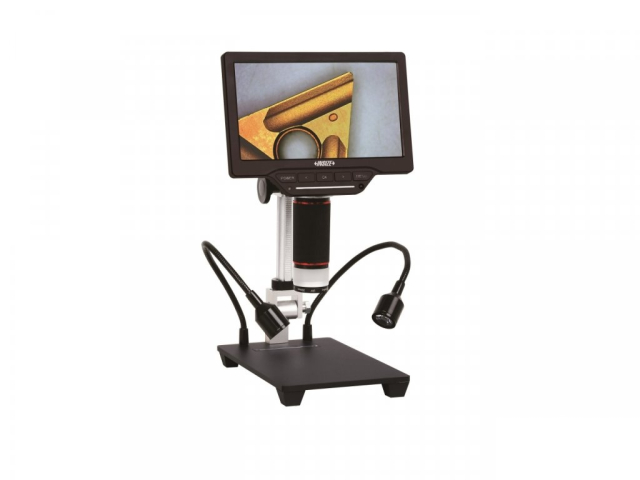

Mini Digital Microscope 1~16X 5311-M710 INSIZE (5311-M710)
- Brand: INSIZE
- Product Code: IN5311-M710
- EAN: 6940561969955
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 445.00 EUR
Inc. Tax: 547.35 EUR

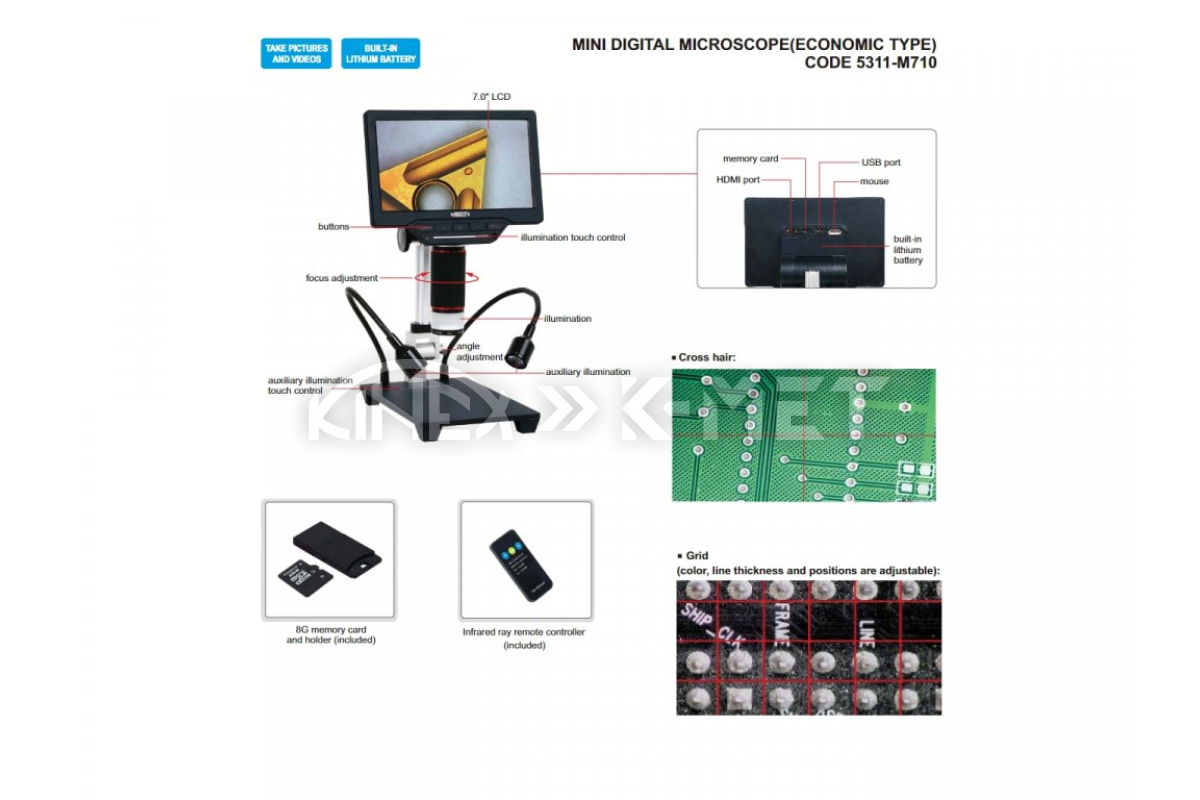

Mini digital measuring microscope with 1~16X magnification from INSIZE featuring a 7" LCD display, 1024×600px resolution, and a 1/3" CMOS sensor. Includes software for PC connection and custom measurements.
- Practical 7" LCD display
- Adjustable focus
- Additional auxiliary lights
- Angle adjustment
- Adjustable brightness
- Outputs: memory card, USB, HDMI, mouse

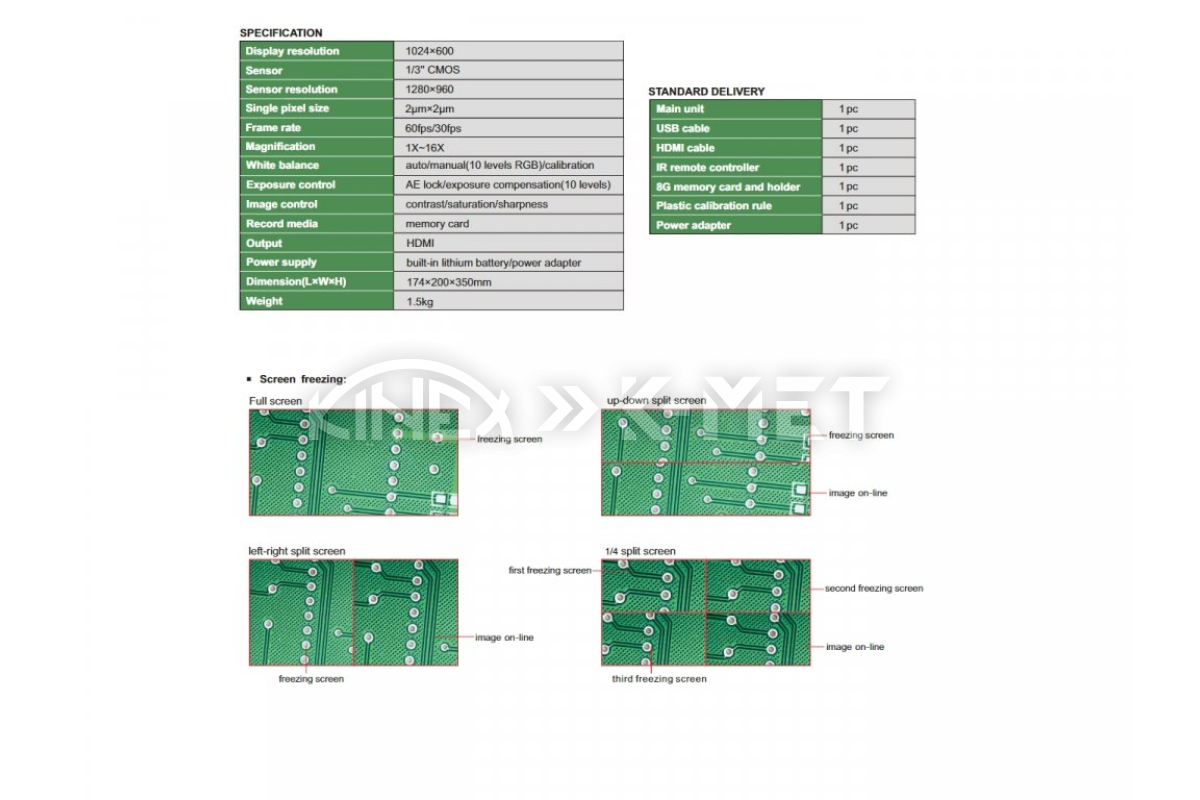

Technical Specification
Sensor
- 1/3" CMOS
Pixel Size
- 2 µm×2 µm
Resolution
- 1024×960
Frame Rate
- 60 FPS/30 FPS
Magnification
- 1 ×~16 ×
White Balance
- Automatic
- Manual (10 RGB levels)
- Calibration
Exposure Control
- AE Lock
- Compensation (10 levels)
Customizable Image Parameters
- Contrast
- Saturation
- Sharpness
Output
- USB/HDMI
- Memory card (8GB included)
Power Supply
- Adapter / Battery
Weight and Dimensions (LxWxH)
- 1.5 kg; 174×200×350 mm

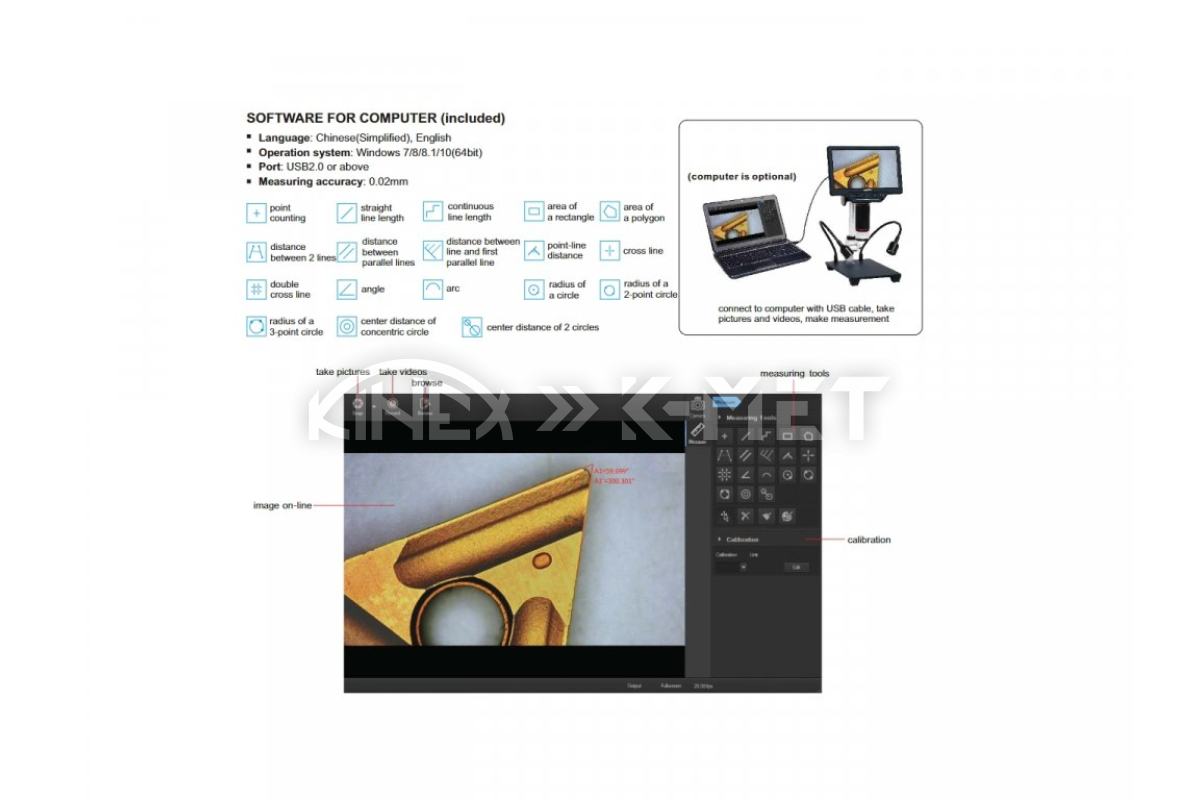

Software with edge detection
Language
- English, Chinese (Simplified)
Operating System
- Windows 7/8/8.1/10 (64bit)
Port
- USB2.0 and higher
Accuracy (based on contour accuracy, given lighting, and focus)
- 0.02 mm
Measurement Functions
- Point counting
- Line length
- Rectangle area
- Polygon area
- Distance between two lines
- Distance between parallel lines
- Distance between a line and the first parallel line
- Circle radius
- Circle radius from two points
- Circle radius from three points
- Center distance of concentric circles
- Distance between centers of two circles
- Angle
- Arc
- Crosshair display
- Double crosshair display
Package Contents
- Mini Digital Microscope 1~16X 5311-M710 INSIZE
- USB cable
- HDMI cable
- Infrared remote control
- 8GB memory card
- Plastic calibration ruler
- Power adapter
