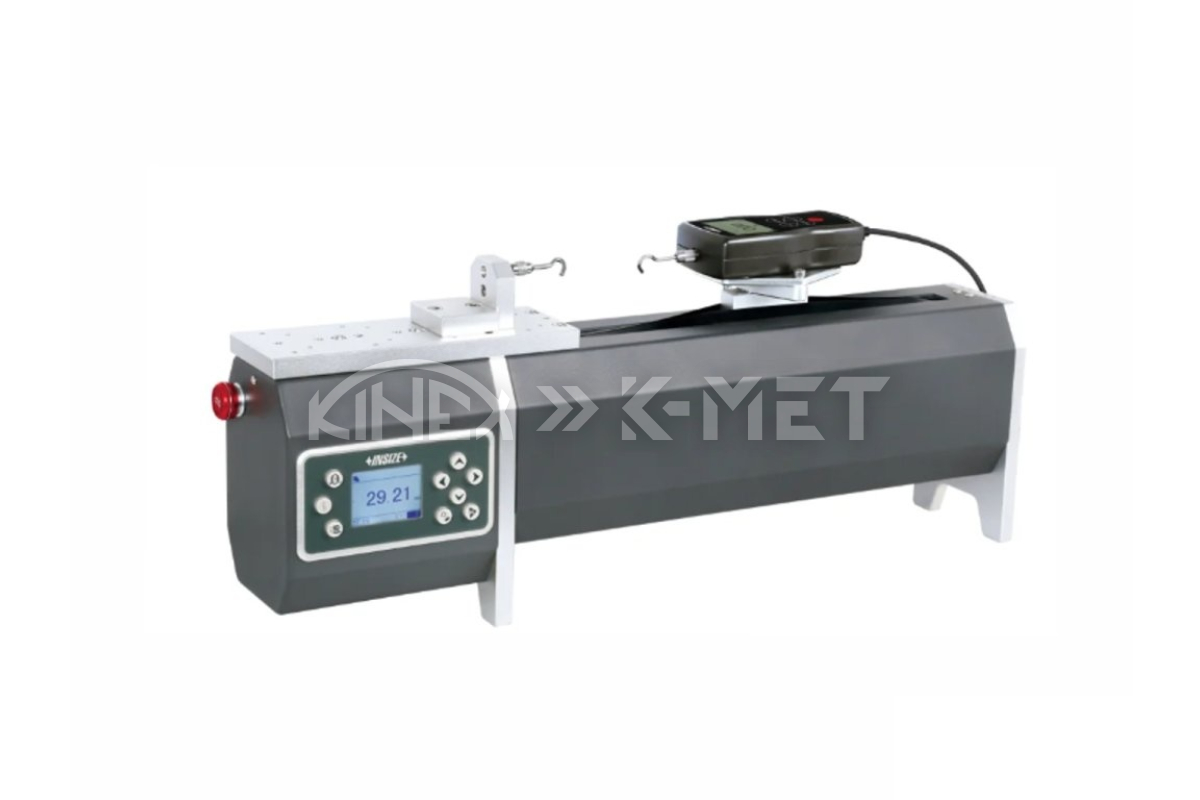

Motorized stand for ISF-RH62 digital force gauges INSIZE (ISF-RH62)
- Brand: INSIZE
- Product Code: INISF-RH62
- EAN: 6940561972849
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 2,954.00 EUR
Inc. Tax: 3,633.42 EUR
The INSIZE motorized test stand for ISF-1DF and ISF-DF force gauges can be used in a horizontal position, with a travel of 220 mm and a maximum measuring force of 650 N.
- Motorized test stand forISF-1DFandISF-DFdigital force gauges
- Allows the entire system to be used for comprehensive material testing under compression and tension
- Automatic and manual testing
- Horizontal use
- 4 operating modes
- Alarm indication

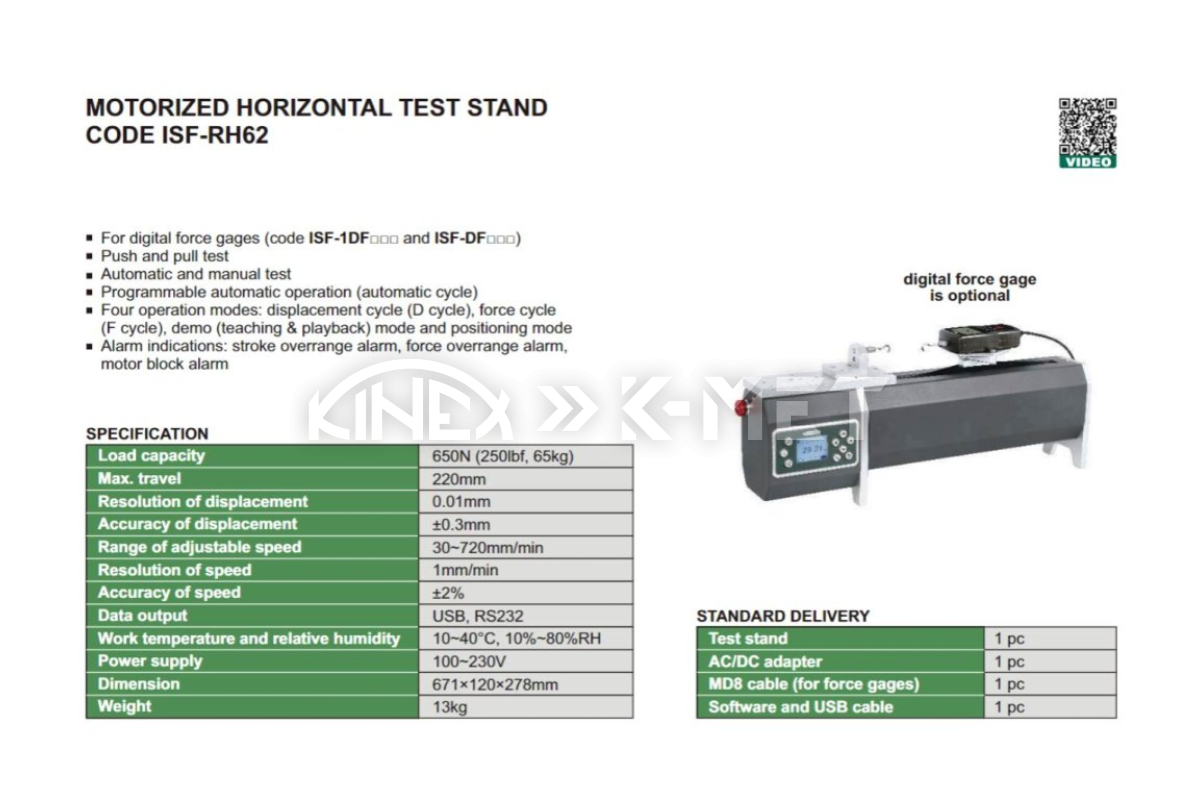

Technical specification
Maximum load
- 650 N
Travel
- 220 mm
Resolution
- 0.01 mm
Accuracy
- ± 0.3 mm
Adjustable speed range
- 30-720 mm/min
Speed resolution
- 1 mm/min
Speed accuracy
- ± 2%
Data output
- USB, RS232
Operating temperature and humidity
- 10-40°C, 10%-80% RH
Power supply
- 100-230V
Dimensions
- 671x120x278 mm
Weight
- 13 kg
Package contents
- Motorized test standISF-RH62
- AC/DC Adapter
- MD8 cable (for force gauge)
- Software and USB cable
*(Force gauge not included)
*10/24
Other variants
| INISF-RH62 | Motorized stand for ISF-RH62 digital force gauges INSIZE (ISF-RH62) | On request | 2,954.00 EUR without Tax |
| INISF-RV61 | Motorized stand for ISF-RV61 digital force gauges INSIZE (ISF-RV61) | On request | 2,954.00 EUR without Tax |
