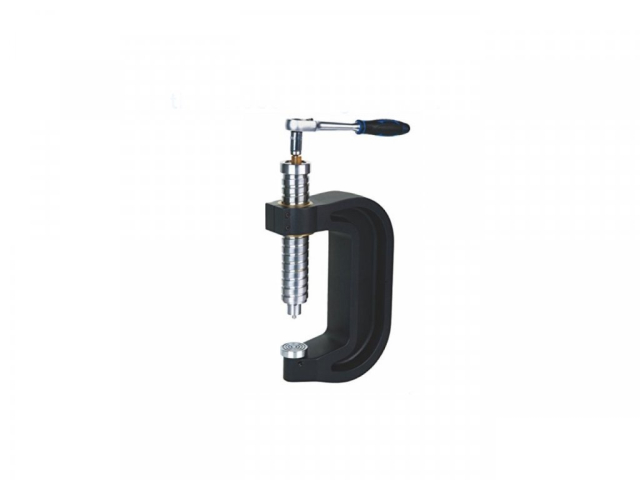

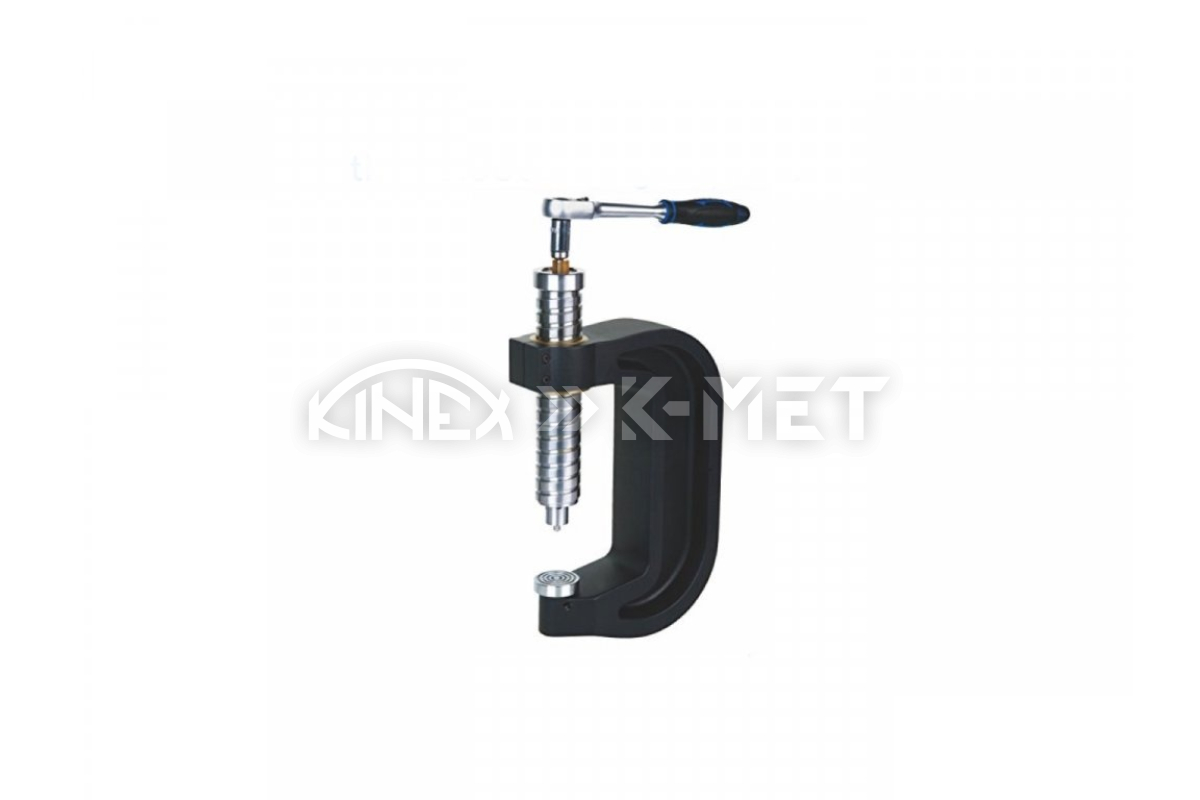

Portable Brinell hardness tester ISHB-P101 INSIZE (ISHB-P101)
- Brand: INSIZE
- Product Code: INISHB-P101
- EAN: 6928640325403
- Weight: 13,45 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 2,514.00 EUR
Inc. Tax: 3,092.22 EUR
Brinell hardness tester ISHB-P101 INSIZE for large steel and iron workpieces. Test force 1580 kg, static and impact measurement testing mode.
SPECIFICATIONS:
- Range 100∼350 HBW (with 7.26 mm diameter)
350∼650 HBW (with 4 mm diameter, optional) - Test force 1580 kg
- It has a test force of 1580 kg with a ball indenter diameter of 7.26 mm, which is equivalent to a test force of 3000 kg with a ball indenter diameter of 10 mm.
- Accuracy in static test +/-3%
impact test +/-5% - Measuring microscope with 20X magnification
with 0.01 mm division - Max. workpiece height 150 mm
- Max. workpiece depth 80 mm
- Complies with ISO and ASTM standards
Other variants
| INISHB-C161 | Hydraulic Brinell hardness tester for rings and tubes ISHB-C161 INSIZE (ISHB-C161) | On request | 6,860.00 EUR without Tax |
| INISHB-H131 | Hydraulic Brinell Hardness Tester ISHB-H131 INSIZE (ISHB-H131) | On request | 7,583.00 EUR without Tax |
| INISHB-MSA | Measuring System - Digital Brinell Measuring Magnifier 2.5-10 mm ISHB-MSA INSIZE (ISHB-MSA) | On request | 4,756.00 EUR without Tax |
| INISHB-MSA-BLOCK25 | Brinell test etalon for 2.5 mm indenter INSIZE (ISHB-MSA-BLOCK25) | On request | 84.90 EUR without Tax |
| INISHB-P101 | Portable Brinell hardness tester ISHB-P101 INSIZE (ISHB-P101) | On request | 2,514.00 EUR without Tax |
