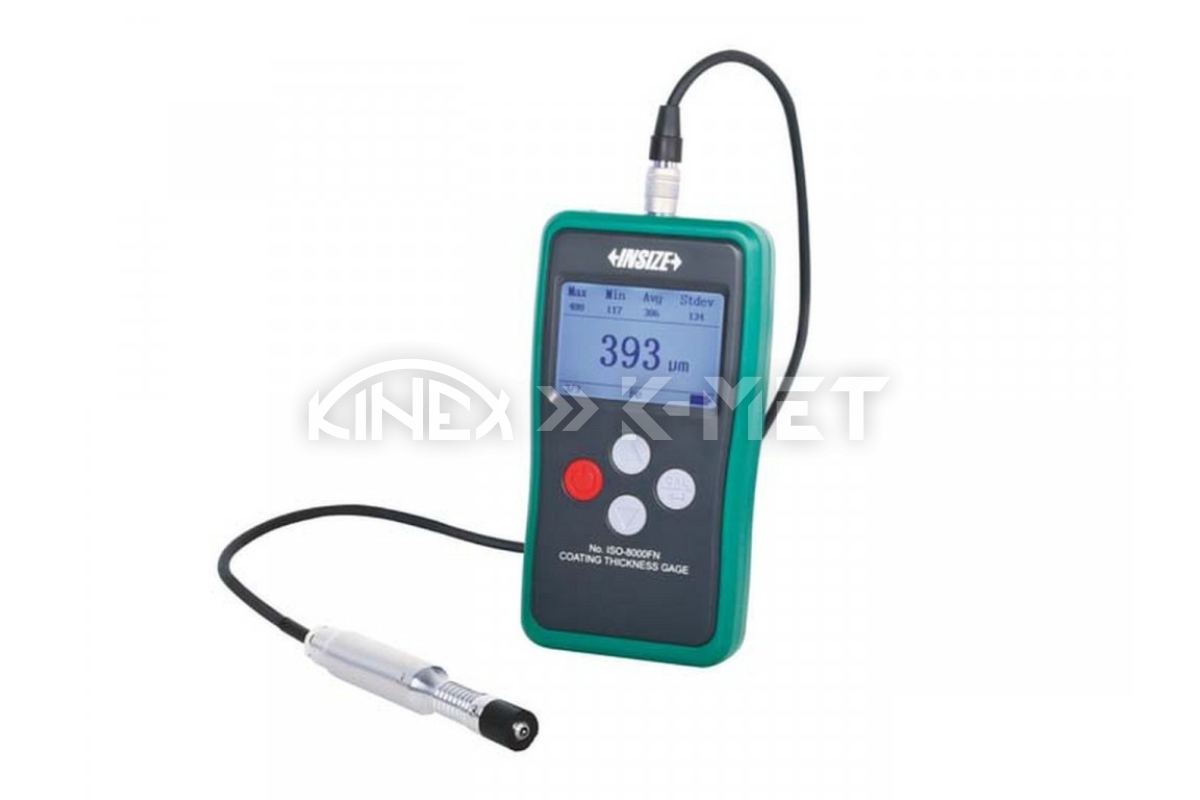

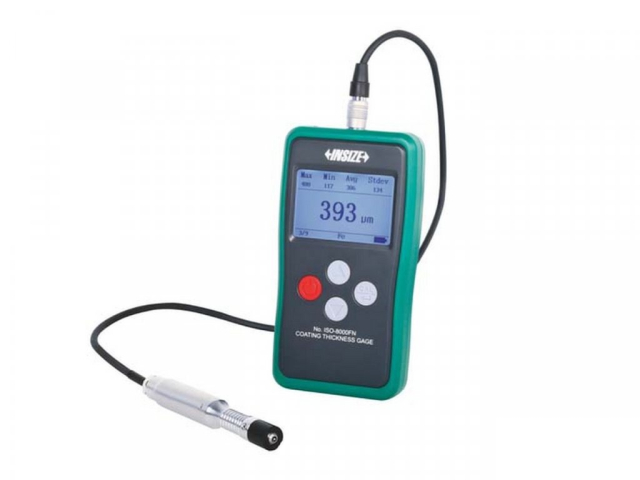

Precise Coating Thickness Gauge, Coatings up to 10 µm INSIZE (ISO-8000FN)

• Magnetic induction probe measures the thickness of non-magnetic coating and non-metallic coating on magnetic metal substrate
• Optional eddy current probe available for measuring non-conductive coating thickness on non-magnetic metal substrate
• Maximum, minimum, average, and deviation values can be automatically calculated

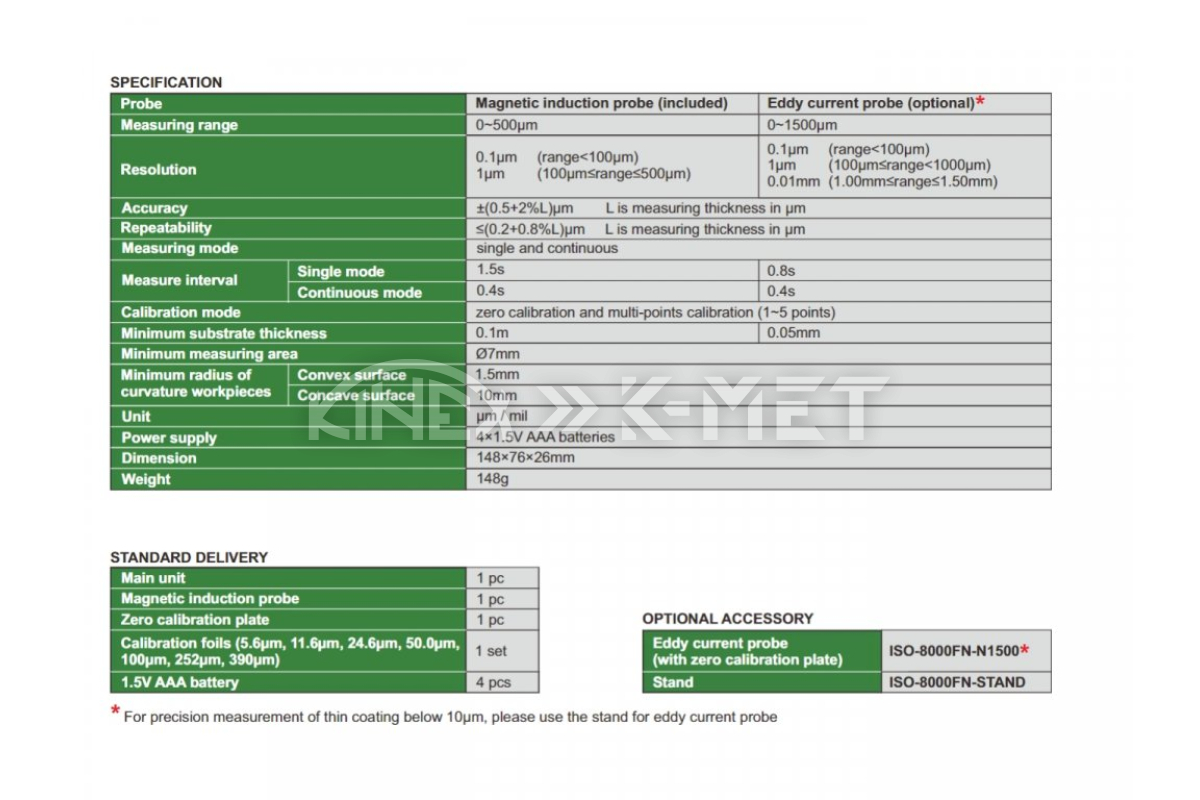

Technical Specification

Supported Surface Types

• Zinc, aluminum, copper, chromium, tin, plastic, powder, paint (not for nickel)

Supported Substrate Types

• Iron, steel, magnetic stainless steel (not for non-magnetic stainless steel).

Magnetic Induction Probe (Standard Accessory)

Measuring Range

• 0-500μm

Accuracy

• ±(0.5+2%L)μm (L is thickness in μm)

Repeatability

• ±(0.2+0.8%L) μm (L is thickness in μm)

Resolution

• 0.1 μm (for measurements <100μm)
• 1 μm (for 100 μm≤range≤500 µm)

Measurement Mode - Interval

• Single - 1.5 s
• Continuous - 0.4 s

Calibration Mode

• Zero calibration
• 1~5 point multi-point calibration

Minimum Substrate Thickness

• 0.1 mm

Minimum Measuring Area

• ø 7 mm

Minimum Convex Curvature Radius of Measured Piece

• 1.5 mm

Minimum Concave Curvature Radius of Measured Piece

• 10 mm

Units

• µm / mil

Power Supply

• 4x AAA batteries

Eddy Current Probe (Optional Accessory)

Supported Substrate Types

• Copper, aluminum, zinc, non-magnetic stainless steel

Supported Surface Types

• Plastic, powder, paint, anodized coating (not for chrome-plated and galvanized surfaces)

Measuring Range

• 0~1500 µm

Resolution

• 0.1 μm (for measurements <100μm)
• 1 μm (for 100 μm≤range≤500 µm)
• 0.01 mm (for 1.00 μm≤range≤1.50 µm)

Measurement Mode - Interval

• Single - 0.8 s
• Continuous - 0.4 s

Minimum Substrate Thickness

• 0.05 mm

Package Contents

• INSIZE Precise Coating Thickness Gauge, Coatings up to 10 µm
• Magnetic induction probe
• Zero standard
• Calibration foils (5.6; 11.6; 24.6; 50; 100; 252; 390 μm)
• 1.5V AAA batteries (4 pieces)

Optional Accessories

• Eddy current probe with zero standard (ISO-8000FN-N1500)
• Stand(ISO-8000FN-STAND)
