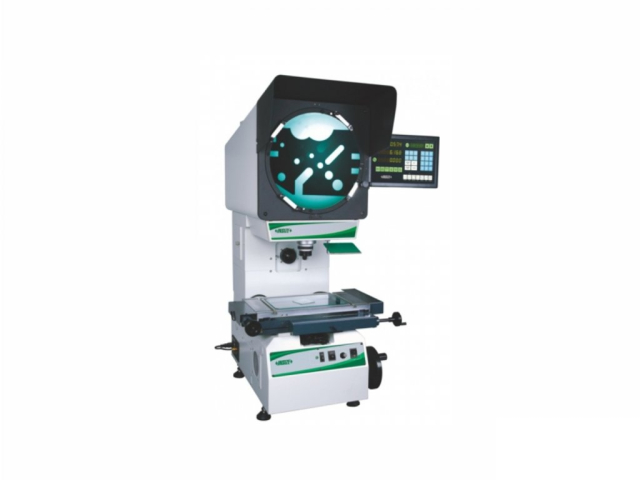

Profile projector AZ3020 INSIZE (ISP-AZ3020)
- Brand: INSIZE
- Product Code: INISP-AZ3020
- EAN: 6928640322655
- Weight: 172,50 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 9,749.30 EUR
Inc. Tax: 11,991.64 EUR
Profile projector AZ3020 by INSIZE without edge detector, with magnification accuracy +/-0.08%, measuring range in x/y/z axes (200x100x100) mm.
SPECIFICATIONS:
- Measuring range in x/y/z axes (200x100x100) mm
- Resolution 0.5µm
- Measurement accuracy (3+L/75)µm
- Lens magnification 10x (included), 20x (optional), 50x (optional), 100x (optional)
- Field of view diameter 30 mm (for 10x magnification), 15 mm (for 20x magnification), 6 mm (for 50x magnification), 3 mm (for 100x magnification)
- Working distance 77.7 mm (for 10x magnification), 44.3 mm (for 20x magnification), 38.4 mm (for 50x magnification), 25.3 mm (for 100x magnification)
- Metal measuring surface (404x228) mm
- Glass measuring surface (260x160) mm
- Crosshairs on screen
- Max. workpiece weight 50 kg
- Projector screen diameter 300 mm with 0°- 360° rotation capability
- Contour illumination 24V/150W halogen lamp with adjustable brightness
- Surface illumination 24V/150W halogen lamp with adjustable brightness
- Data output: RS232C
- Does not include edge detector
+ Service package of required services*
» professional installation
» complete setup for operation
» operator training
* Service prices are not included in the device price. Contact us for the exact service price.
