Profile projector ISP-A1000E INSIZE (ISP-A1000E)
- Brand: INSIZE
- Product Code: INISP-A1000E
- EAN: 6928640339400
- Weight: 170,00 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 8,410.60 EUR
Inc. Tax: 10,345.04 EUR

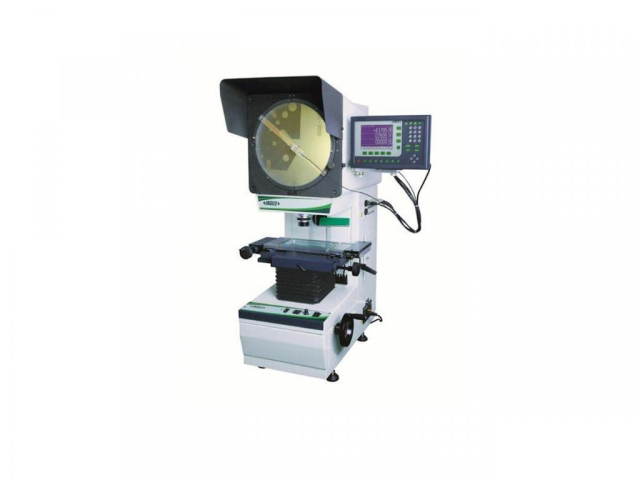

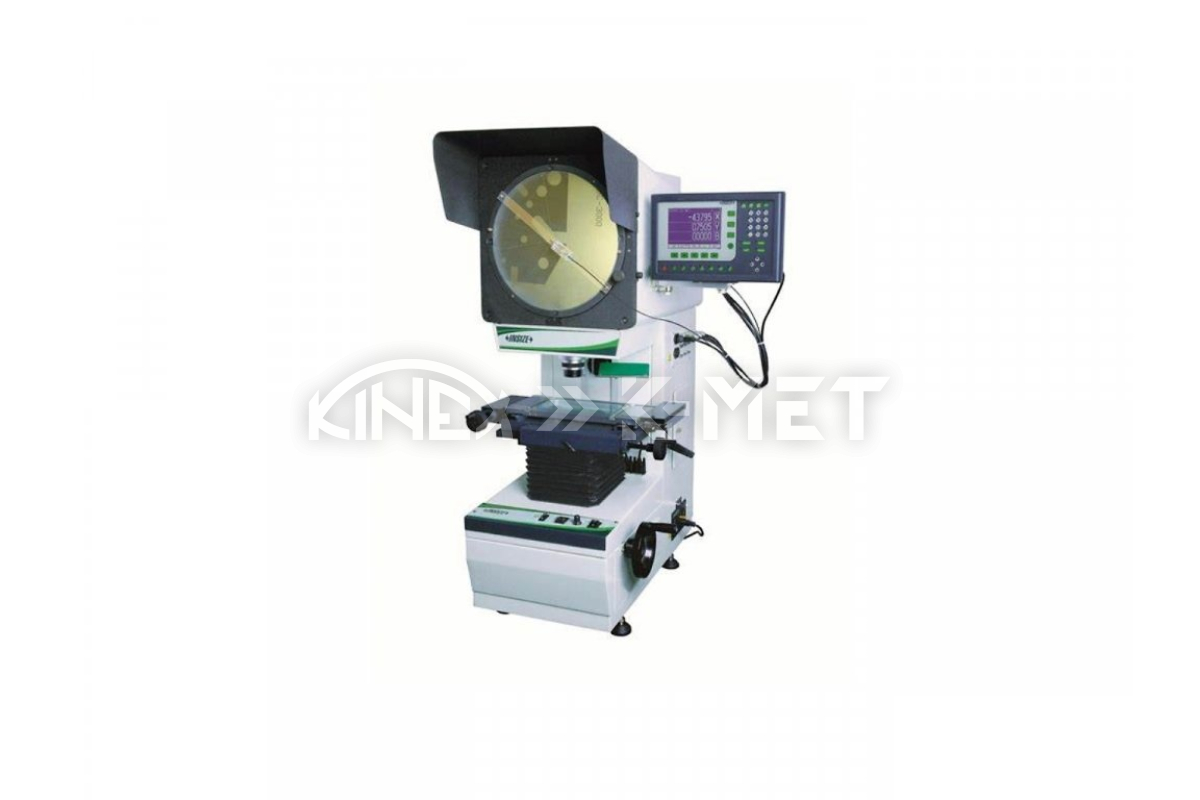

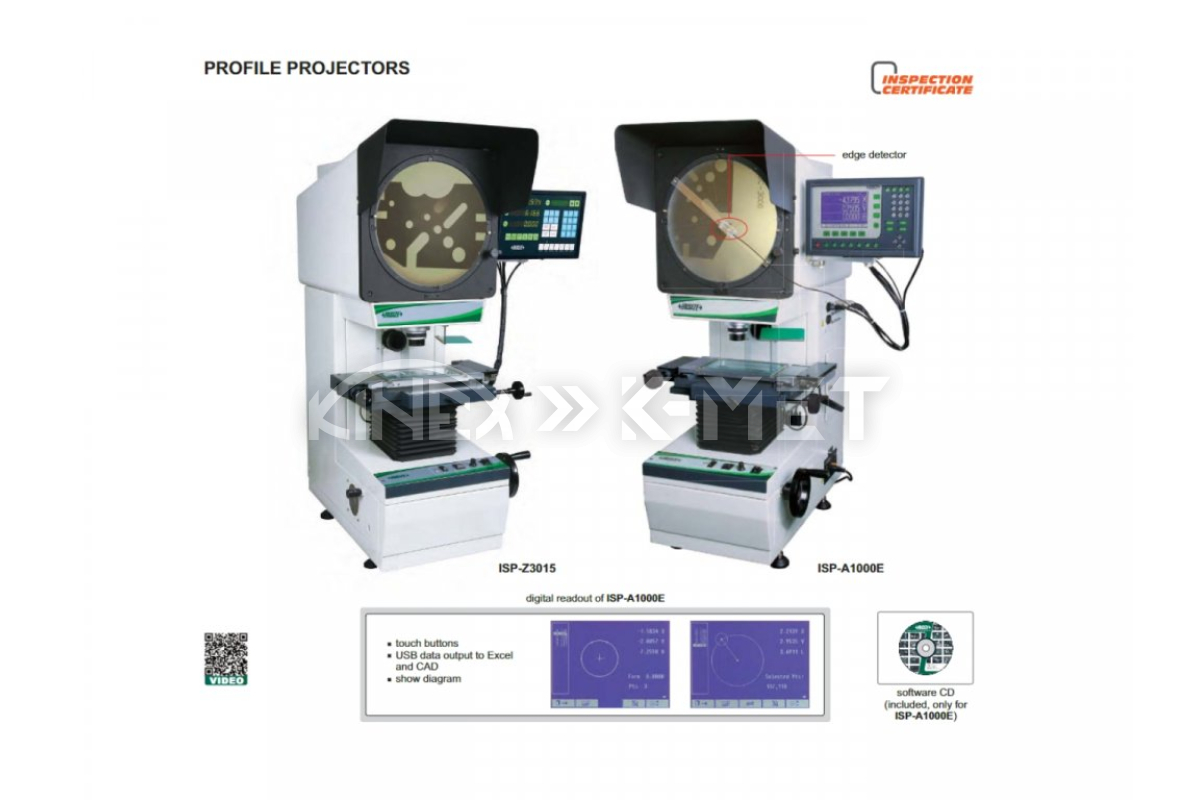

Profile projector ISP-A1000E from INSIZE with edge detector, 10X magnification with ±0.08% accuracy. The diameter of the glass screen is 300 mm and it is rotatable by 360°. With the possibility of data output via RS232C and USB, including software.
- Including edge detector
- Display with intuitive control
- All data can be sent to Excel and CAD via USB
- Batch measurement capability

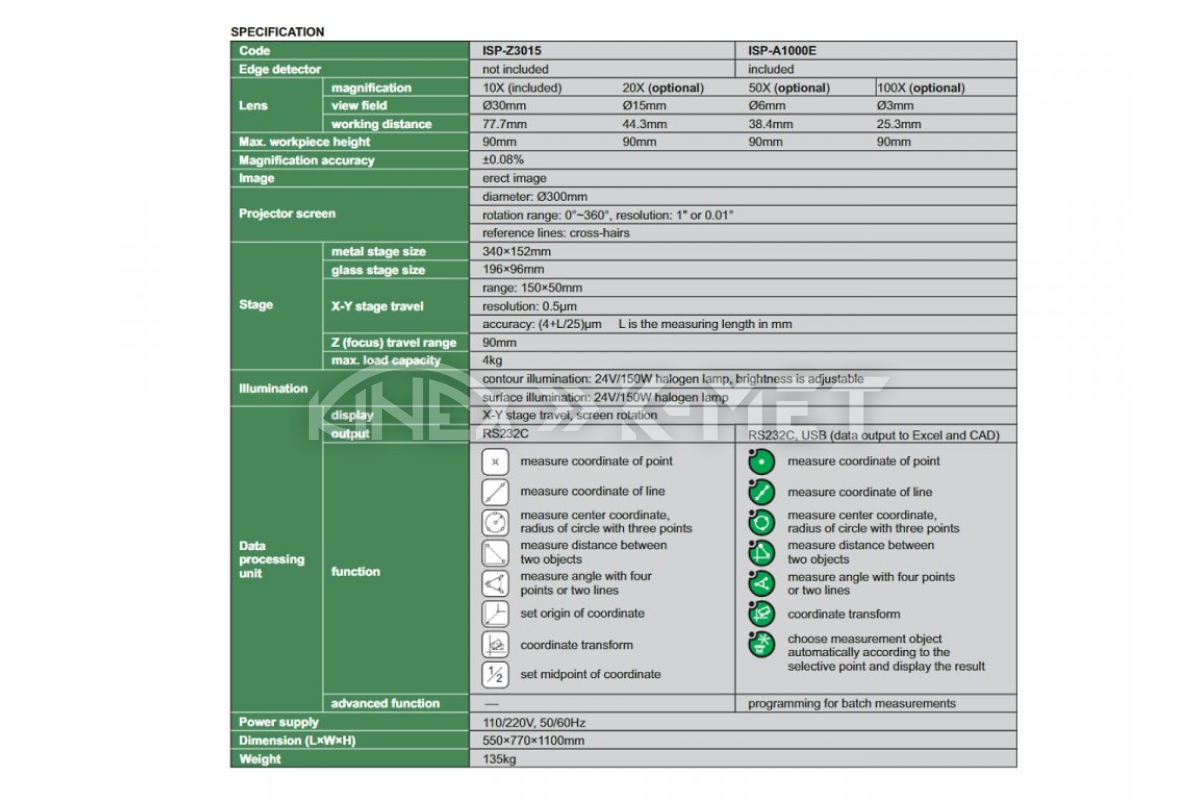

Technical specification
Magnification
- 10X (optional 20X, 50X, 100X)
Field of view
- Ø 30 mm (optional 15 mm, 6 mm, 3 mm)
Working distance
- 77.7 mm (optional 44.3 mm, 38.4 mm, 25.3 mm)
Maximum height of measured object
- 90 mm
Magnification accuracy
- +-0.08 %
- Apparent (virtual)
Projector screen / glass screen
- Diameter: Ø 300 mm
- Rotation range: 0°~360°
- Resolution: 1" or 0.01°
- Reference lines: Crosshair
Stage
- Metal stage dimensions
- 340x152 mm
- Glass surface dimensions
- 196x96 mm
- X-Y stage travel
- Range: 150x50 mm
- Resolution: 0.5 µm
- Accuracy (L is length in mm): (4+L/25)µm
- Z travel (focus)
- 90 mm
- Max load
- 4 kg
Illumination
- Contour
- 24V/150W halogen lamp with adjustable brightness
- Surface
- 24V/150W halogen lamp
Measuring unit
- Display
- X-Y travel, rotating display
- Output
- RS252C and USB (data output to Excel and CAD)
- Functions
- Point position measurement
- Line position measurement
- Circle center measurement with three points
- Distance measurement between two objects
- Angle measurement between two lines or four points
- Coordinate shift
- Automatic object measurement based on selected point
- Other functions
- Batch measurement
Weight
- 135 kg

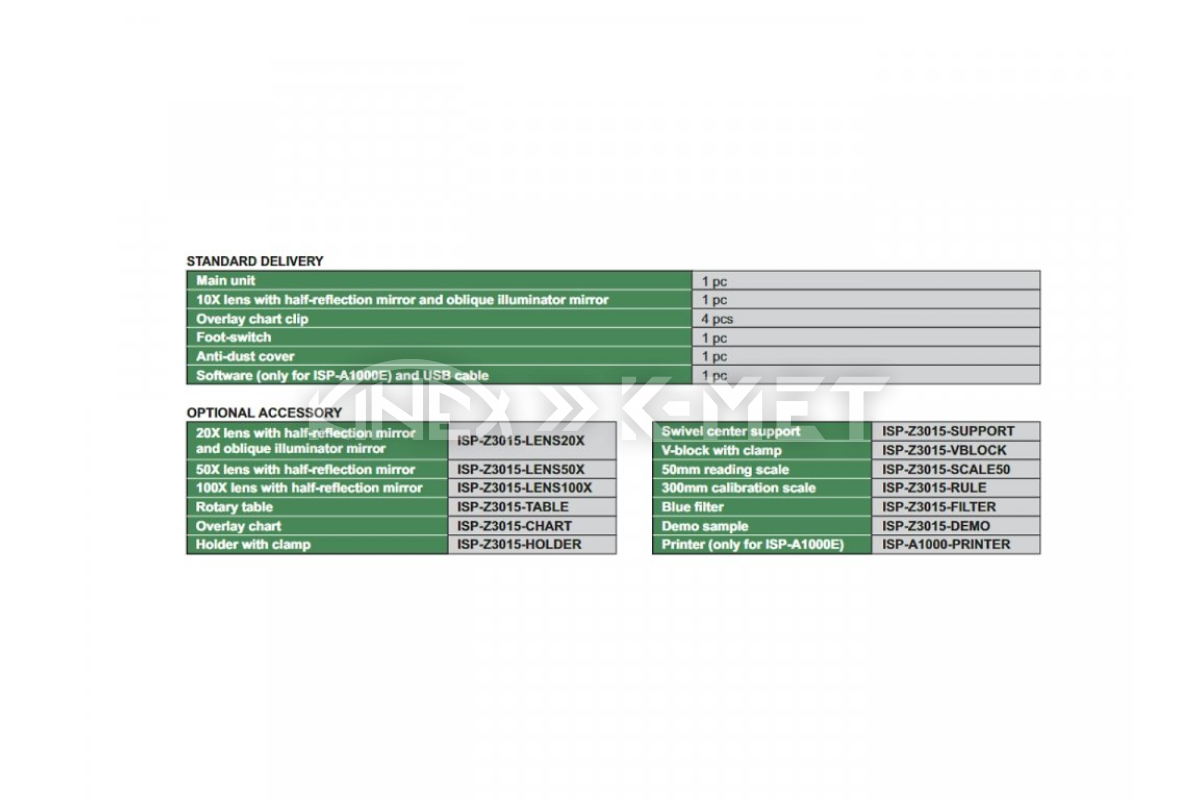

Standard package
- Profile projector INSIZE ISP-A1000E
- 10X lens with semi-reflection mirror and angled illumination mirror
- Clips for attaching film to the screen
- Foot switch
- Dust cover
- Software and USB cable

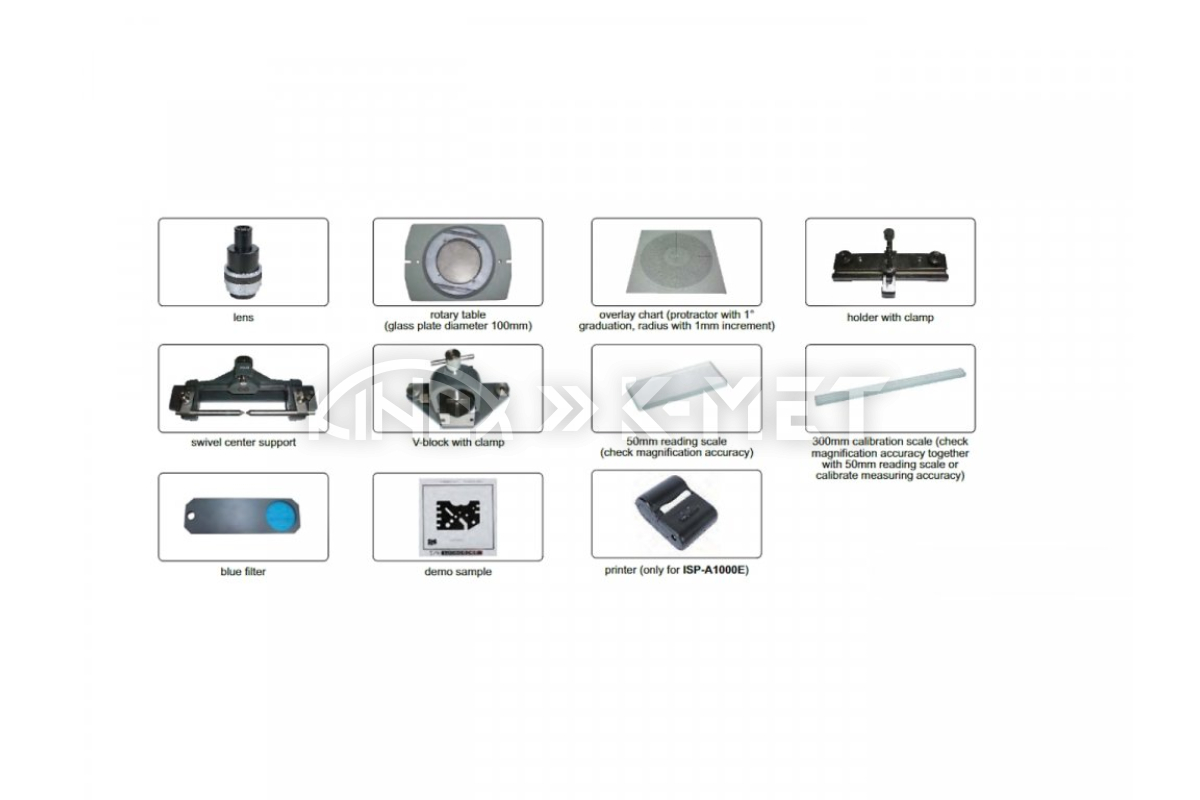

Optional accessories
- 20X lens with semi-reflection mirror and angled illumination mirror (ISP-Z3015-LENS20X)
- 50X lens with semi-reflection mirror (ISP-Z3015-LENS50X)
- 100X lens with semi-reflection mirror (ISP-Z3015-LENS100X)
- Rotary stage (ISP-Z3015-TABLE)
- Translucent templates with scales (ISP-Z3015-CHART)
- Holder with clamp (ISP-Z3015-HOLDER)
- Rotary center support (ISP-Z3015-SUPPORT)
- V-block fixture (ISP-Z3015-VBLOCK)
- 50 mm reading scale (ISP-Z3015-SCALE50)
- 300 mm inspection scale (ISP-Z3015-RULE)
- Blue filter (ISP-Z3015-FILTER)
- Demonstration part (ISP-Z3015-DEMO)
- Printer (ISP-A1000-PRINTER)
+ Service package of necessary services*
» professional installation
» complete setup for operation
» operator training
* Service costs are not included in the device price. Please contact us for the exact service price.
