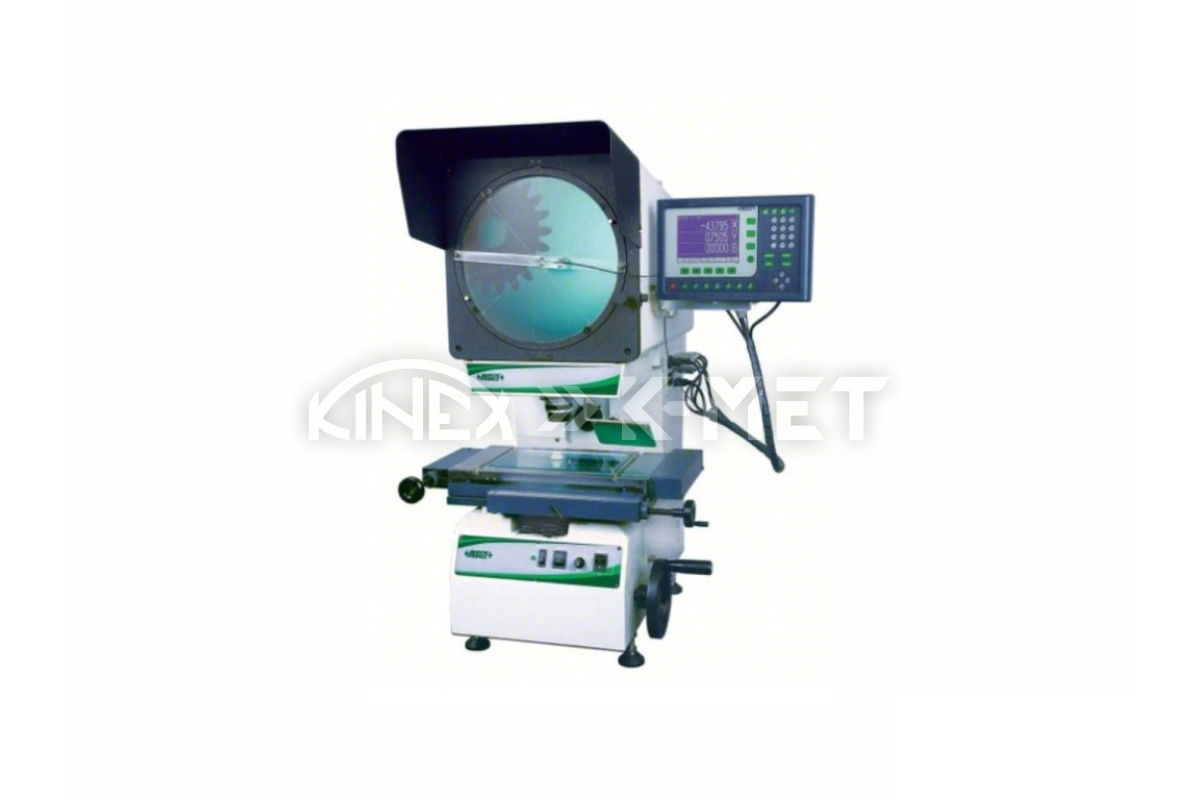

Profile projector ISP-A5000E INSIZE (ISP-A5000E)
- Brand: INSIZE
- Product Code: INISP-A5000E
- EAN: 6928640339554
- Weight: 183,00 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 10,564.40 EUR
Inc. Tax: 12,994.21 EUR

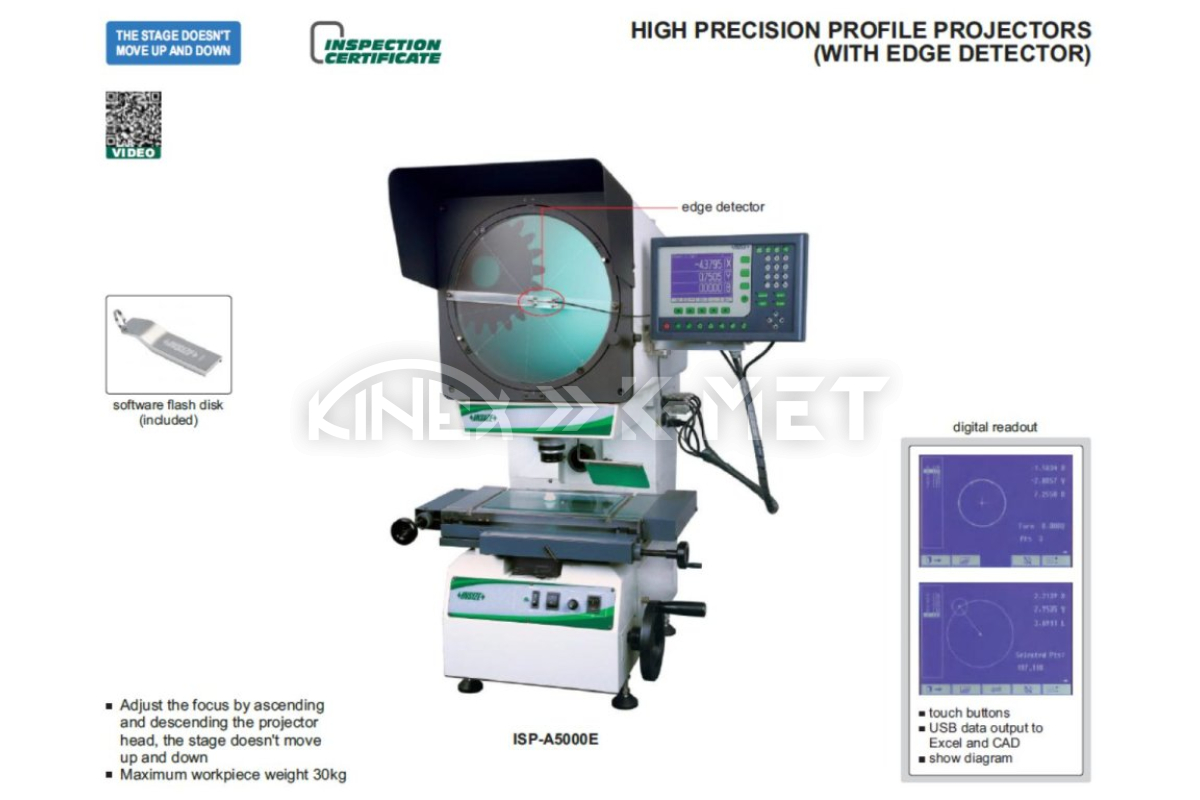

Profile projector ISP-A5000E from INSIZE with edge detector. With a maximum workpiece height of 90 mm and a maximum weight of 30 kg. With an accuracy of ± 0.08%, data output to Excel and CAD.
- Profile projector with edge detector
- Focus is adjusted by raising and lowering the projector head, the stage does not move up and down
- Equipped with a data processing unit

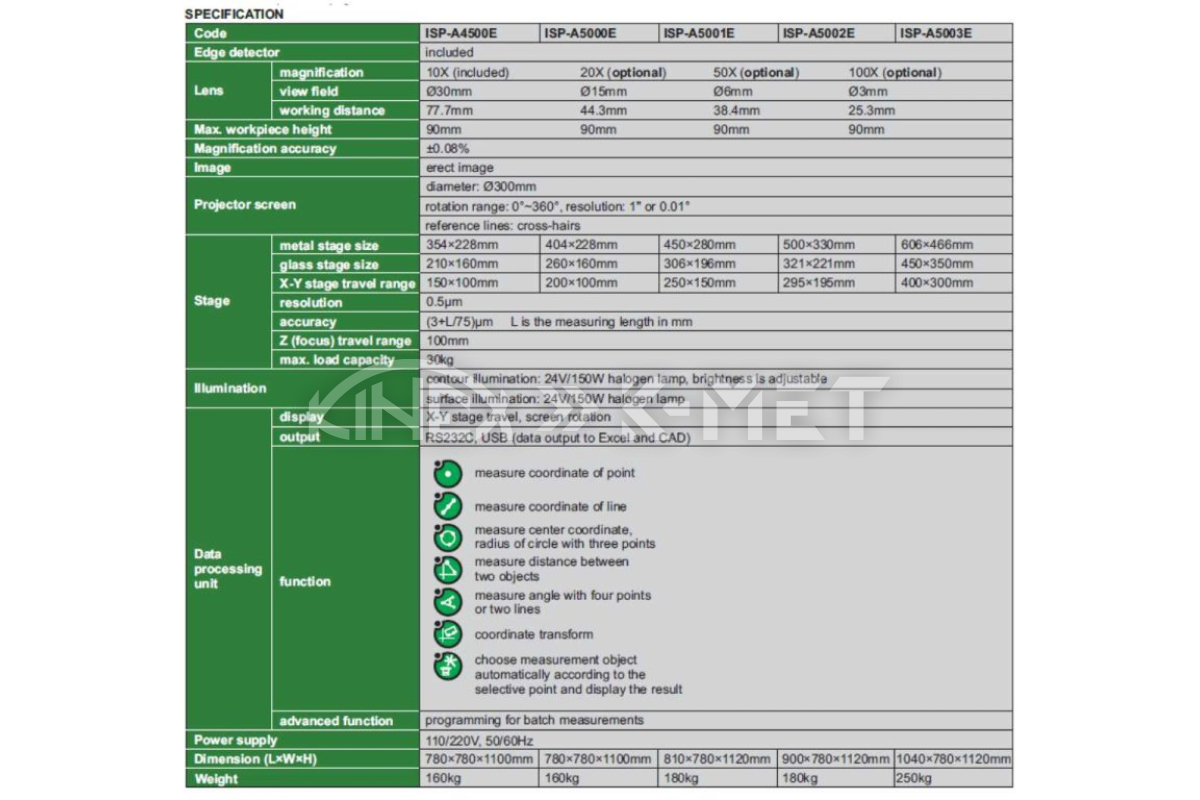

Technical specification
Lens
Magnification
- 20X (must be purchased separately)
Field of view
- ø 15 mm
Working distance
- 44.3 mm
Projector screen
Diameter
- ø 300 mm
Rotation range
- 0° ~ 360°
Reference lines
- Crosshair
Illumination
Contour illumination
- 24V/150W halogen bulb (brightness is adjustable)
Surface illumination
- 24V/150W halogen bulb
Functions
- Measurement of point and line coordinates
- Measurement of center coordinates, radius of a circle with three points
- Measurement of distance between two objects
- Measurement of angle using four points or two lines
- Automatically selects the measurement object based on the selected point and displays the result
- Advanced measurements: programming for batch measurements
Maximum workpiece height
- 90 mm
Maximum workpiece weight
- 30 kg
Magnification accuracy
- 0.08%
- Erect
Data output
- RS232C cable
- USB cable
Power supply
- 110/220, 50/60 Hz
Dimensions
- 780x780x1100 mm
Weight
- 160 kg

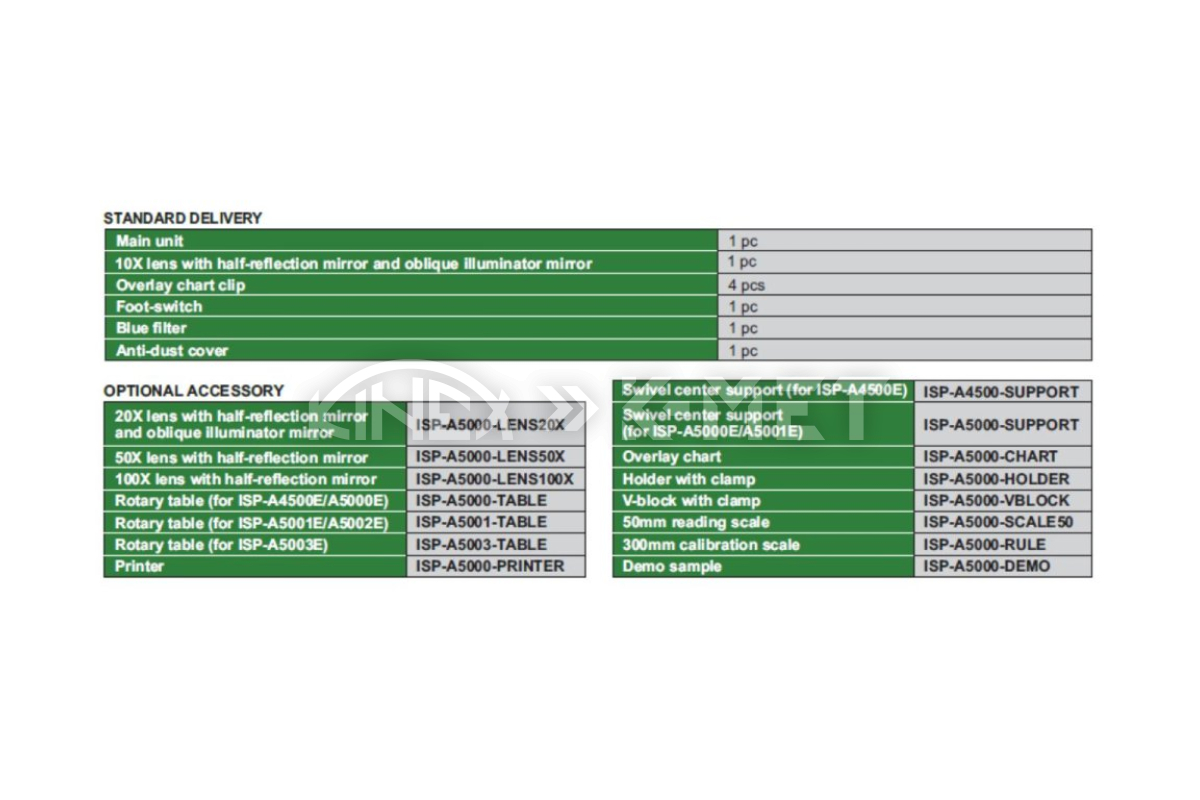

Package contents
- Profile projector ISP-A5000E
- Overlay chart clip
- Foot switch
- Blue filter
- Dust cover
+ We recommend ordering a Service package*
» professional installation
» complete setup for operation
» operator training
*Service prices are not included in the product price. Please contact us for the exact service price.
*3/25
