Profile projector ISP-A6000 INSIZE (ISP-A6000)
- Brand: INSIZE
- Product Code: INISP-A6000
- EAN: 6940561940206
- Weight: 360,00 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 34,578.50 EUR
Inc. Tax: 42,531.55 EUR

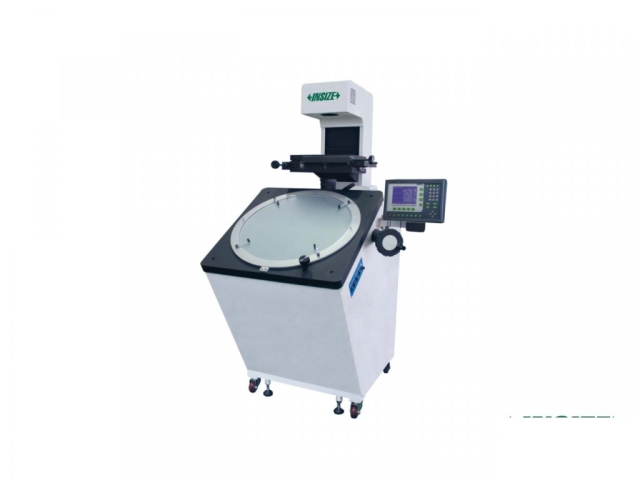

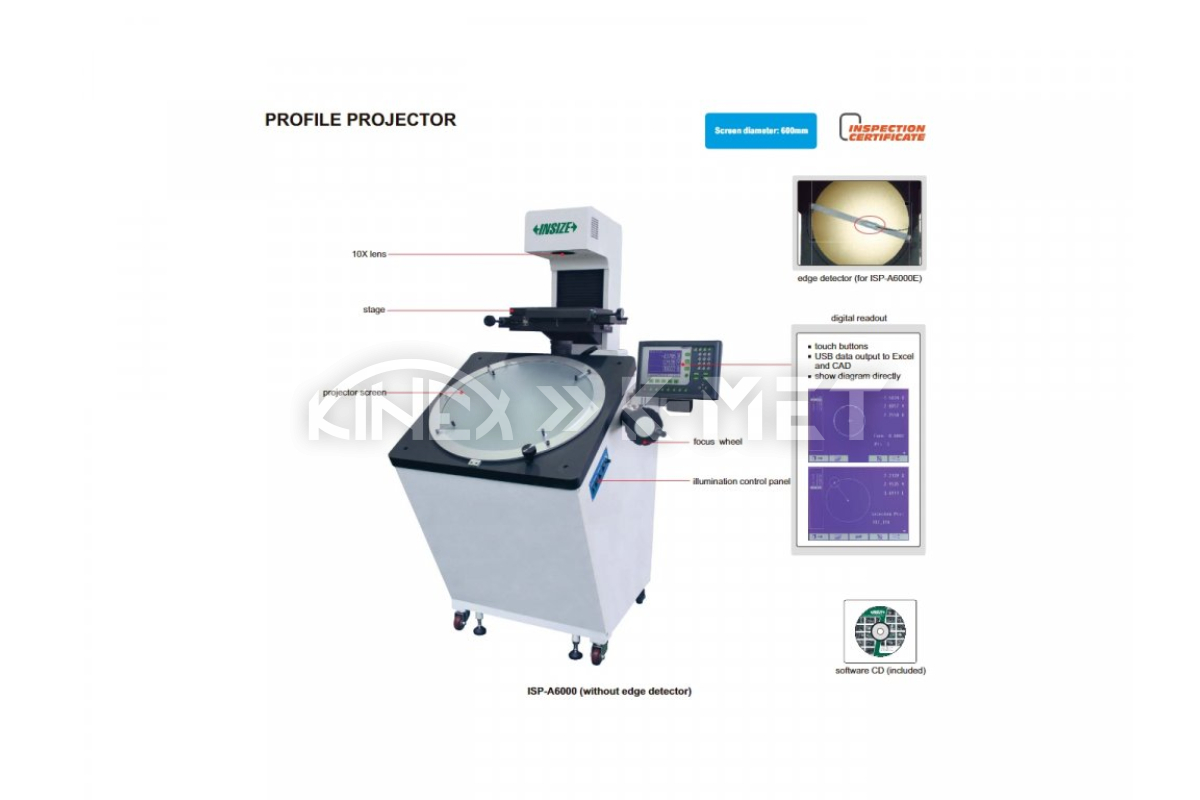

INSIZE Profile projector ISP-A6000 with 10X magnification and ±0.08% accuracy. The glass screen diameter is 600 mm and it is rotatable by 360°. With data output capability via RS232C and USB.
- Intuitive control display
- All data can be sent to Excel and CAD via USB
- Batch measurement capability

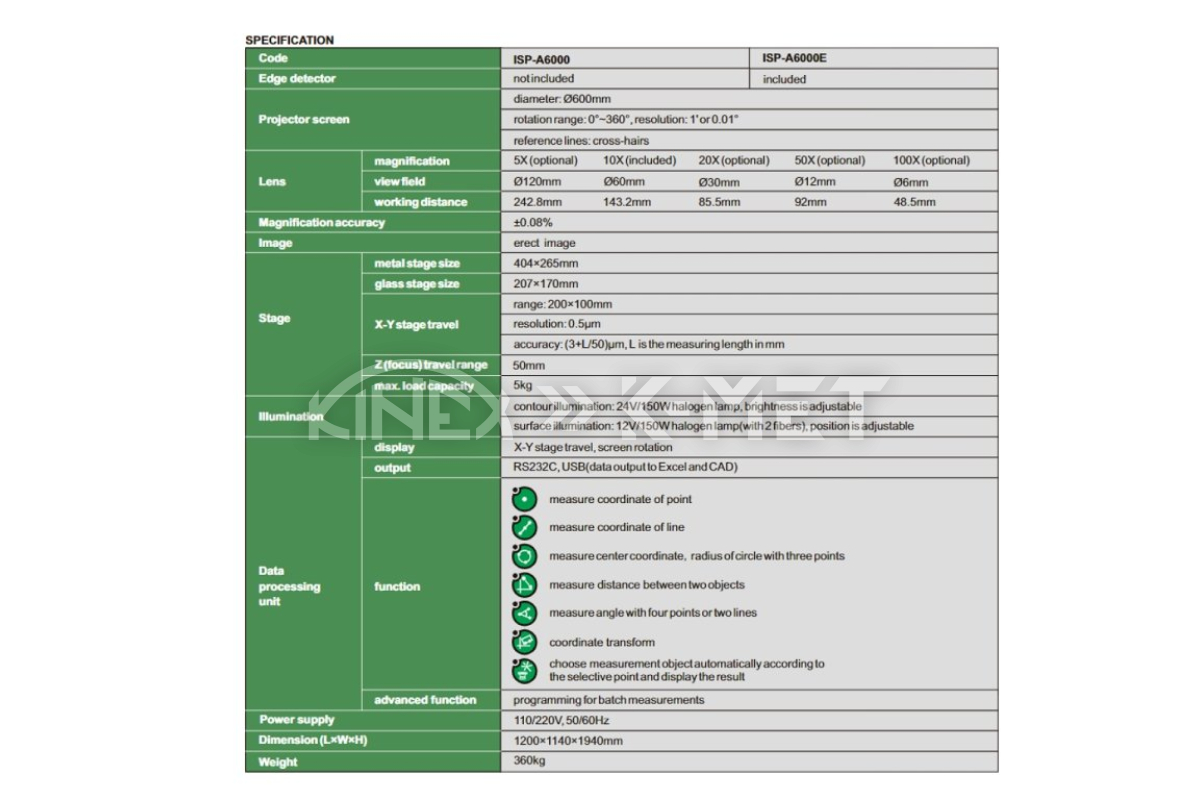

Technical specification
Magnification
- 10X (optional 5X, 20X, 50X, 100X)
Field of view
- Ø 60 mm (optional 120 mm, 30 mm, 12 mm, 6 mm)
Working distance
- 143.2 mm (optional 242.8 mm, 85.5 mm, 92 mm, 48.5 mm)
Magnification accuracy
- ±0.08%
- Apparent (virtual)
Projector screen / glass screen
- Diameter: Ø 600 mm
- Rotation range: 0°~360°
- Resolution: 1" or 0.01°
- Reference lines: Crosshair
Stage
- Metal stage dimensions
- 404x265 mm
- Glass surface dimensions
- 207x170 mm
- X-Y stage travel
- Range: 207x170 mm
- Resolution: 0.5 µm
- Accuracy (L is length in mm): (3+L/50)µm
- Z travel (focus)
- 50 mm
- Max load
- 5 kg
Illumination
- Contour
- 24V/150W halogen lamp with adjustable brightness
- Surface
- 24V/150W halogen lamp (two filaments), adjustable position
Measuring unit
- Display
- X-Y travel, rotating display
- Output
- RS252C and USB (data output to Excel and CAD)
- Functions
- Point position measurement
- Line position measurement
- Circle center measurement with three points
- Distance measurement between two objects
- Angle measurement between two lines or four points
- Coordinate shift
- Automatic object measurement based on selected point
- Other functions
- Batch measurement
Weight
- 360 kg

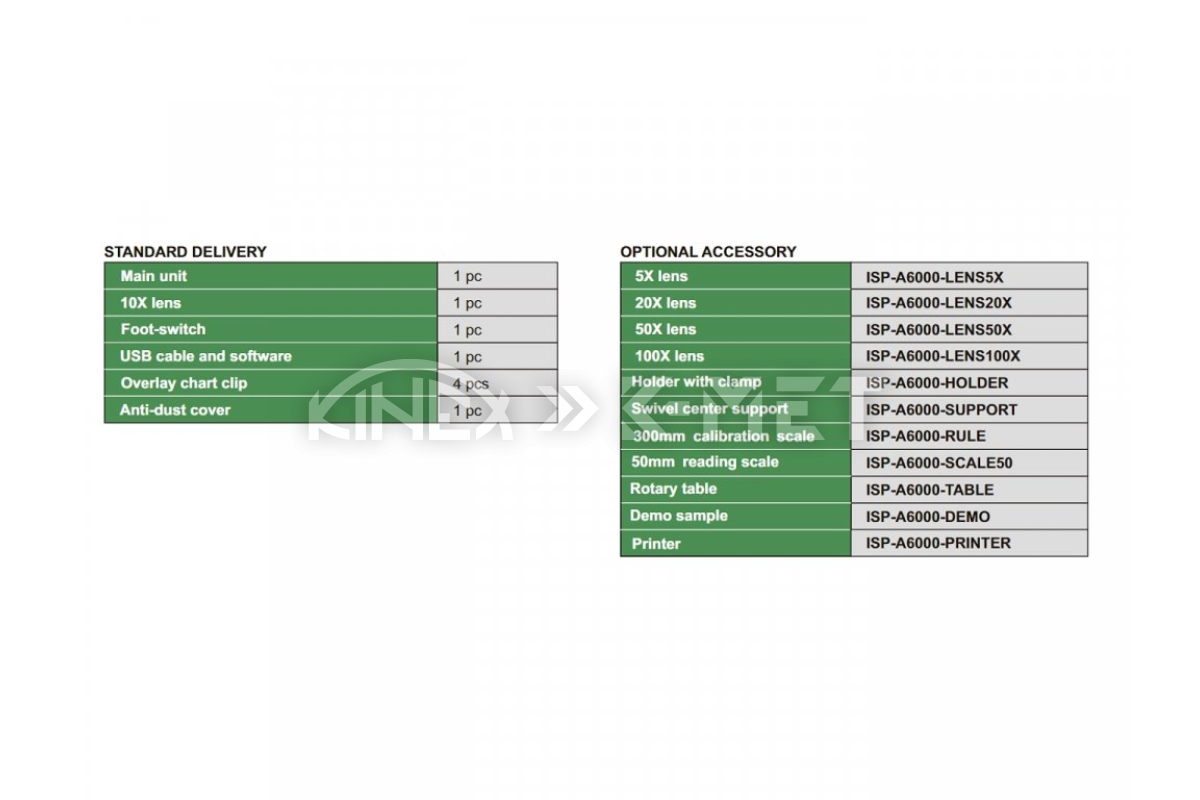

Standard package
- INSIZE ISP-A6000 Profile projector
- 10X lens
- Clips for attaching film to the screen
- Foot switch
- Dust cover
- USB cable

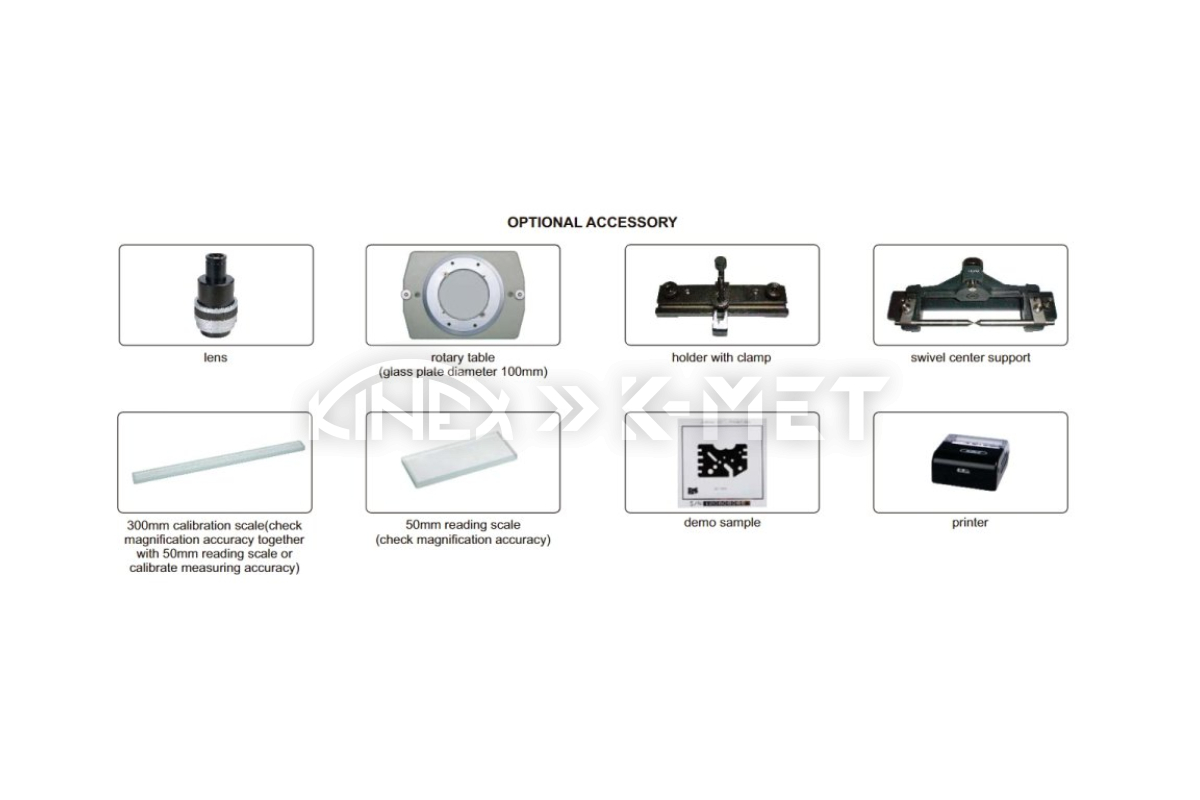

Optional accessories
- 5X lens (ISP-A6000-LENS5X)
- 20X lens (ISP-A6000-LENS20X)
- 50X lens (ISP-A6000-LENS50X)
- 100X lens (ISP-A6000-LENS100X)
- Rotary table (ISP-A6000-TABLE)
- Clamp holder (ISP-A6000-HOLDER)
- Swivel center support (ISP-A6000-SUPPORT)
- 50 mm reading scale (ISP-A6000-SCALE50)
- 300 mm inspection scale (ISP-A6000-RULE)
- Demonstration piece (ISP-A6000-DEMO)
- Printer (ISP-A6000-PRINTER)
+ Service package of necessary services*
» professional installation
» complete setup for operation
» operator training
* Service prices are not included in the device price. Please contact us for the exact service price.
