Set of Bow Micrometers with Friction Clutch 0-100 mm HELIOS-PREISSER (0806513)

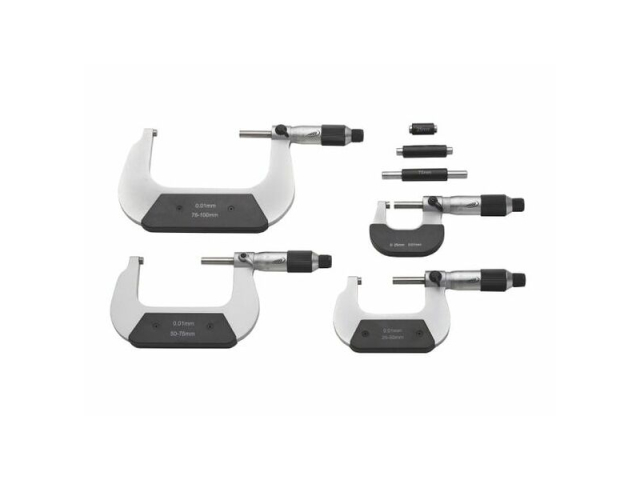

Set of Bow Micrometers with Friction Clutch 0-100 mm HELIOS-PREISSER

Discover top-tier precision and reliability with this professional set of bow micrometers from the renowned brand HELIOS-PREISSER. This comprehensive set is designed for the most demanding measurements in the 0-100 mm range, representing an ideal tool for mechanical engineering, quality control, and precise workshop tasks. Thanks to the advanced friction clutch (ratchet), consistent contact pressure is ensured, eliminating errors caused by varying user force and guaranteeing repeatable and accurate results.

Each micrometer in the set is manufactured in accordance with DIN 863-1, which underscores its high quality and reliability. The robust construction with matte chrome-plated reading parts ensures excellent readability and resistance to wear. Hard metal measuring surfaces guarantee long life and accuracy even with intensive use. Thermal insulation minimizes the influence of temperature changes on measurements, which is crucial for achieving maximum precision in various working environments. With the locking lever, you can easily secure the measured value for convenient reading.

Key Technical Parameters:

• Measuring Range: 0 - 100 mm
• Reading Accuracy: 0.01 mm
• Standard: DIN 863-1
• Mechanism: Friction clutch (ratchet) for consistent contact pressure
• Reading Parts Material: Matte chrome-plated
• Function: Locking lever for measurement fixation
• Measuring Surfaces: Made of hard metal for long life
• Construction: Thermally insulated body
• Error Limit: 0.005 mm (5 µm)
• Spindle Pitch: 0.5 mm
• Spindle Diameter: 6.5 mm

Manufacturer: Helios-Preisser Vertrieb Mahr GmbH
