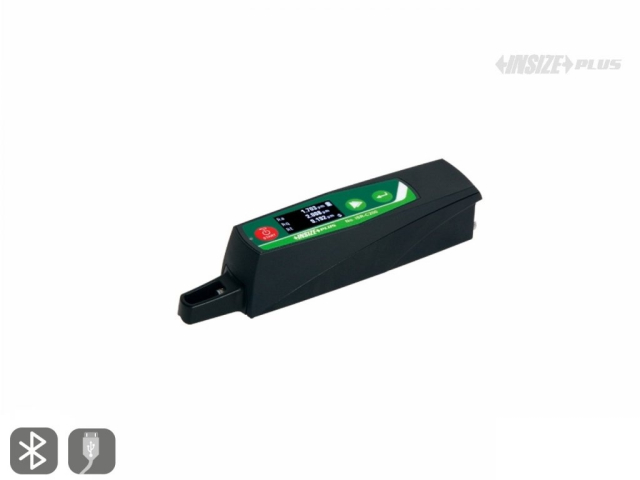

Surface Roughness Tester ISR-C200 INSIZE PLUS (ISR-C200)
- Brand: INSIZE
- Product Code: INISR-C200
- EAN: 6940561953589
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 2,354.00 EUR
Inc. Tax: 2,895.42 EUR

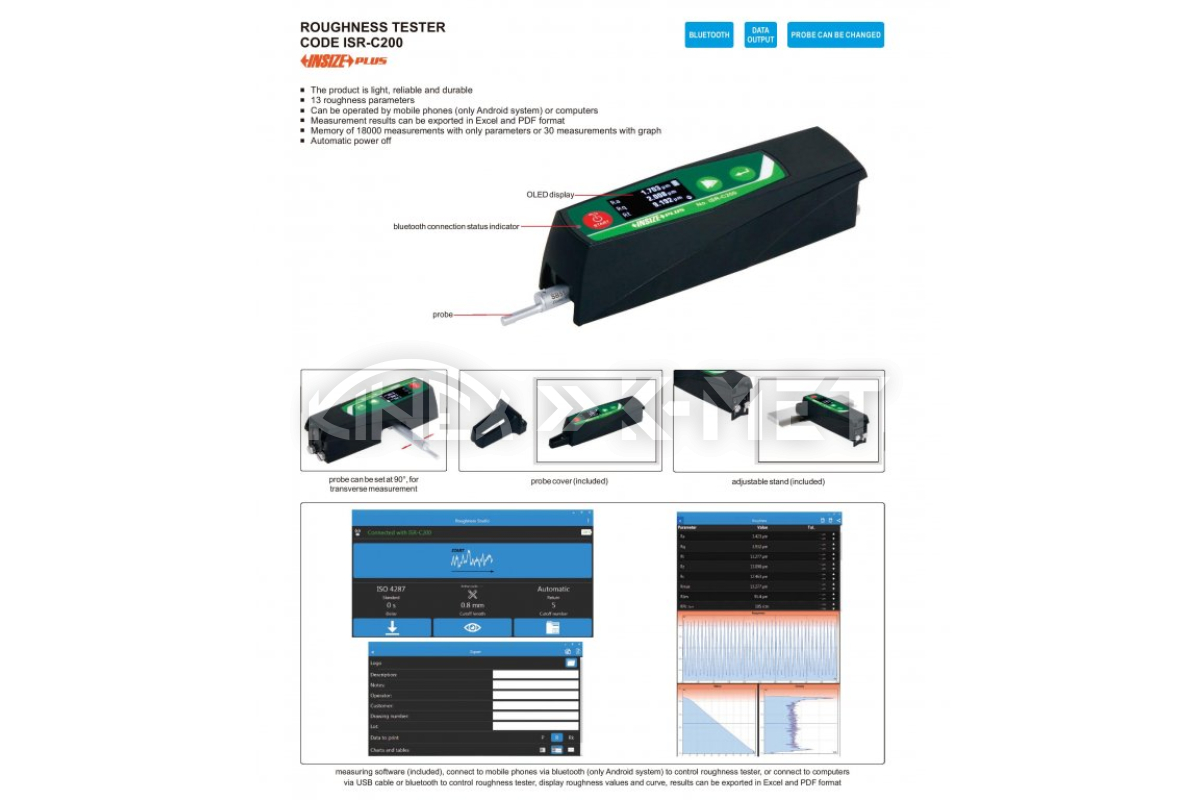

The reliable ISR-C200 surface roughness tester from INSIZE's PLUS series distinguishes 13 roughness parameters and can be wirelessly connected to an Android mobile phone, tablet, or PC. Data can be saved with a graph.
- Lightweight, reliable, and durable roughness tester with OLED display
- Distinguishes 13 roughness parameters
- Can be connected to an Android device or PC
- Data can be exported to PDF or Excel
- Memory for 18000 measurements with data, or 30 measurements with graphs
- Automatic shutdown when idle
- The probe can be plugged in from the front or the side
- Supplied with a cover
Measurement Software
Connecting the roughness tester and an Android mobile phone
- Bluetooth technology
- Roughness tester control
Connecting the roughness tester and PC
- Bluetooth or USB cable
- Roughness tester control
- Display of values and curves
- Data can be exported to PDF or Excel
Technical Specification
Roughness Parameters
- Ra, Rq, Rt, Rz, Rc, Rmax, RSm, Rpc, Pt, R, AR, Rx, Ppc
Axis Ranges
- X-axis
- 17.5 mm
- Z-axis
- 250 µm
Accuracy
- +-(5%+0.025)µm
Resolution
- 0.001µm
Probe
- Inductive type
- 2µm/90° radius / angle
- Diamond
Measuring Unit
- µm/µin
Cut-off Wavelength
- 0.25 | 0.8 | 2.5 mm
- count 1~5
Speed
- 0.5 mm/s
- 1mm/s
Memory
- 18000 measurements with parameters
- 30 measurements with graphs
Package Contents
- ISR-C200 INSIZE Roughness Tester
- Standard probe with cover
- Calibration block
- Customizable stand
- Adapter for magnetic stand
- Software and USB cable
- AC/DC adapter
Additional Accessories
- Dial indicator adapter (6293-6)
- Groove probe (ISR-C200-SB21)
- Hole probe (ISR-C200-SB31)
- Deep groove probe (ISR-C200-SB121)
- 50 mm extension rod (ISR-C200-ER50)
- 100 mm extension rod (ISR-C200-ER100)
