Tube Micrometer with spherical measuring face 0-25/0.01 mm, type A INSIZE (3260-25A)
- Brand: INSIZE
- Product Code: IN3260-25A
- EAN: 6928640305771
- Weight: 0,34 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 40.80 EUR
Inc. Tax: 50.18 EUR

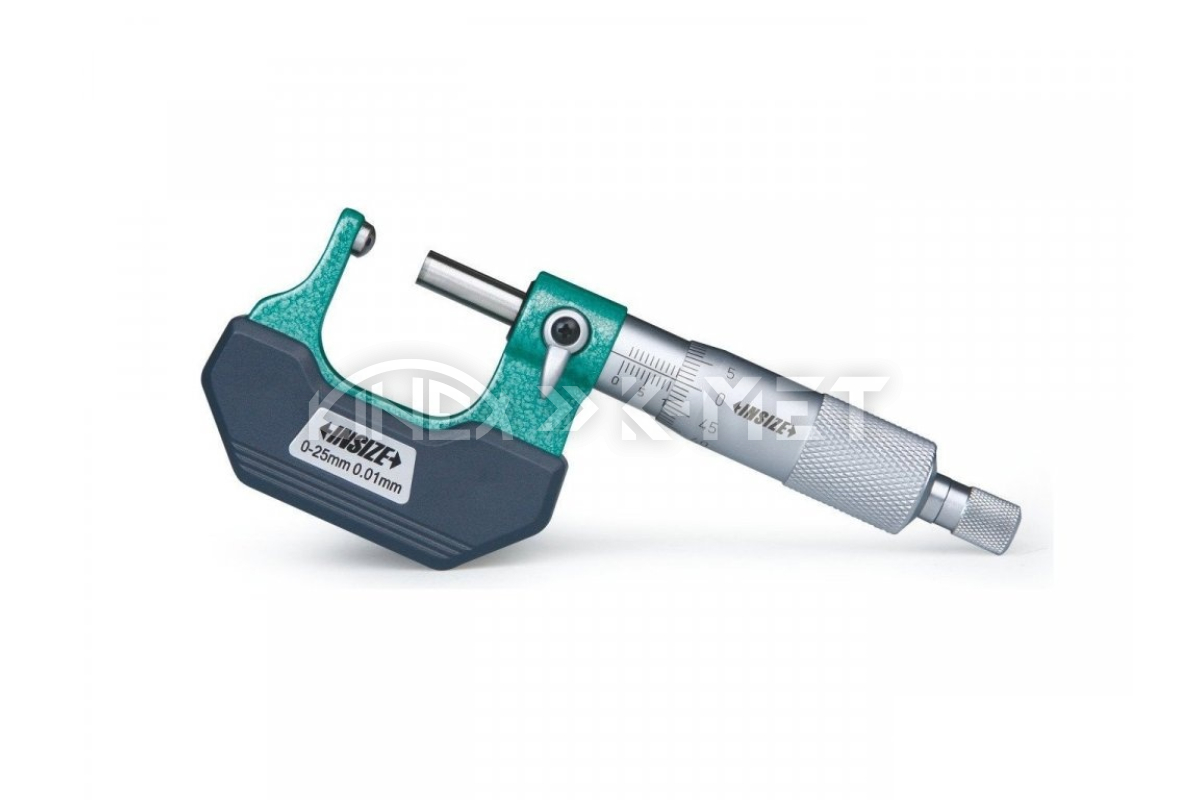

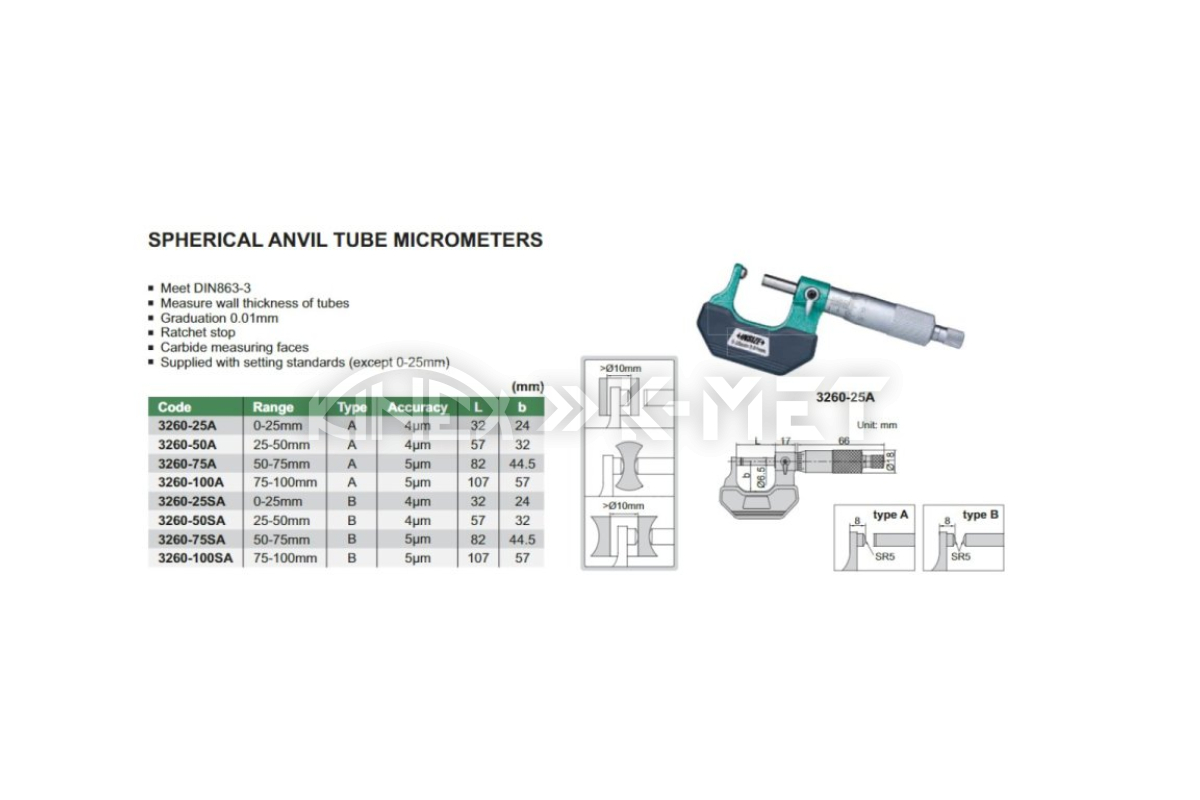

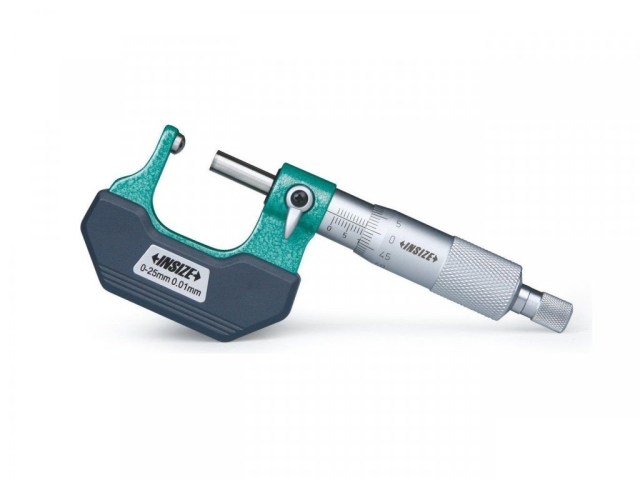

Mechanical micrometer with carbide measuring faces INSIZE with a range of 0-25 mm and a scale division of 0.01 mm for measuring the wall thickness of tubes, curved surfaces, bearings, and rings. Type A - spherical contact on one side.
- Complies with DIN863-3
- With spindle lock
- Measurement of wall thickness of tubes, curved surfaces, bearings, and rings
- With integrated ratchet
- Carbide contacts
Range
- 0-25 mm
Scale division
- 0.01 mm
Accuracy
- 4 µm

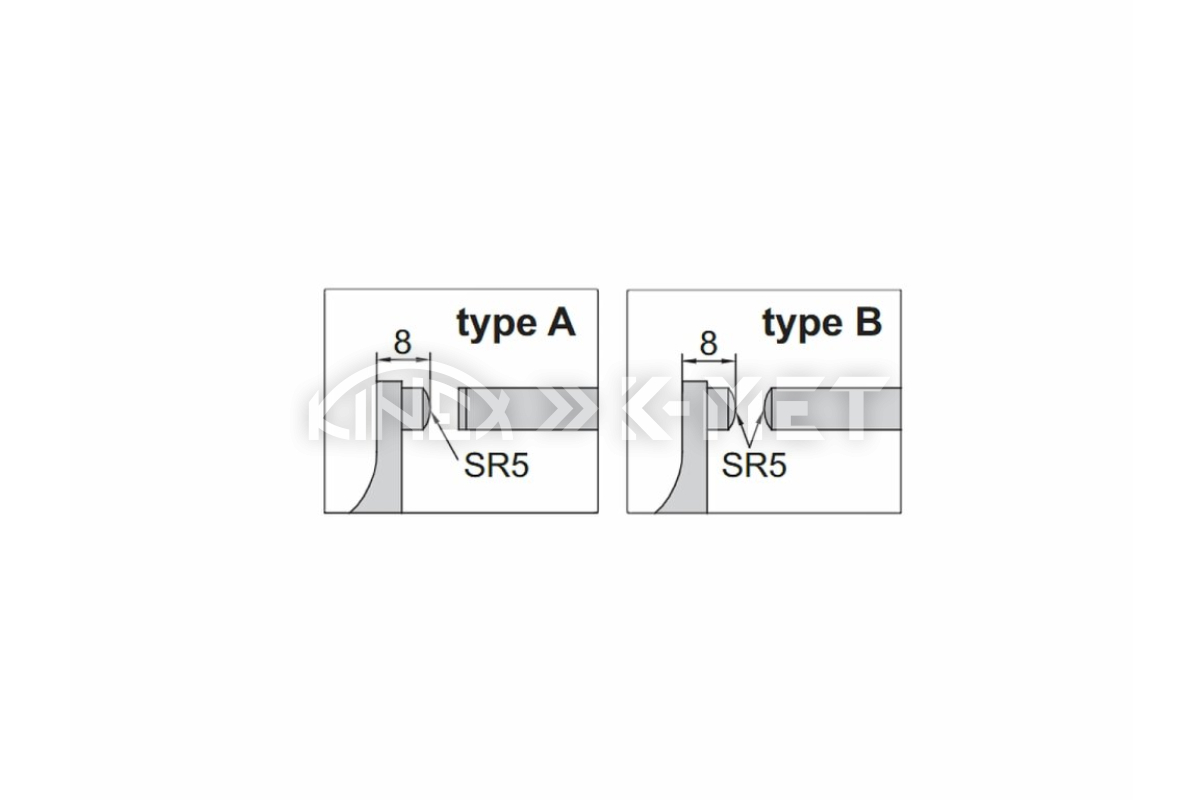

Type
- A (spherical contact on one side)
