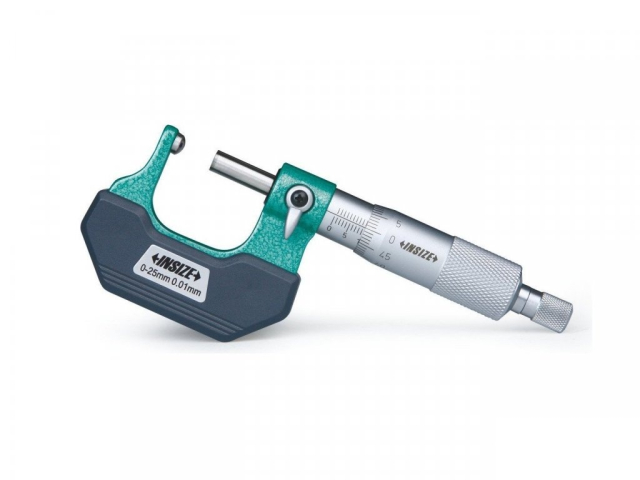

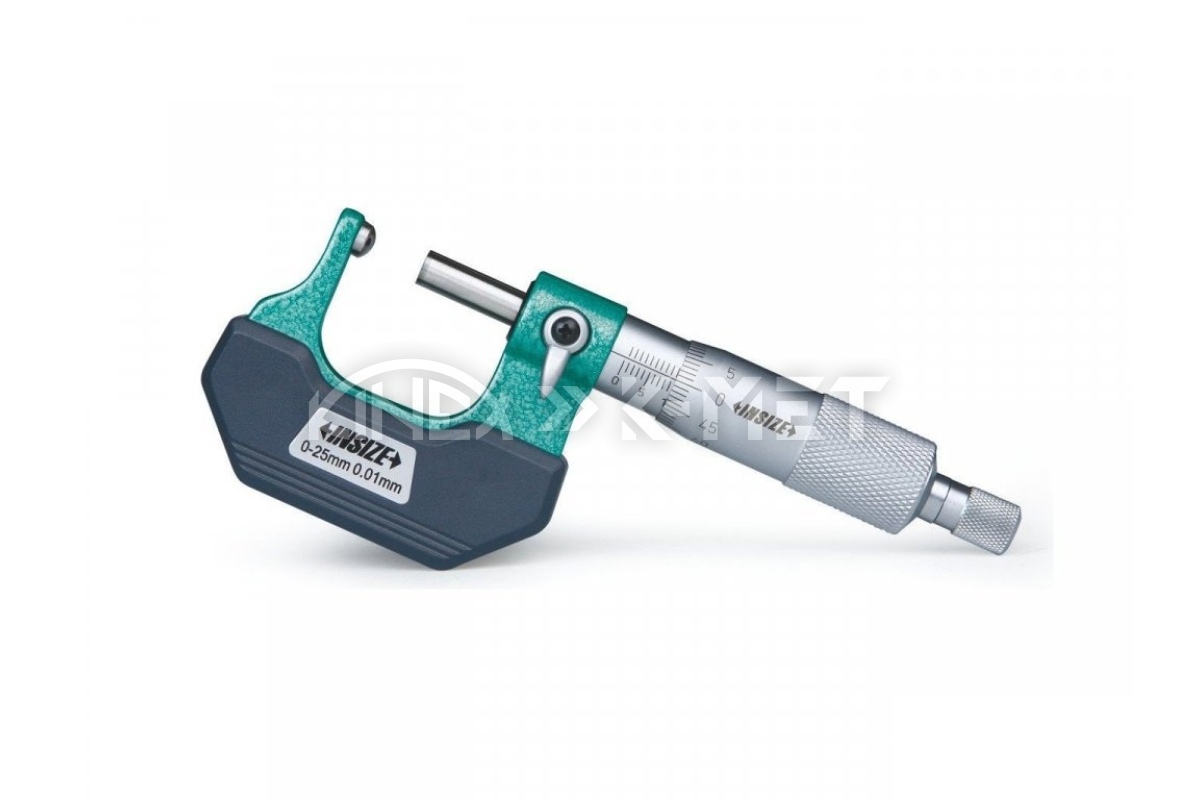

Tube Micrometer with spherical measuring face 75-100/0.01 mm, type A INSIZE (3260-100A)
- Brand: INSIZE
- Product Code: IN3260-100A
- EAN: 6928640305801
- Weight: 0,82 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 69.20 EUR
Inc. Tax: 85.12 EUR
Mechanical micrometer with carbide measuring faces INSIZE with a range of 75-100 mm and a scale division of 0.01 mm for measuring the wall thickness of pipes, curved surfaces, bearings and rings. Type A - spherical contact on one side.
- Corresponds to DIN863-3
- With spindle lock
- Measurement of wall thickness of pipes, curved surfaces, bearings and rings
- With integrated ratchet
- Carbide contacts
- Including setting gauge
Range
- 75-100 mm
Scale division
- 0.01 mm
Accuracy
- 5 µm

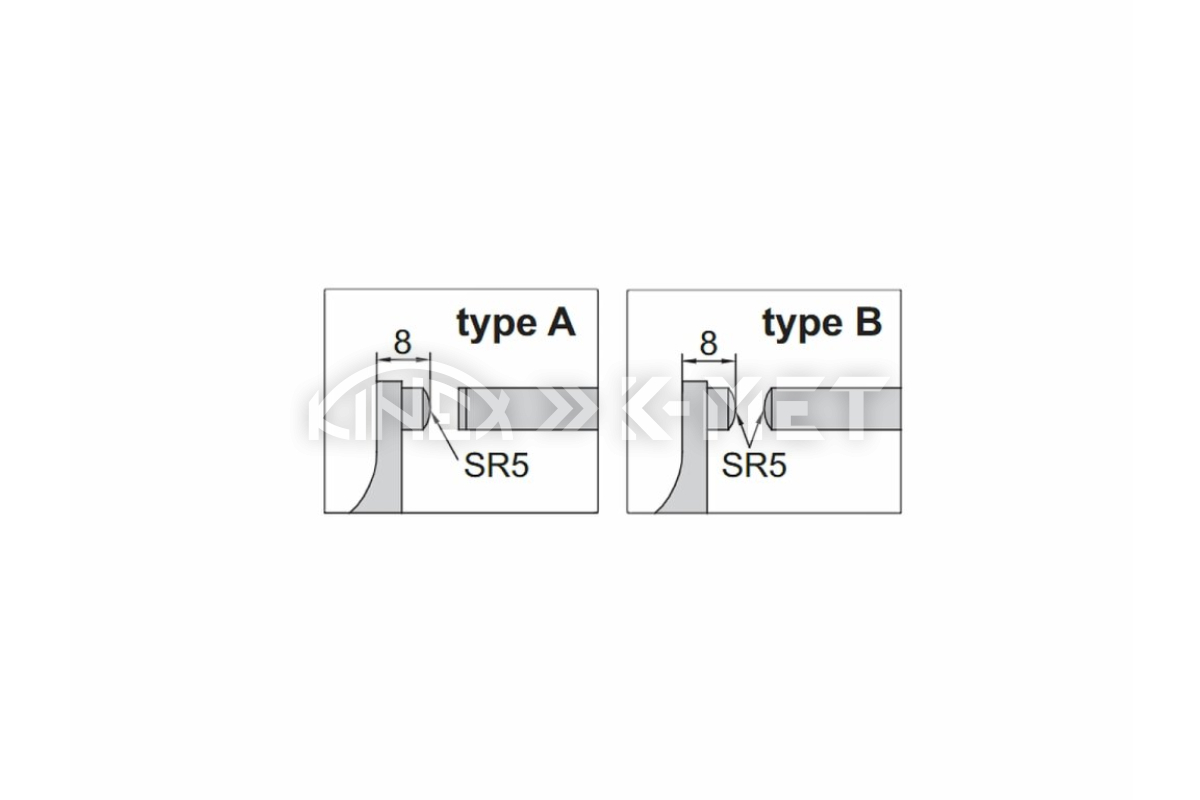

Type
- A (spherical contact on one side)
