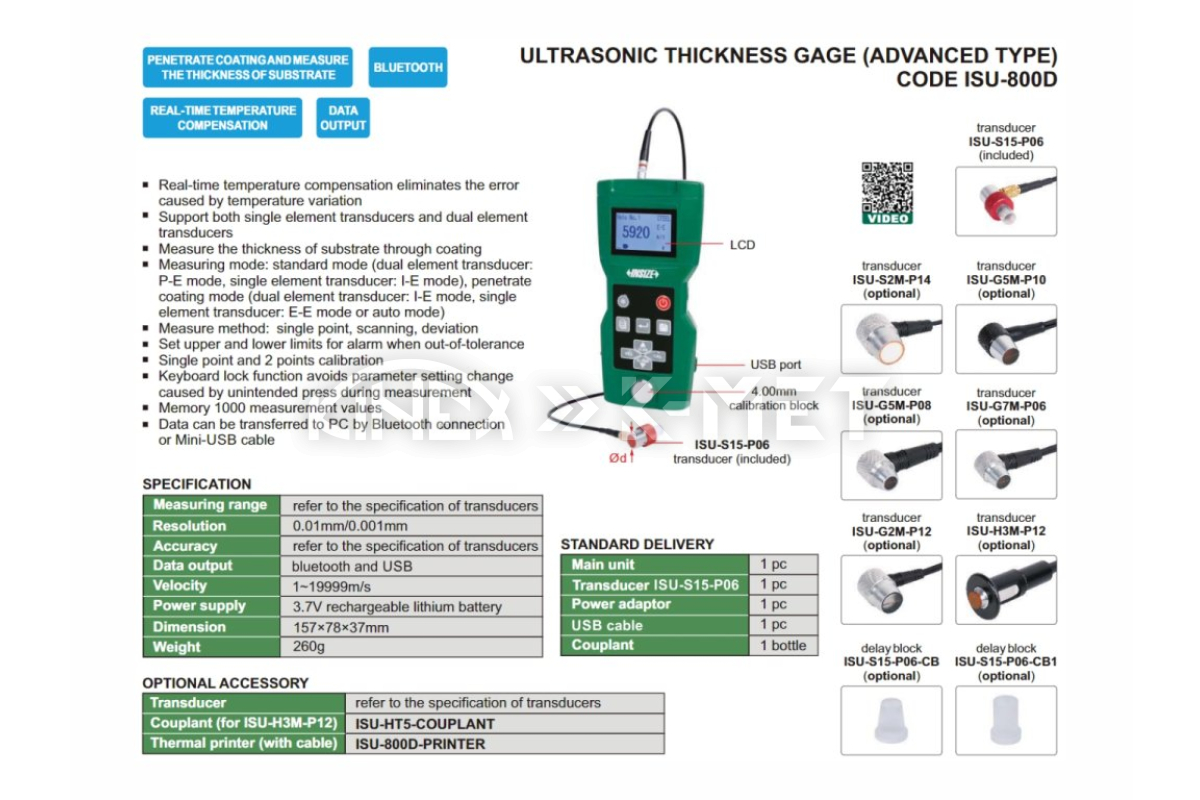

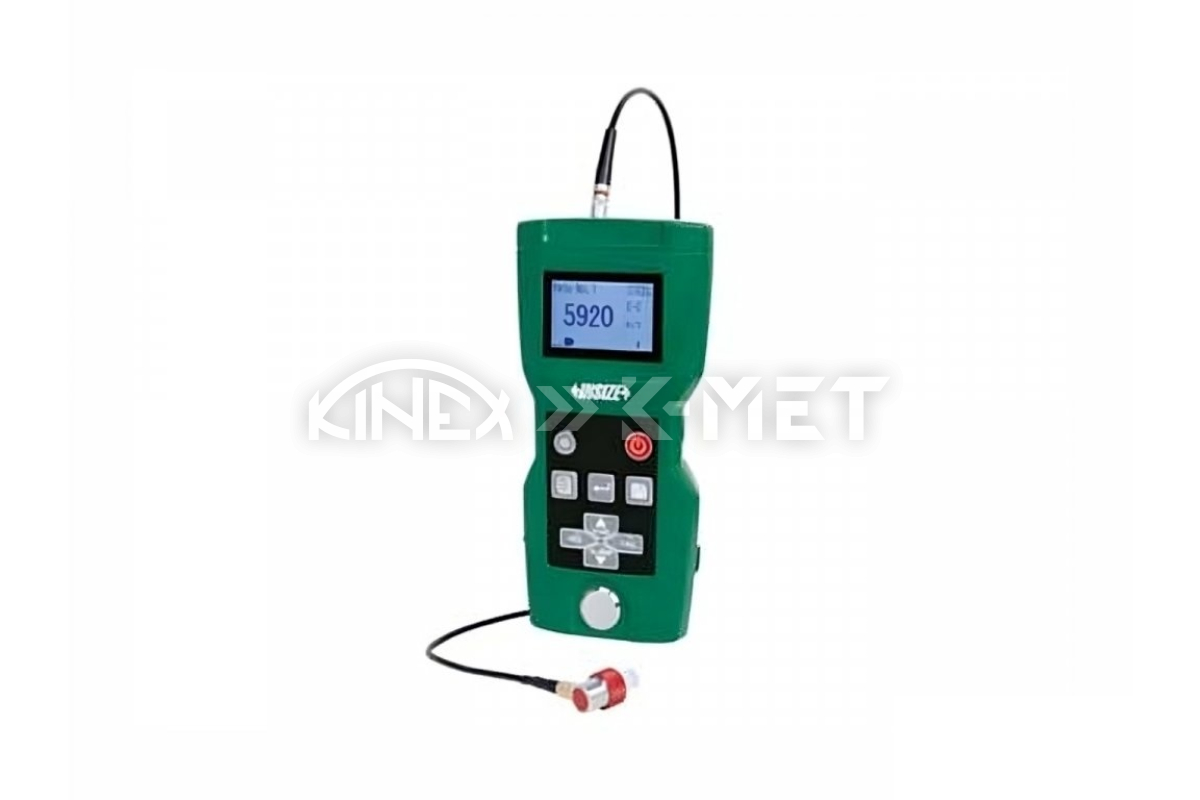

Ultrasonic Thickness Gauge, Advanced Type ISU-800D INSIZE (ISU-800D)

• Measures wall thickness through coating
• Real-time temperature compensation eliminates error caused by temperature fluctuations
• Support both single-element transducers and dual-element transducers
• Measurement mode
  • standard mode (dual-element transducer; P-E mode), (single-element transducer; I-E mode)
  • coating penetration mode (dual-element transducer; I-E mode), (single-element transducer; E-E mode or auto mode)
• Measurement method
  • single point
  • scan
  • deviation
• Set upper and lower limits for out-of-limit alerts
• Single-point and two-point calibration
• Key lock function prevents parameter setting changes caused by accidental presses during measurement
• Memory for up to 1000 measured values
• Data can be transferred to PC via Bluetooth or Mini-USB

Technical Specification

Measuring Range

• see transducer specifications

Resolution

• 0.01 mm
• 0.001 mm

Accuracy

• see transducer specifications

Speed

• 1~19999 m/s

Data Output

• Bluetooth
• USB

Power Supply

• 3.7V rechargeable lithium battery

Dimensions

• 157x78x37 mm

Weight

• 260 g

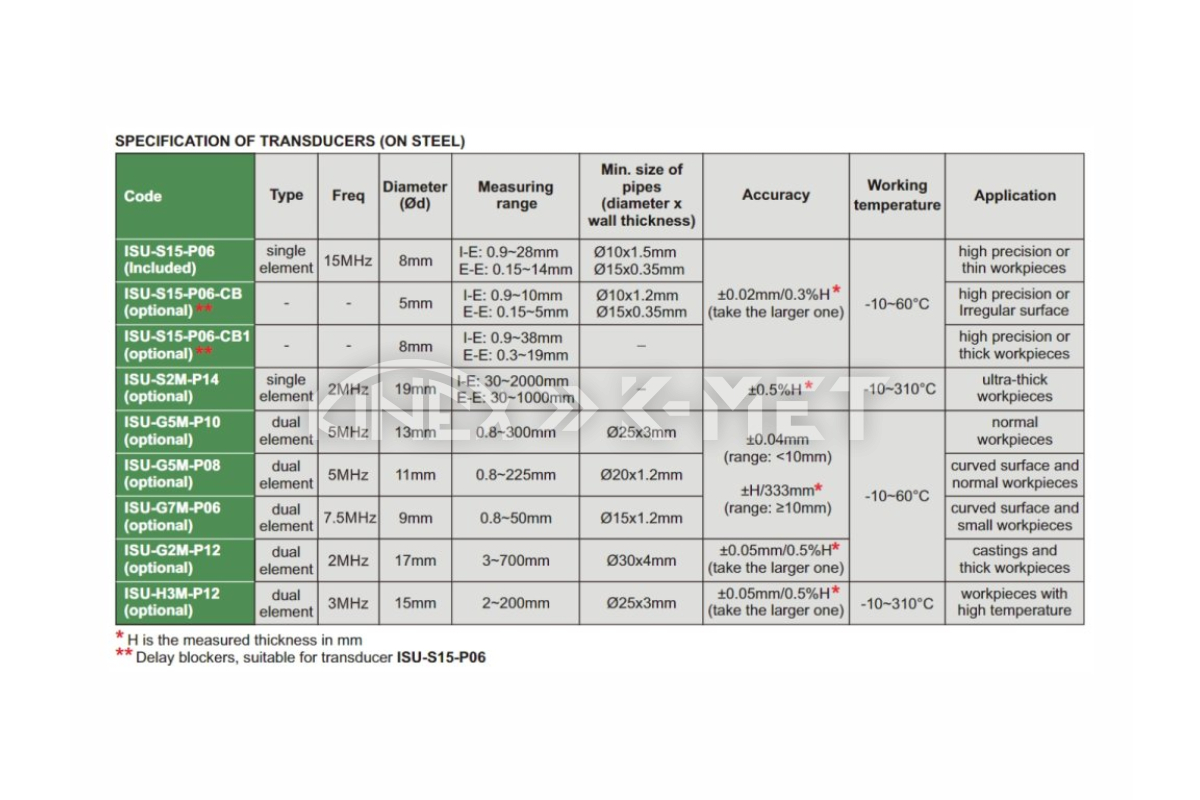

Transducer Specifications

ISU-S15-P06 (included)

• Type: Single-element
• Frequency: 15 MHz
• Diameter: ⌀8 mm
• Measuring Range: I-E (0.9~28 mm), E-E (0.15~14 mm)
• Min. Pipe Size (Diameter x Wall Thickness): I-E (⌀10x1.5 mm), E-E (⌀15x0.35 mm)
• Accuracy:±0.02 mm/0.3%H (H is the measured thickness in mm)
• Working Temperature: -10~60°C
• Application: for very precise measurements or thin parts

ISU-S15-P06-CB (optional) *Delay Block for ISU-S15-P06

• Diameter: ⌀5 mm
• Measuring Range: I-E (0.9~10 mm), E-E (0.15~5 mm)
• Min. Pipe Size (Diameter x Wall Thickness): I-E (⌀10x1.2 mm), E-E (⌀15x0.35 mm)
• Accuracy:±0.02 mm/0.3%H (H is the measured thickness in mm)
• Working Temperature: -10~60°C
• Application: for very precise measurements or parts with irregular surfaces

ISU-S15-P06-CB1 (optional) *Delay Block for ISU-S15-P06

• Diameter: ⌀8 mm
• Measuring Range: I-E (0.9~38 mm), E-E (0.3~19 mm)
• Accuracy:±0.02 mm/0.3%H (H is the measured thickness in mm)
• Working Temperature: -10~60°C
• Application: for very precise measurements or thick parts

ISU-S2M-P14 (optional)

• Type: Single-element
• Frequency: 2 MHz
• Diameter: ⌀19 mm
• Measuring Range: I-E (30~2000 mm), E-E (30~1000 mm)
• Accuracy:±0.5%H (H is the measured thickness in mm)
• Working Temperature: -10~310°C
• Application: very thick parts

ISU-G5M-P10 (optional)

• Type: Dual-element
• Frequency: 5 MHz
• Diameter: ⌀13 mm
• Measuring Range: 0.8~300 mm
• Min. Pipe Size (Diameter x Wall Thickness): ⌀25x3 mm
• Accuracy:±0.04 mm (Range: <10 mm), ±H/333 mm (Range: ≥10 mm) (H is the measured thickness in mm)
• Working Temperature: -10~60°C
• Application: normal parts

ISU-G5M-P08 (optional)

• Type: Dual-element
• Frequency: 5 MHz
• Diameter: ⌀11 mm
• Measuring Range: 0.8~225 mm
• Min. Pipe Size (Diameter x Wall Thickness): ⌀20x1.2 mm
• Accuracy:±0.04 mm (Range: <10 mm), ±H/333 mm (Range: ≥10 mm) (H is the measured thickness in mm)
• Working Temperature: -10~60°C
• Application: round and normal parts

ISU-G7M-P06 (optional)

• Type: Dual-element
• Frequency: 7.5 MHz
• Diameter: ⌀9 mm
• Measuring Range: 0.8~50 mm
• Min. Pipe Size (Diameter x Wall Thickness): ⌀15x1.2 mm
• Accuracy:±0.04 mm (Range: <10 mm), ±H/333 mm (Range: ≥10 mm) (H is the measured thickness in mm)
• Working Temperature: -10~60°C
• Application: round and small parts

ISU-G2M-P12 (optional)

• Type: Dual-element
• Frequency: 2 MHz
• Diameter: ⌀17 mm
• Measuring Range: 3~700 mm
• Min. Pipe Size (Diameter x Wall Thickness): ⌀30x4 mm
• Accuracy:±0.05 mm/0.5%H (H is the measured thickness in mm)
• Working Temperature: -10~60°C
• Application: castings and thick parts

ISU-H3M-P12 (optional)

• Type: Dual-element
• Frequency: 3 MHz
• Diameter: ⌀15 mm
• Measuring Range: 2~200 mm
• Min. Pipe Size (Diameter x Wall Thickness): ⌀25x3 mm
• Accuracy:±0.05 mm/0.5%H (H is the measured thickness in mm)
• Working Temperature: -10~310°C
• Application: high-temperature parts

Package Contents

• Ultrasonic thickness gauge ISU-800D (1 pc)
• Transducer ISU-S15-P06 (1 pc)
• Power adapter (1 pc)
• USB cable (1 pc)
• Coupling agent (1 pc)

Optional Accessories

• Transducers - see transducer specifications
• Coupling agent ISU-HT5-COUPLANT
• Thermal printer ISU-800D-PRINTER
