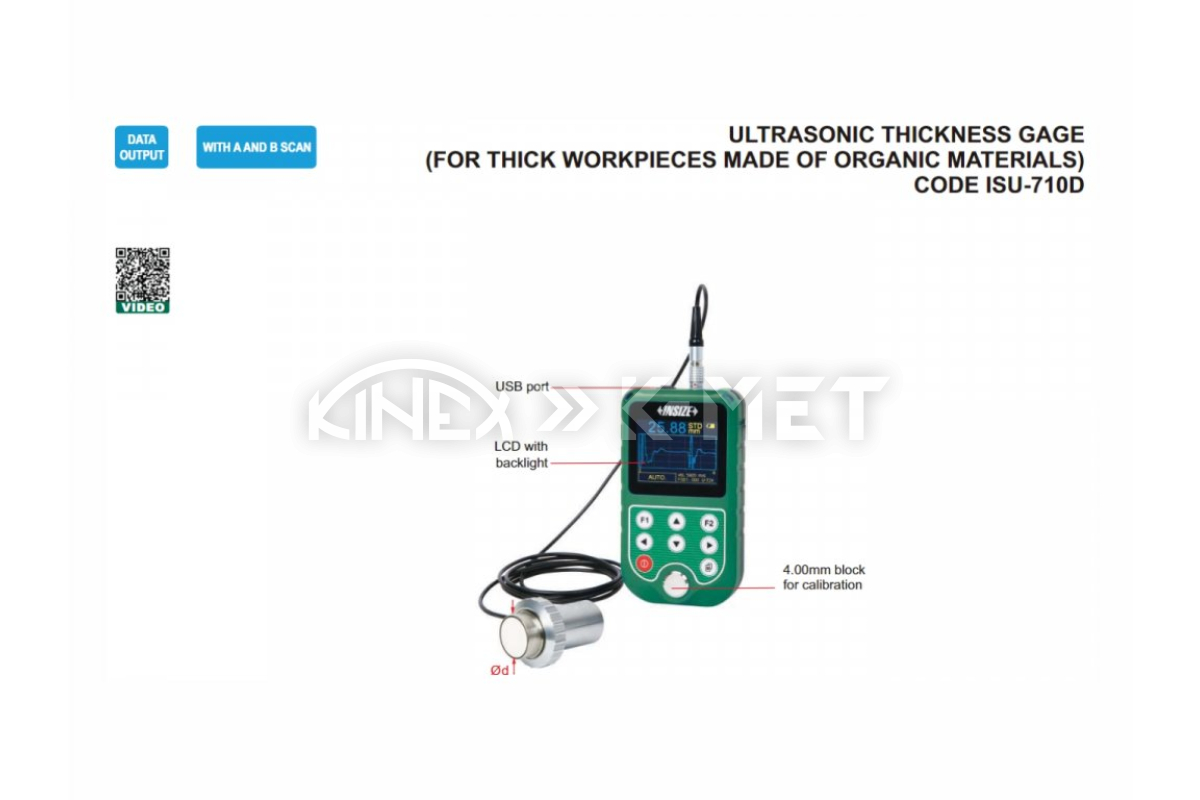

Ultrasonic thickness gauge, for thick parts ISU-710D INSIZE (ISU-710D)

• For thick parts made of organic materials
• A scan, signal scanning assesses whether there are impurities, pores, cracks, etc. inside to prevent incorrect measurement
• B scan, measures continuously, displays thickness change on the screen
• Transducers can be automatically identified and zeroed
• Memory for up to 10,000 measured values
• Data can be entered into Excel and Word as keyboard signals
• Automatic or manual measurement
• When transducers are removed from parts, measured data is retained on the screen for easy viewing
• Set upper and lower limits for tolerance violation alerts
• Automatic shutdown

Technical specification

Measuring range

• 20~590 mm

Resolution

• 0.1 mm
• 0.01 mm

Accuracy(H is the measured thickness in mm)

• ±(0.04+H/1000) mm (H<100 mm)
• ±H/333 mm (H≥100 mm)

Transducer

• Type: single-element
• Frequency: 1 MHz
• Diameter: ⌀26 mm

Display

• 320x240, color display

Velocity

• 1000~9999 m/s

Measurement frequency

• 2 times/s
• 10 times/s

Operating temperature

• Thickness gauge: -20~50°C
• Transducer: -20~60°C

Data output

• USB

Measurement units

• mm
• inch

Power supply

• 2x 1.5 V AA batteries

Dimensions

• 133x75x29 mm

Weight

• 260 g (including batteries)

Package contents

• Ultrasonic thickness gaugeISU-710D(1 pc)
• Transducer(1 pc)
• AA Batteries (2 pcs)
• Coupling agent (1 pc)
• USB cable (1 pc)
