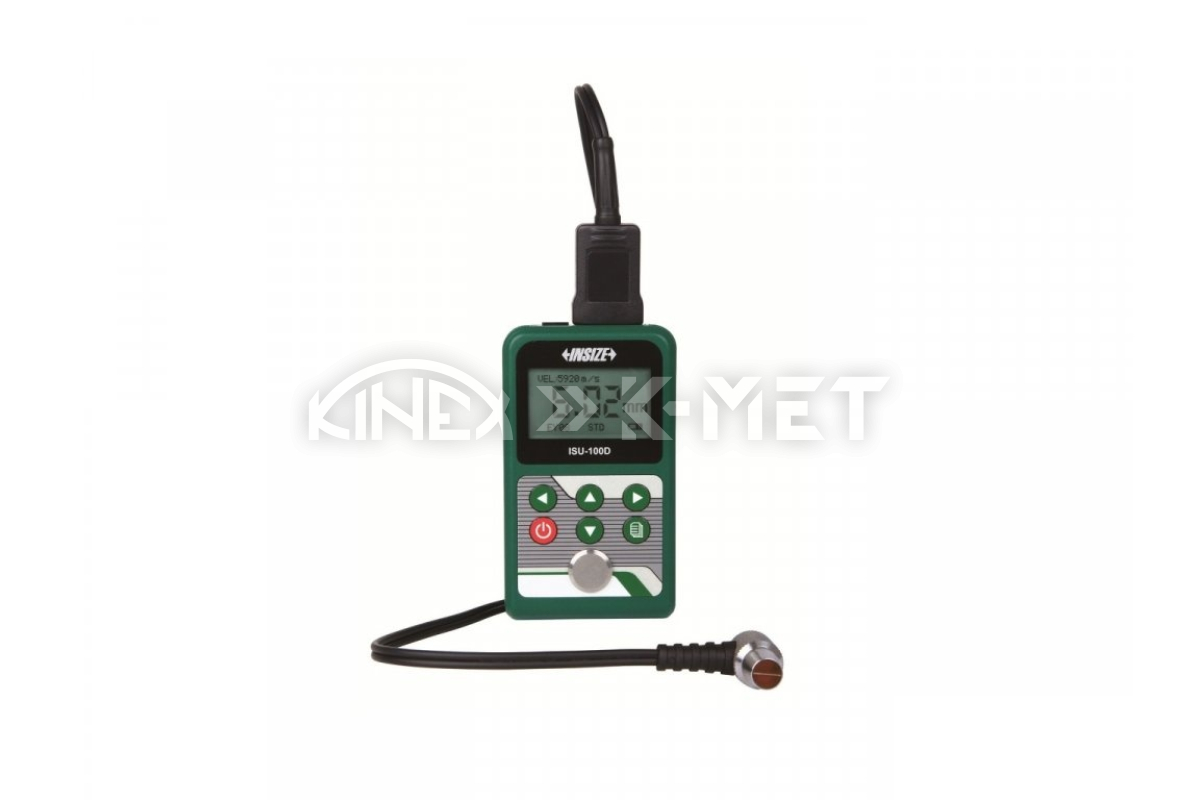

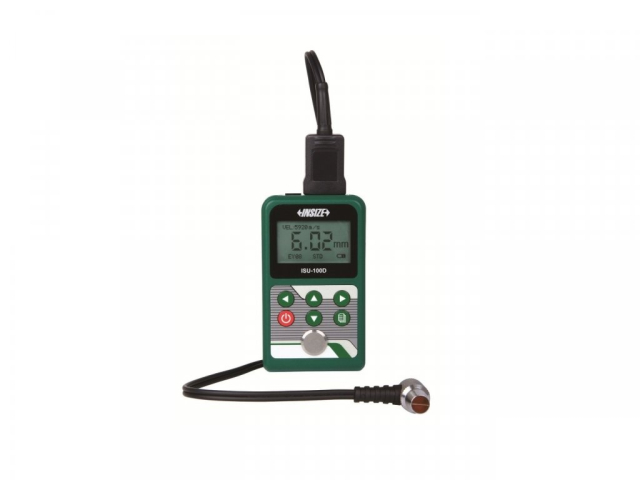

Ultrasonic wall thickness gauge ISU-100D INSIZE (ISU-100D)
- Brand: INSIZE
- Product Code: INISU-100D
- EAN: 6928640377495
- Weight: 1,58 kg
- Availability: On request
For more information on delivery: info@k-met.com
-
Standard price: 393.00 EUR
Inc. Tax: 483.39 EUR
Basic ultrasonic thickness gauge from INSIZE with a backlit display, measuring range of 0.8-300 mm, and resolution of 0.01 mm. Measures the thickness of metals, plastics, glass, and more.
- Measures thickness from one side of objects (usable on pipes, tanks, etc.)
- Applicable to metals, plastic, glass, nylon, resin, ceramics, and ice

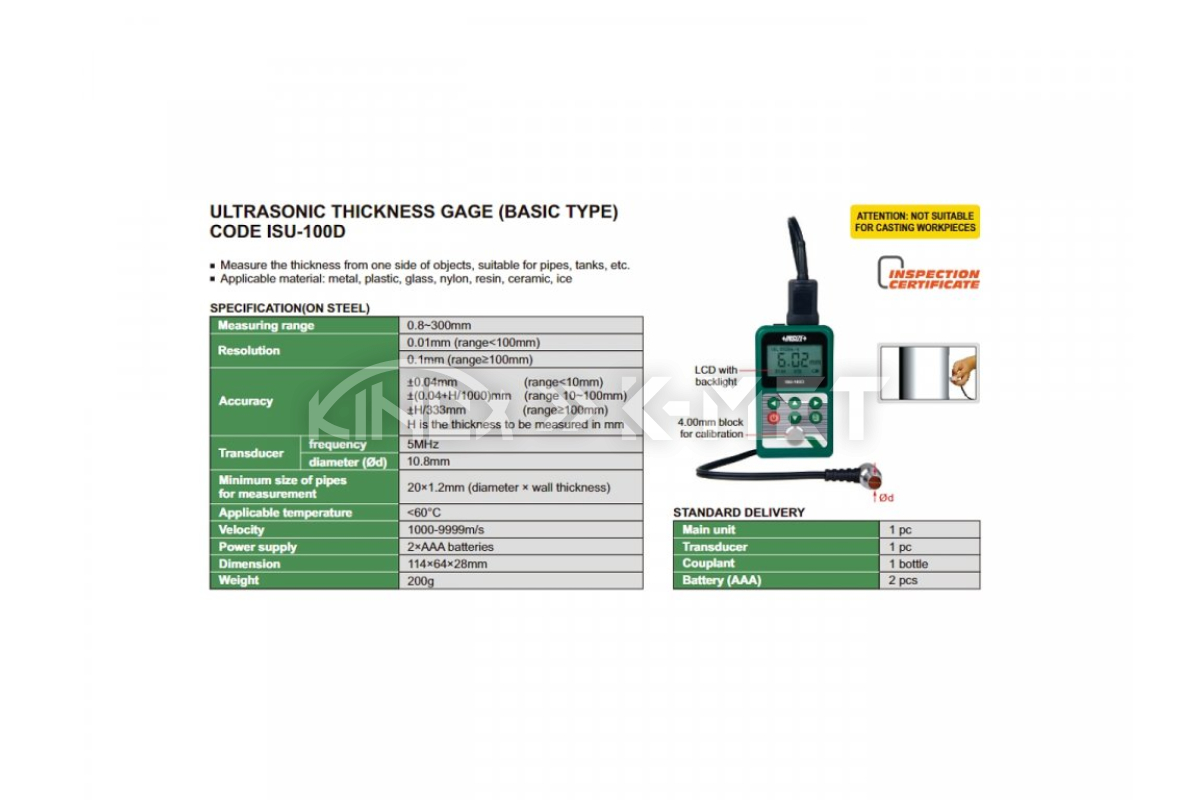

Technical Specification
Measuring Range
- 0.8-300 mm
Resolution
- 0.01 mm (<100 mm)
- 0.1 mm (>100 mm)
Accuracy
- +- 0.04 mm (<10 mm)
- +-(0.04+H/1000)mm (10-100 mm)
- +-H/333 mm (range equal to or greater than 100 mm)
- (H is the measured thickness in mm)
Probe / Transducer
- Frequency
- 5 MHz
- Diameter
- 10.8 mm
Minimum measurable pipe dimension
- 20x1.2 mm (diameter x wall thickness)
Applicable temperature
- <60°C
Velocity
- 1000-9999 m/s
Power Supply
- 2x AAA batteries
Package Contents
- Ultrasonic wall thickness gauge INSIZE ISU-100D
- Probe / Transducer
- Coupling gel
- AAA batteries (2x)
